homebuildy.com Strap ties offer greater flexibility for connecting larger or irregularly shaped structural components compared to mending plates, which are typically flat and designed for smaller joints. While mending plates provide straightforward reinforcement for splits or cracks in wood, strap ties ensure enhanced stability by wrapping around and securing joints under high stress. Choosing between strap ties and mending plates depends on the specific structural demands, with strap ties preferred for heavy-duty lateral support and mending plates suited for simple repairs.
Table of Comparison
| Feature | Strap Tie | Mending Plate |
|---|---|---|
| Purpose | Connects and reinforces wood framing at corners and joints | Repairs and strengthens damaged or weak wood sections |
| Design | Flat, elongated metal strip with holes for nails or screws | Flat metal plate, often rectangular, with multiple fastening holes |
| Common Use | Securing wall studs, rafters, and beams | Fixing splits, cracks, and breaks in wooden members |
| Material | Galvanized steel for corrosion resistance | Galvanized or stainless steel depending on application |
| Strength | High tensile strength to resist lateral forces | Moderate strength focused on repair, not heavy loads |
| Installation | Fastened with nails or structural screws along the length | Fastened with screws or bolts over damaged wood area |
Overview: Strap Tie vs Mending Plate
Strap ties and mending plates are essential metal connectors used in structural framing for reinforcement and repair, with strap ties typically providing tensile strength across joints and mending plates offering rigid support primarily for surface connections. Strap ties are long, narrow metal strips designed to resist tension forces in wood framing, making them ideal for securing studs or joists, while mending plates are flat, rectangular steel pieces used to join or strengthen broken or split framing members by bolting or nailing across the break. Choosing between a strap tie and a mending plate depends on the specific structural requirements, with strap ties favored for holding components together under tension and mending plates preferred for stabilizing and resurfacing damaged wood elements.
Structural Applications of Strap Ties
Strap ties provide robust lateral support in structural applications by securely connecting wood framing members, thereby enhancing overall stability against shear forces. Unlike mending plates, which primarily reinforce joints and seams, strap ties distribute loads over a larger surface area, improving resistance to uplift and lateral stresses in roof and wall assemblies. Their versatility in accommodating varied angles and loads makes strap ties essential for seismic and wind-resistant construction designs.
Common Uses for Mending Plates
Mending plates are commonly used for reinforcing and repairing wood joints in furniture, frames, and structural components, providing strong, flat support across seams. They are ideal for fixing splits, cracks, and damaged corners where additional surface area is needed to distribute load evenly. Unlike strap ties, which typically provide narrow, linear reinforcement along edges or beams, mending plates offer broad, rigid stabilization suitable for flat, surface-level repairs.
Material Composition: Strap Tie and Mending Plate Comparison
Strap ties are typically made from galvanized steel or stainless steel, ensuring high corrosion resistance and tensile strength for structural reinforcement. Mending plates, often fabricated from similar metals but sometimes thinner, prioritize ease of installation and flexibility for repairing joints. Both materials offer durability, but strap ties provide enhanced load-bearing capacity due to thicker gauge steel compared to standard mending plates.
Load-Bearing Capabilities
Strap ties provide superior load-bearing capabilities compared to mending plates due to their continuous length and ability to distribute forces evenly across wood members. Unlike mending plates, which concentrate stress at discrete points, strap ties enhance structural integrity by anchoring multiple points along framing connections. This makes strap ties ideal for resisting lateral loads and improving overall building stability.
Installation Methods and Ease
Strap ties install by spanning the joint with through-bolts or screws, providing strong lateral support, while mending plates require flush mounting with multiple screws or nails along the edges for reinforcement. The ease of installation varies as strap ties often need pre-drilling and precise alignment to ensure proper tension, whereas mending plates are generally quicker to attach but might offer less structural rigidity. Understanding the specific application and load requirements guides the optimal choice between the more straightforward mending plate installation and the robust, albeit more involved, strap tie method.
Cost Analysis: Strap Tie vs Mending Plate
Strap ties generally offer a more cost-effective solution compared to mending plates due to lower material and installation expenses, making them ideal for budget-conscious projects. Mending plates, while sometimes more expensive upfront, provide enhanced structural reinforcement for heavy-duty repairs or framing connections. Evaluating project requirements and load demands ensures the most economical choice between strap ties and mending plates without compromising safety and durability.
Choosing the Right Connector for Your Project
Strap ties provide superior lateral support and are ideal for reinforcing joints in timber framing, preventing racking and shifting in structural connections. Mending plates are best suited for simple repairs or joining flat surfaces, offering ease of installation but less resistance to shear forces compared to strap ties. Selecting the right connector depends on the load requirements and the type of joint, with strap ties favored for heavy-duty, load-bearing connections and mending plates appropriate for lightweight repairs and non-structural applications.
Durability and Longevity Considerations
Strap ties offer enhanced durability and longevity compared to mending plates due to their continuous metal design that evenly distributes stress along the connection. Made from heavy-gauge steel with corrosion-resistant coatings, strap ties maintain structural integrity in harsh environmental conditions better than typical mending plates. Mending plates, often thinner and localized in their support, may weaken over time under dynamic loads, making strap ties a superior choice for long-term strength and stability in construction applications.
Industry Standards and Building Code Compliance
Strap ties and mending plates are both essential for structural reinforcement, yet strap ties typically meet stricter industry standards and building code compliance due to their enhanced load-bearing capacity and corrosion resistance. Building codes often specify the use of strap ties in critical areas such as shear walls and roof-to-wall connections, emphasizing their tested performance under seismic and wind loads. Mending plates, while useful for minor repairs, generally lack the required certification for primary structural fastening and are less favored in code-mandated applications.

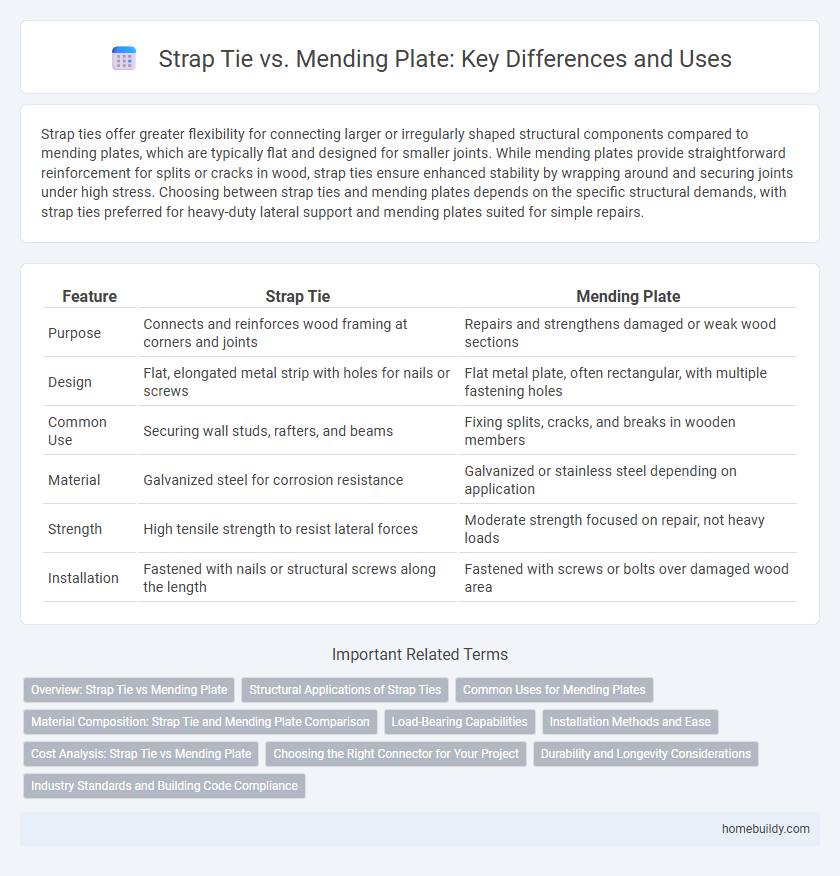

Strap tie vs mending plate Infographic
