homebuildy.com A strap tie is a flexible connector used to secure framing members and distribute lateral loads, commonly applied in wood framing to resist uplift and provide bracing. In contrast, a shear wall strap is specifically designed to reinforce shear walls, offering greater rigidity and capacity to resist lateral forces caused by wind or seismic activity. Choosing between a strap tie and a shear wall strap depends on the structural requirements, load conditions, and the type of framing system used in the construction.
Table of Comparison
| Feature | Strap Tie | Shear Wall Strap |
|---|---|---|
| Purpose | Connect and reinforce structural members, prevent uplift | Enhance shear resistance in shear walls |
| Material | Steel, galvanized or stainless | Steel, often heavier gauge |
| Application | Roof to wall, floor to wall connections | Within shear wall assemblies for lateral load resistance |
| Load Type | Tension, uplift loads | Shear loads, lateral forces |
| Installation | Surface-mounted with nails or screws | Embedded or surface-mounted within wall framing |
| Code Reference | IBC, IRC, ASCE standards | IBC, AWC, ASCE guidelines |
Understanding Strap Ties and Shear Wall Straps
Strap ties are metal connectors primarily designed to join framing members and resist tension forces in wood structures, while shear wall straps are specialized hardware components engineered to reinforce shear walls by anchoring them to the foundation and distributing lateral loads. Both play critical roles in structural integrity, but strap ties focus on holding framing elements together whereas shear wall straps enhance the wall's resistance to wind and seismic forces. Proper installation and correct specification of each ensure optimal performance in preventing structural failure under various stress conditions.
Key Differences Between Strap Ties and Shear Wall Straps
Strap ties are metal connectors designed primarily to secure structural components together, enhancing the overall stability of framing systems, while shear wall straps specifically reinforce shear walls to resist lateral forces such as wind or seismic loads. Strap ties typically provide tension resistance along beams or joists, whereas shear wall straps are embedded or anchored to transfer shear loads from walls to foundations. The key difference lies in their function and placement: strap ties focus on general structural connection, and shear wall straps provide targeted lateral load reinforcement within shear wall assemblies.
Primary Functions of Strap Tie Connectors
Strap tie connectors primarily provide tension resistance by securely linking wood framing members, enhancing structural integrity against uplift and lateral forces. Unlike shear wall straps designed to transfer shear loads across wall assemblies, strap ties focus on load distribution between joists, rafters, and studs to prevent separation during seismic or wind events. Their role is critical in reinforcing connections where flexibility and tensile strength are required rather than rigid shear load transfer.
Shear Wall Straps: Purpose and Applications
Shear wall straps reinforce structural frames by connecting shear walls to floors or roofs, enhancing lateral load resistance and preventing displacement during seismic or wind events. These straps distribute forces evenly across the structure, increasing stability and minimizing damage in high-stress zones. Commonly used in residential and commercial buildings, shear wall straps are critical components for meeting building codes related to earthquake and hurricane resilience.
Material Composition: Comparing Strap Ties and Shear Wall Straps
Strap ties are typically made from galvanized steel, offering high tensile strength and corrosion resistance for securing wood framing members. Shear wall straps also use galvanized steel but often feature enhanced thickness and coating to withstand greater lateral forces experienced in shear wall applications. The material composition differences directly influence their performance, with shear wall straps engineered for superior durability and load-bearing capacity in structural reinforcement.
Structural Performance: Strap Tie vs Shear Wall Strap
Strap ties and shear wall straps both enhance structural stability but serve distinct roles in load distribution and reinforcement. Strap ties primarily resist tension forces and connect framing members, preventing separation during lateral loads, while shear wall straps focus on transferring shear forces from the wall to the foundation. Understanding their specific load-bearing capacities ensures optimal application in structural systems for improved seismic and wind resistance.
Installation Techniques for Strap Ties and Shear Wall Straps
Strap ties are installed by fastening them directly to framing members, typically using nails or screws, ensuring a tight connection between studs and plates to resist uplift forces. Shear wall straps require precise alignment along the shear wall panels and are secured with structural fasteners at specified intervals to effectively transfer lateral loads. Proper installation techniques for both involve adherence to manufacturer guidelines and building codes to maximize structural integrity and performance.
Cost Considerations: Strap Tie vs Shear Wall Strap
Strap ties typically offer a more cost-effective solution compared to shear wall straps due to simpler materials and installation processes. Shear wall straps require heavier gauge steel and precise placement to meet structural codes, resulting in higher labor and material expenses. Budget-conscious projects often prefer strap ties for their balance of strength and affordability in securing framing components.
Building Code Requirements and Compliance
Strap ties and shear wall straps differ significantly in their roles and compliance under the International Building Code (IBC). Strap ties secure connections between framing members, enhancing tension resistance, whereas shear wall straps are specifically designed to transfer lateral loads, ensuring shear wall stability. Compliance requires that strap ties meet specific load ratings and installation guidelines per IBC Section 2308, while shear wall straps must adhere to detailed shear transfer requirements outlined in Sections 2304 and 2305 for seismic and wind load resistance.
Choosing the Right Solution: Strap Tie or Shear Wall Strap?
Strap ties provide flexible reinforcement for connecting framing members, ideal for preventing uplift and lateral movement in light framing applications. Shear wall straps are designed to enhance the lateral load resistance of shear walls, offering superior strength for high wind or seismic zones. Selecting the right solution depends on the structural requirements, load demands, and building codes governing lateral force resistance.

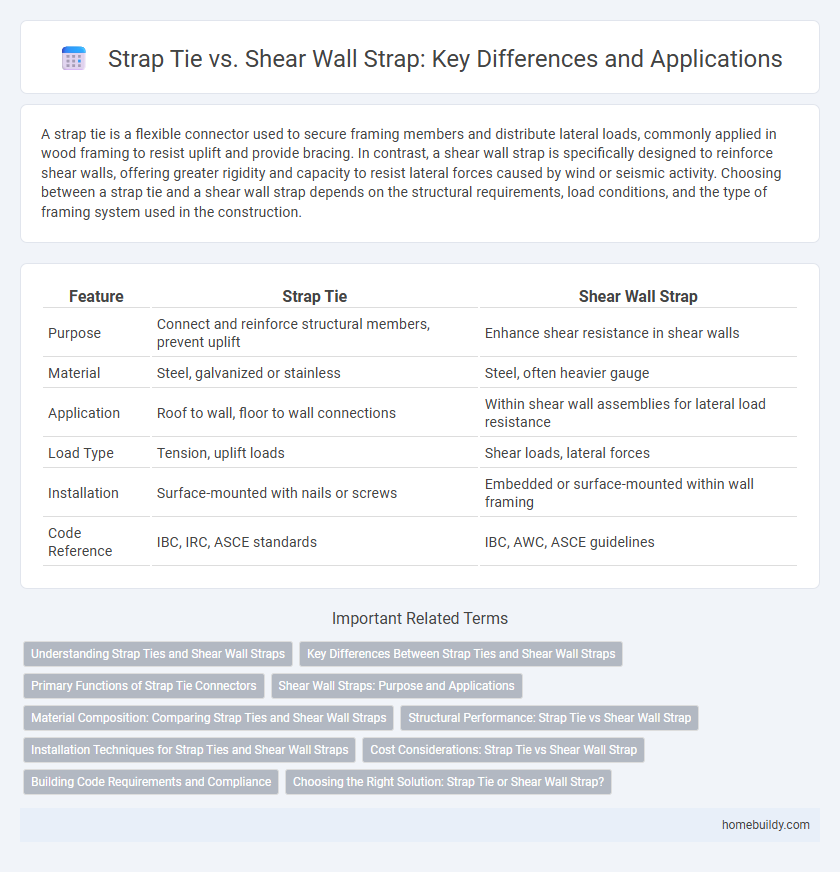

Strap tie vs shear wall strap Infographic
