homebuildy.com Strap ties provide versatile reinforcement by securing wood framing members to resist tension forces, while beam straps are specifically designed to anchor beams to posts, offering concentrated support at critical load points. Strap ties are typically flatter and flexible, allowing easy wrapping around various framing elements, whereas beam straps are more rigid and robust to withstand heavier loads and structural stresses. Choosing between strap ties and beam straps depends on the specific application requirements for stability, load distribution, and ease of installation in construction framing.
Table of Comparison
| Feature | Strap Tie | Beam Strap |
|---|---|---|
| Primary Use | Connects wood framing members, resisting tension | Secures beams to supports, preventing uplift |
| Material | Galvanized steel | Galvanized or stainless steel |
| Shape | Flat, narrow strap with pre-punched holes | Flat or angled strap designed for beam edge |
| Installation | Fastened with nails or screws along the wood members | Mounted to beam and supporting post with bolts or nails |
| Load Resistance | Resists lateral and tension forces | Resists uplift and downward forces on beams |
| Typical Applications | Wall framing, roof trusses, joist reinforcement | Beam-to-post connections, deck framing |
| Cost | Generally lower | Typically higher due to thickness and size |
Introduction to Strap Ties and Beam Straps
Strap ties consist of flexible, flat metal strips designed to reinforce and connect framing components, providing lateral stability in construction. Beam straps, a specific type of strap tie, are thicker and more rigid, primarily used to secure heavy beams and resist uplift forces in structural assemblies. Both components play critical roles in enhancing the strength and durability of wood framing systems, with strap ties offering versatility and beam straps providing targeted support for load-bearing elements.
Key Differences Between Strap Ties and Beam Straps
Strap ties and beam straps both secure structural components but differ in application and design; strap ties are flat metal connectors primarily used to reinforce joints between wood framing members, while beam straps wrap fully or partially around beams to provide enhanced load distribution and resistance to lateral forces. Strap ties are typically thinner and lighter, optimized for tension, whereas beam straps are heavier gauge for higher structural loads and shear resistance. Understanding these differences is crucial for selecting the appropriate connector based on load requirements, installation context, and structural code compliance.
Structural Applications of Strap Ties
Strap ties provide flexible connections for structural framing by securing joists and beams against uplift and lateral forces, ensuring stability in wood or metal frameworks. Beam straps, designed specifically for heavy load-bearing beams, enhance structural integrity by distributing stresses evenly and preventing beam rotation or displacement under load. Choosing between strap ties and beam straps depends on load requirements and the type of connection needed in construction projects.
Structural Applications of Beam Straps
Beam straps provide critical reinforcement by securely connecting structural components, enhancing load distribution and resistance to lateral forces. Unlike strap ties, which primarily prevent uplift, beam straps are engineered to stabilize beams in framing systems, ensuring structural integrity under dynamic and seismic loads. Their design and placement within wood or steel frameworks optimize strength transfer across beam-to-post or beam-to-beam junctions.
Material Composition: Strap Tie vs Beam Strap
Strap ties are typically made from galvanized steel with high tensile strength for securing wall studs, while beam straps often utilize heavier gauge steel designed to support greater loads in structural connections. The galvanized coating on strap ties provides corrosion resistance suitable for interior framing, whereas beam straps may have thicker or zinc-coated finishes for enhanced durability in exterior or high-moisture environments. Material composition differences impact load capacity and environmental resistance, making beam straps preferable for critical load-bearing applications compared to standard strap ties.
Installation Methods for Strap Ties and Beam Straps
Strap ties are installed by fastening them directly across framing members with nails or screws, ensuring a tight, secure connection that resists uplift and lateral forces. Beam straps typically require wrapping around the beam and securing to adjacent structures using lag bolts or structural screws, providing enhanced load distribution and stability. Proper alignment and adherence to manufacturer specifications are critical for both strap ties and beam straps to maximize structural integrity and safety.
Strength and Load Distribution Comparison
Strap ties provide high tensile strength, ideal for resisting uplift and lateral forces, while beam straps excel in distributing loads evenly across wider surfaces, reducing stress concentration points. Strap ties are typically designed for point-specific reinforcement, offering superior connection strength in critical areas, whereas beam straps enhance overall structural stability by spreading load over larger beam sections. Selecting between strap ties and beam straps depends on whether focused strength or balanced load distribution is prioritized in structural design.
Cost Efficiency: Strap Tie vs Beam Strap
Strap ties are generally more cost-efficient than beam straps due to their simpler design and easier installation process, reducing labor expenses on construction sites. Beam straps, while providing enhanced structural support, often involve higher material costs and longer installation times, impacting overall project budgets. Choosing strap ties can optimize budget allocation in residential framing without significantly compromising structural integrity.
Choosing the Right Connector for Your Project
Strap ties and beam straps both provide essential structural support, but selecting the right connector depends on your project's load requirements and installation context. Strap ties are ideal for reinforcing wall studs and joists where lateral stability is crucial, while beam straps are better suited for securing beams and preventing uplift under heavy loads. Evaluating factors such as material thickness, span length, and environmental conditions ensures optimal performance and code compliance.
Industry Standards and Compliance for Strap Ties and Beam Straps
Strap ties and beam straps must adhere to ASTM standards such as ASTM A653 for coating and ASTM D695 for tensile strength to ensure structural integrity and safety in construction. Compliance with International Building Code (IBC) provisions guarantees that both strap ties and beam straps provide adequate load resistance and corrosion protection. Using products certified by recognized bodies like ICC-ES enhances reliability and meets industry expectations for seismic and wind load conditions.

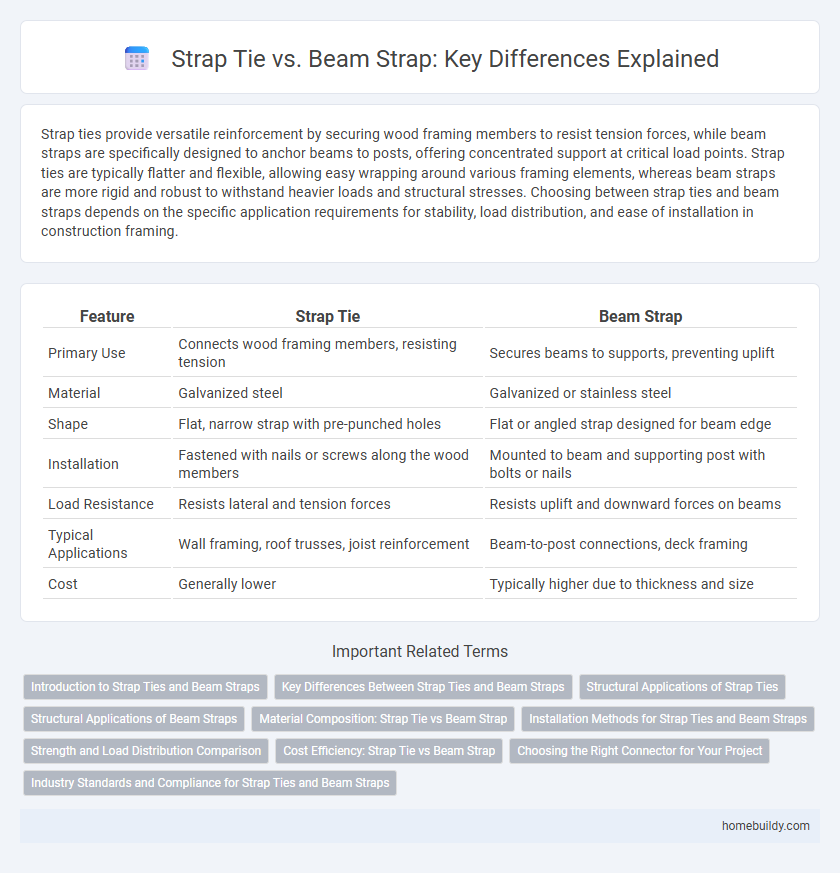

Strap tie vs beam strap Infographic
