homebuildy.com Strap ties provide flexible and adjustable connections between structural elements, allowing for easier modifications and repairs compared to nail plates. Unlike nail plates that offer rigid fastening, strap ties distribute load more evenly, reducing the risk of splits and damage to wood framing. Their corrosion-resistant materials ensure durability in outdoor and high-moisture environments, making strap ties ideal for long-term structural integrity.
Table of Comparison
| Feature | Strap Tie | Nail Plate |
|---|---|---|
| Material | Galvanized steel strap | Galvanized steel plate with nails |
| Primary Use | Connecting wood framing members | Reinforcing wood joints and trusses |
| Installation | Secured with nails or screws along length | Pressed or nailed into wood surface |
| Load Capacity | High resistance to tension, uplift, and shear | Strong lateral and shear reinforcement |
| Flexibility | Flexible in shape for wrapping corners | Rigid flat design |
| Typical Applications | Roof framing, wall bracing, floor joist ties | Truss plate connections, beam reinforcements |
| Cost | Generally lower cost | Typically higher cost |
| Code Compliance | Meets building codes for structural ties | Meets building codes for reinforcement plates |
Introduction to Strap Ties and Nail Plates
Strap ties and nail plates are essential metal connectors used in framing to reinforce joints and enhance structural integrity. Strap ties are long, flat metal strips with pre-punched holes, ideal for securing beams, joists, and trusses by wrapping around or fastening surfaces. Nail plates are flat, perforated sheets primarily used to join wooden members at specific points, providing concentrated strength at critical connection points like truss gussets or damaged wood repairs.
Key Differences Between Strap Ties and Nail Plates
Strap ties are metal connectors designed to provide linear reinforcement along joints, commonly used for securing trusses and beams in framing applications. Nail plates, often flat and perforated with multiple nails, serve to fasten or splice wood members together by distributing load across a broader surface area. Key differences lie in their application: strap ties offer superior tensile strength and resistance to uplift forces, while nail plates excel in shear load distribution and are typically embedded within wood for concealed reinforcement.
Structural Applications: Strap Tie vs Nail Plate
Strap ties provide superior tensile strength and flexibility in structural applications, effectively resisting uplift and lateral forces in wood framing connections. Nail plates offer quick installation and strong shear resistance but lack the adaptability of strap ties when accommodating complex load paths or irregular connections. Structural engineers often prefer strap ties for critical load-bearing joints requiring enhanced durability and corrosion resistance.
Material Composition and Durability Comparison
Strap ties are typically crafted from galvanized steel or stainless steel, providing high corrosion resistance and flexibility, making them ideal for securing connections in wood framing. Nail plates, usually made from stamped galvanized steel, offer a rigid, flat structure but may be more prone to bending or damage under heavy loads compared to strap ties. The durability of strap ties generally surpasses nail plates in environments exposed to moisture or shifting loads due to their malleable yet strong material composition.
Installation Methods: Strap Tie vs Nail Plate
Strap ties are installed by fastening metal straps with nails or screws to connect wood framing members, providing flexibility in positioning and reinforcing corners, edges, and joints. Nail plates require pressing or hammering thin metal plates with multiple pre-set nails directly onto wood surfaces, often needing specialized tools or hydraulic press for secure attachment. Compared to nail plates, strap ties allow easier field adjustments and quicker installation without specialized equipment.
Load-Bearing Capacities Explained
Strap ties and nail plates serve different structural purposes, with strap ties offering superior load-bearing capacities by effectively resisting tension and uplift forces in wood framing. Unlike nail plates, which primarily connect wood members at joints to prevent shear, strap ties distribute loads along the length of the timber, enhancing overall stability in high-stress applications. Engineers often specify strap ties in critical regions where enhanced tensile strength and load transfer are essential for structural integrity.
Cost Comparison of Strap Ties and Nail Plates
Strap ties typically offer a more cost-effective solution compared to nail plates, especially in large-scale construction projects due to their lower material and installation expenses. Nail plates require precise alignment and often specialized tools, increasing labor costs, whereas strap ties provide flexibility and quicker application, reducing overall project time. When evaluating budgets, strap ties generally present a better price-performance ratio for structural reinforcement in wood framing.
Common Building Codes and Standards
Strap ties and nail plates both comply with major building codes such as the International Residential Code (IRC) and the International Building Code (IBC), which specify their use to enhance structural connections in framing. Strap ties are often preferred for their superior tensile strength and corrosion resistance, meeting ASTM A153 standards for galvanized steel, while nail plates must conform to ASTM F1667 for fasteners. Understanding code compliance ensures appropriate application of strap ties or nail plates to maintain structural integrity and safety in residential and commercial construction.
Pros and Cons: Strap Tie vs Nail Plate
Strap ties offer greater flexibility for securing irregular or uneven framing members, making them ideal for retrofit projects and complex connections. Nail plates provide strong, consistent fastening for flat or standard framing but may be less adaptable to varied angles and surfaces. Choosing between strap ties and nail plates depends on project specifics such as load requirements, installation speed, and material compatibility.
Choosing the Right Connector for Your Project
Strap ties provide flexible, adjustable connections ideal for securing wooden structures where alignment variations occur, while nail plates offer rigid, fixed reinforcement suited for precise joint locations. Selecting between a strap tie and a nail plate depends on project requirements such as load capacity, installation ease, and structural design. Understanding the specific application ensures optimal performance and safety in wood framing or truss construction.

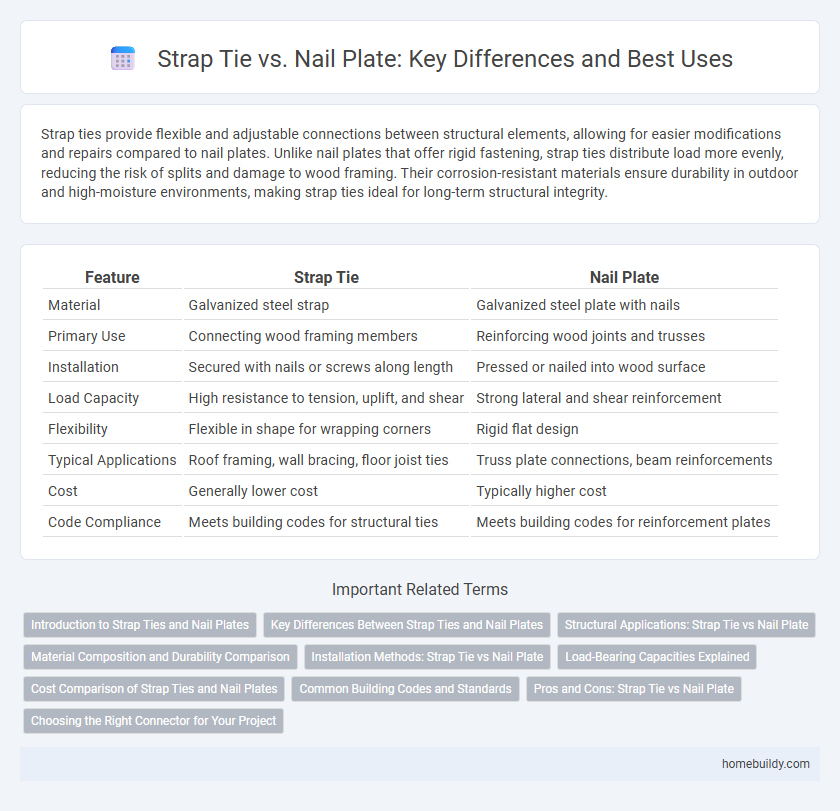

strap tie vs nail plate Infographic
