homebuildy.com Strap ties and joist hangers both provide structural support but serve different purposes in framing applications. Strap ties are flat metal connectors used to secure wood members together along their length, enhancing lateral stability and resistance to uplift forces, while joist hangers cradle and support the end of a joist, transferring loads to beams or walls. Choosing between strap ties and joist hangers depends on the specific connection requirements and load conditions of the construction project.
Table of Comparison
| Feature | Strap Tie | Joist Hanger |
|---|---|---|
| Purpose | Secures wood members, prevents uplift and lateral movement | Supports joists by cradling ends on beams or ledgers |
| Material | Galvanized steel or stainless steel strap | Galvanized steel bracket |
| Installation | Wrapped around or flat-fastened to wood members | Fastened to beam and joist ends with nails or screws |
| Load Type | Resists uplift, tension, and lateral loads | Supports vertical loads, prevents joist rotation |
| Appearance | Flat strap, less visible but may wrap around members | Visible metal bracket visibly supporting joists |
| Common Uses | Roof framing, wall construction, seismic reinforcement | Decks, floor framing, structural joist support |
Introduction to Strap Ties and Joist Hangers
Strap ties and joist hangers are essential metal connectors used in wood construction to enhance structural stability. Strap ties provide lateral support by securing framing members across surfaces, while joist hangers are specifically designed to support and anchor joists to beams or ledgers. Both connectors are typically made from galvanized steel to resist corrosion and ensure long-term performance in building frameworks.
Strap Ties: Function and Applications
Strap ties provide superior lateral support by securely fastening wood framing members in various construction applications, ensuring enhanced structural integrity. Unlike joist hangers, which primarily support joists by bearing vertical loads, strap ties resist tensile and shear forces, preventing joint separation during seismic activity or high winds. Their versatility allows for reinforcement of corners, studs, and rafters, making them ideal for both new builds and retrofit projects.
Joist Hangers: Purpose and Common Uses
Joist hangers are metal connectors designed to securely anchor joists to beams or ledgers, providing structural support in wood framing. Commonly used in decks, floors, and ceilings, joist hangers help distribute loads evenly and prevent joist movement or twisting. Unlike strap ties, which bind or reinforce framing members, joist hangers specifically ensure perpendicular alignment and stability of joists in construction projects.
Material and Design Differences
Strap ties are typically made from flat, flexible galvanized steel designed to wrap around beams or trusses, providing versatile reinforcement in various construction applications. Joist hangers, constructed from thicker galvanized steel with a U-shaped design, offer rigid support by cradling joists and distributing loads to the supporting structure. The material thickness and shape differences enable strap ties to excel in tension and hold multiple framing members, while joist hangers focus on load-bearing stability and shear resistance.
Load-Bearing Capabilities: Strap Tie vs Joist Hanger
Strap ties distribute load across a broader area of the structural member, providing enhanced resistance to tension and uplift forces compared to joist hangers, which primarily support vertical loads concentrated at the connection point. Joist hangers are ideal for supporting joists in floor and deck framing but may require supplemental reinforcement for high-tension applications. Engineers recommend strap ties for heavy load-bearing applications requiring greater lateral stability and enhanced structural integrity.
Installation Processes Compared
Strap ties require less precise alignment during installation compared to joist hangers, as they wrap around structural members, reducing the need for exact cuts or placements. Joist hangers demand careful nailing into pre-cut joints, which can be time-consuming and requires precise measurements to ensure secure support. The simplicity of strap tie installation often results in faster assembly times and fewer adjustments on site.
Cost and Availability Analysis
Strap ties generally offer a more cost-effective solution compared to joist hangers due to lower material and installation expenses, making them a budget-friendly option for many construction projects. Availability favors strap ties as they are widely distributed by various suppliers and easy to source in bulk, whereas joist hangers may be limited to specialized retailers and higher price points. The simplicity of strap ties reduces labor time, further enhancing cost efficiency without compromising structural integrity.
Best Use Cases for Strap Ties
Strap ties excel in applications requiring a strong, flexible connection between wood members where multiple-sided attachment is necessary, such as securing roof trusses or bracing wall studs. They provide superior resistance to uplift and lateral forces compared to joist hangers, making them ideal for seismic or high-wind regions. Their ability to wrap around corners and irregular shapes offers versatility unmatched by joist hangers, which are best suited for simple, perpendicular joist-to-beam connections.
Optimal Scenarios for Joist Hangers
Joist hangers provide superior load-bearing capacity and are ideal for heavy timber framing and areas requiring rigid structural connections. They excel in scenarios where precise alignment and shear force resistance are critical, such as deck construction and floor framing. Unlike strap ties, joist hangers offer enhanced support for perpendicular connections, ensuring long-term stability in high-stress environments.
Choosing Between Strap Tie and Joist Hanger: Key Considerations
Strap ties provide flexibility for connecting irregular framing angles, while joist hangers offer superior support for standard, perpendicular joist-to-beam connections. When choosing between strap ties and joist hangers, prioritize load requirements, installation ease, and environmental conditions such as exposure to moisture. Strap ties are ideal for reinforcing corners and splices, whereas joist hangers excel in distributing vertical loads evenly across structural members.

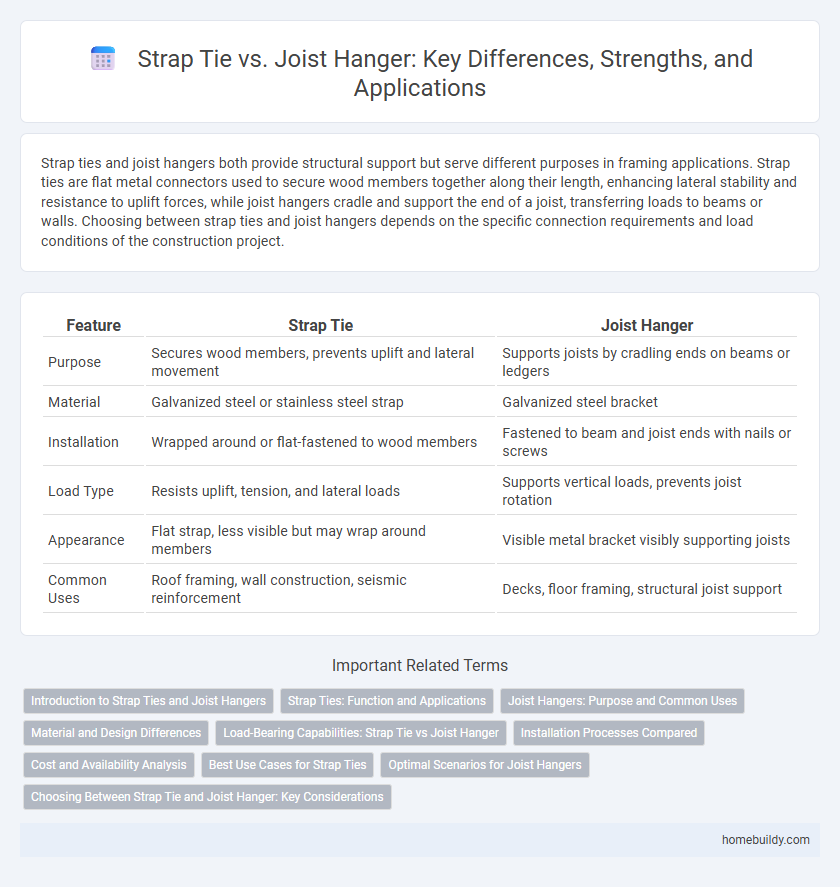

strap tie vs joist hanger Infographic
