homebuildy.com A sill plate is the bottom horizontal member of a wall frame that anchors the structure to the foundation, while a double plate refers to two horizontal framing members placed at the top of a wall to tie the studs together and provide structural stability. The sill plate is usually treated lumber to resist moisture and decay as it contacts the foundation, whereas double plates are standard framing lumber that reinforce the wall's top edge and support the roof load. Understanding the distinct roles of sill plates and double plates is essential for proper framing, ensuring both a secure foundation connection and robust wall construction.
Table of Comparison
| Feature | Sill Plate | Double Plate |
|---|---|---|
| Definition | The bottom horizontal wood member anchoring the wall frame to the foundation. | Two stacked horizontal wood members at the top of a wall frame for added strength. |
| Location | Between foundation and wall studs. | Top of wall studs, below ceiling or roof structure. |
| Function | Secures wall to foundation; distributes load evenly. | Provides structural support; ties walls together; resists lateral forces. |
| Material | Treated lumber to resist moisture and decay. | Standard lumber, typically 2x4 or 2x6. |
| Installation | Anchored to concrete with bolts or straps. | Stacked and nailed at wall top plates. |
| Key Benefit | Foundation-to-wall stability and moisture resistance. | Enhanced wall rigidity and improved load distribution. |
Introduction to Sill Plates and Double Plates
Sill plates are the bottom horizontal members of a wall frame that anchor the structure to the foundation, typically made of pressure-treated lumber to resist moisture and decay. Double plates, positioned at the top of wall frames, consist of two horizontal boards stacked to provide structural support and tie the framing elements together, enhancing the wall's stability. Both components are essential in timber framing, with sill plates providing a secure base and double plates reinforcing the wall's upper section.
Definition and Function of Sill Plates
A sill plate is a horizontal timber anchored to the foundation that serves as the base for wall framing, providing structural support and stability. Unlike double plates, which are horizontal framing members placed at the top of a wall to tie wall studs together, sill plates anchor the wall to the foundation and distribute loads to the structure below. Sill plates must be treated or made of rot-resistant material to prevent moisture damage and ensure a durable connection between the foundation and framing.
Definition and Function of Double Plates
Double plates consist of two horizontal framing members stacked atop one another and placed along the top of wall studs, providing enhanced structural stability and load distribution compared to a single sill plate. While the sill plate anchors the wall to the foundation and transfers loads to the ground, double plates support roof or floor framing above, ensuring wall alignment and preventing racking. Their function includes tying walls together at the corners and accommodating nailing for upper framing components in wood-frame construction.
Key Differences Between Sill Plate and Double Plate
A sill plate is the horizontal wooden member anchored to the foundation that serves as the base for wall framing, while a double plate consists of two layers of horizontal plates located at the top of a wall framing. Key differences include the sill plate's function as a structural anchor transferring loads to the foundation, whereas the double plate provides additional strength and stability at the wall top and helps secure roof and ceiling joists. Material thickness and placement also distinguish them: sill plates are typically pressure-treated lumber to resist moisture, positioned at the bottom, whereas double plates are standard framing lumber placed at the top of wall studs.
Material Choices for Sill Plates vs Double Plates
Sill plates are typically made from treated lumber such as pressure-treated pine or Douglas fir to resist moisture and termite damage at the foundation interface. Double plates, installed at the top of wall framing, commonly use standard dimensional lumber like SPF (spruce-pine-fir) or hem-fir, as they require strength for load distribution but less moisture resistance. Material selection reflects functional needs: sill plates emphasize durability against environmental exposure, while double plates prioritize structural integrity within the framed wall system.
Structural Roles: Sill Plate vs Double Plate
Sill plates serve as the foundational wood members anchoring the building frame to the concrete foundation, providing critical stability against lateral forces and moisture intrusion. Double plates, typically positioned at the top of wall studs, distribute roof and floor loads evenly, enhancing wall strength and alignment. Both structural elements are essential for load transfer, with sill plates managing foundation connection and double plates ensuring vertical load distribution and wall integrity.
Installation Process: Sill Plates Compared to Double Plates
Sill plates are installed directly on the foundation, requiring precise anchoring with bolts or straps to ensure stability and resistance to moisture. Double plates, installed atop wall studs, involve layering two horizontal boards for reinforcement, demanding careful alignment and secure nailing or screwing to maintain structural integrity. The installation process of sill plates emphasizes foundation attachment and moisture barriers, whereas double plates focus on reinforcing the wall framing through layered assembly.
Code Requirements and Building Standards
Sill plates serve as the crucial base fastening between the foundation and wall framing, requiring treated lumber or alternative moisture-resistant materials per IRC code R317.1 to prevent decay. Double plates, often installed atop wall studs, provide structural stability and load distribution but are not specifically mandated by codes like the sill plate. Building standards emphasize proper anchoring of sill plates using anchor bolts spaced a maximum of 6 feet apart, while double plates are guided more by framing practices than stringent code requirements.
Common Issues and Solutions for Sill and Double Plates
Sill plates often face issues like moisture damage and improper anchoring, leading to compromised structural integrity, while double plates commonly encounter misalignment and insufficient nailing, causing weakened wall framing. Solutions for sill plates include using pressure-treated lumber and installing proper sill sealer to prevent rot and enhance stability, whereas double plates benefit from precise nailing patterns and secure splicing techniques to ensure load distribution and wall strength. Regular inspection and maintenance of both sill and double plates are crucial to prevent settling and framing failures in residential construction.
Choosing the Right Plate for Your Construction Project
Sill plates serve as the foundational timber anchoring a structure to the concrete slab, crucial for stability and moisture resistance, while double plates reinforce the wall framing by stacking two horizontal members for added strength and alignment. Selecting the right plate depends on the construction project's load requirements, environmental exposure, and framing design, with sill plates often treated for ground contact and double plates enhancing wall rigidity. Prioritize treated lumber for sill plates to prevent rot and consider double plates in load-bearing walls to ensure structural integrity and resistance to lateral forces.

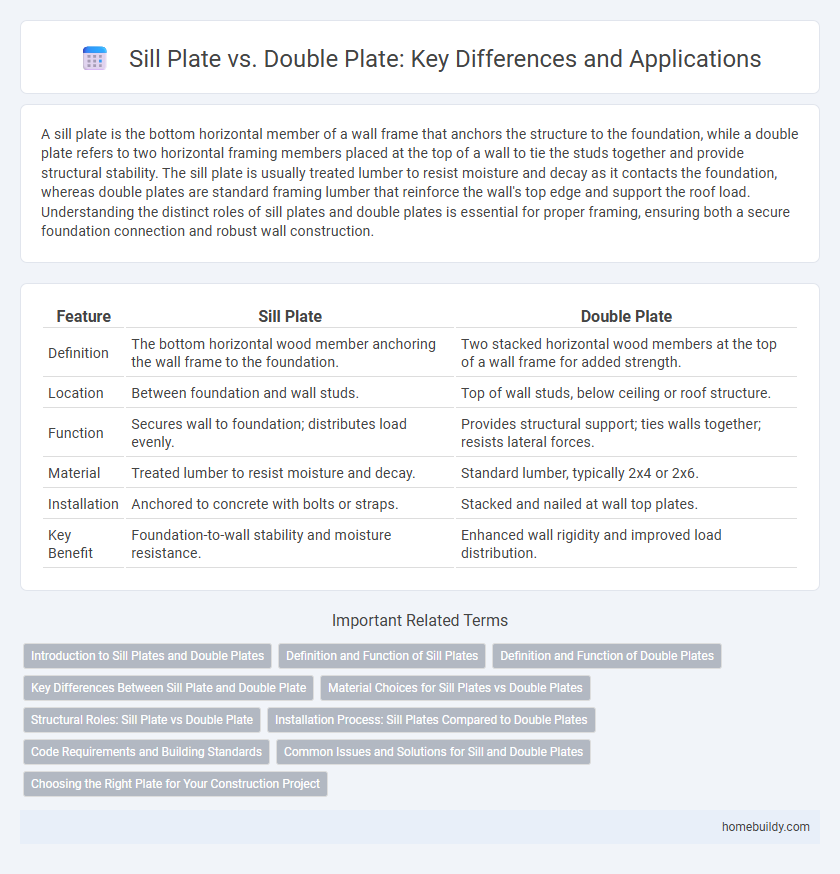

Sill plate vs Double plate Infographic
