homebuildy.com Pipe straps provide secure, flat contact with pipes for stable mounting, ideal for preventing pipe movement against surfaces. U-bolts offer a versatile, clamping solution that wraps around pipes, commonly used for attaching pipes to round surfaces or securing round objects. Both fittings are essential in plumbing and construction, with pipe straps favoring fixed support and U-bolts enabling strong, adjustable fastening.
Table of Comparison
| Feature | Pipe Strap | U-Bolt |
|---|---|---|
| Design | Flat metal strap with holes | U-shaped bolt with threaded ends |
| Primary Use | Secures pipes to flat surfaces | Clamps pipes to round or irregular surfaces |
| Installation | Screwed or nailed onto surface | Bolted with nuts for tight grip |
| Material | Steel, galvanized steel, or stainless steel | Steel, galvanized steel, or stainless steel |
| Applications | Plumbing, electrical conduits, lightweight pipes | Heavy-duty pipe securing, automotive, construction |
| Load Capacity | Moderate load support | High load and vibration resistance |
| Cost | Generally lower cost | Higher due to hardware complexity |
Introduction to Pipe Straps and U-Bolts
Pipe straps and U-bolts serve as essential fasteners for securing pipes and tubing in various construction and plumbing applications. Pipe straps are flat metal bands designed to wrap around pipes and attach securely to surfaces, providing a stable hold with minimal movement. U-bolts feature a U-shaped design with threaded ends that clamp around pipes and fasten with nuts, offering a strong grip suitable for heavier loads and curved surfaces.
Key Differences Between Pipe Straps and U-Bolts
Pipe straps provide a secure and stable mounting solution designed to hold pipes closely against surfaces, ensuring minimal movement and vibration. U-bolts offer a versatile clamping mechanism that wraps around pipes or tubes, allowing for adjustable positioning and firm attachment to structures. The key differences lie in their design and application: pipe straps are typically flat and fixed, ideal for permanent pipe support, while U-bolts are curved and adjustable, suited for versatile and heavy-duty pipe fastening needs.
Material Options: Pipe Strap vs U-Bolt
Pipe straps typically come in materials such as galvanized steel, stainless steel, and plastic, offering corrosion resistance and varying degrees of strength for different pipe applications. U-bolts are commonly made from carbon steel, stainless steel, and sometimes galvanized steel, providing robust clamping force and durability, especially in heavy-duty or outdoor environments. Both pipe straps and U-bolts cater to diverse installation needs, with material choice impacting their suitability for specific conditions like exposure to moisture, temperature fluctuations, and load requirements.
Typical Applications for Pipe Straps
Pipe straps are commonly used in plumbing, electrical conduit installations, and HVAC systems to securely fasten pipes to walls or ceilings, offering a snug fit without damaging the pipe surface. They are preferred in applications requiring quick installation and frequent access for maintenance or adjustments. Unlike U-bolts, which are ideal for heavier loads and structural support, pipe straps excel in environments demanding lightweight, corrosion-resistant, and versatile fastening solutions.
Common Uses of U-Bolts
U-bolts are commonly used for securing pipes, tubing, or conduit to walls, ceilings, and poles, providing a strong and stable hold in various construction and plumbing applications. Their shape and design make them ideal for clamping round objects and ensuring alignment in structural installations, such as suspending pipes or fastening conduit systems. U-bolts are preferred in scenarios where pipe straps may not offer the same level of grip or durability, especially in heavy-duty or outdoor environments.
Installation Process: Pipe Strap vs U-Bolt
Pipe strap installation involves securing the strap over the pipe and fastening it directly to a flat surface with screws, allowing for a quick and straightforward setup. U-bolt installation requires positioning the U-shaped bolt around the pipe and tightening it with nuts onto a mounting plate or bracket, which can be more time-consuming and demands careful alignment. The pipe strap method offers greater ease and speed in installation, especially on flat surfaces, while U-bolts provide more robust clamping for round surfaces but with increased complexity.
Load Capacity and Strength Comparison
Pipe straps typically offer greater load capacity and strength compared to U-bolts due to their solid, continuous contact design that evenly distributes stress along the pipe's surface. U-bolts concentrate force at two points, which can lead to higher stress and potential deformation under heavy loads. For applications requiring robust support and minimizing pipe damage, pipe straps provide superior performance in maintaining structural integrity.
Corrosion Resistance: Which Is Better?
Pipe straps generally offer superior corrosion resistance compared to U-bolts due to their simpler design and fewer crevices where moisture can accumulate, reducing rust formation. Typically made from stainless steel or coated materials like galvanized steel, pipe straps maintain durability in harsh environments better than U-bolts, which often have more exposed threads prone to corrosion. For applications requiring long-term exposure to moisture or chemicals, pipe straps provide a more reliable and corrosion-resistant solution.
Cost Considerations: Pipe Strap vs U-Bolt
Pipe straps typically offer a more cost-effective solution compared to U-bolts due to their simpler design and lower material requirements. U-bolts often involve higher manufacturing and installation costs because of their complex shape and need for additional hardware such as nuts and washers. When budget constraints are a priority, pipe straps provide an efficient and economical option for securing pipes in various applications.
Choosing the Right Fastener for Your Project
Pipe straps provide a secure, low-profile solution for fastening pipes to surfaces, ideal for applications requiring minimal movement and a flush finish. U-bolts offer greater flexibility and strength, supporting round pipes with a clamping grip suitable for heavy-duty or outdoor projects. Selecting the right fastener depends on load requirements, pipe dimensions, and environmental conditions to ensure durability and optimal performance.

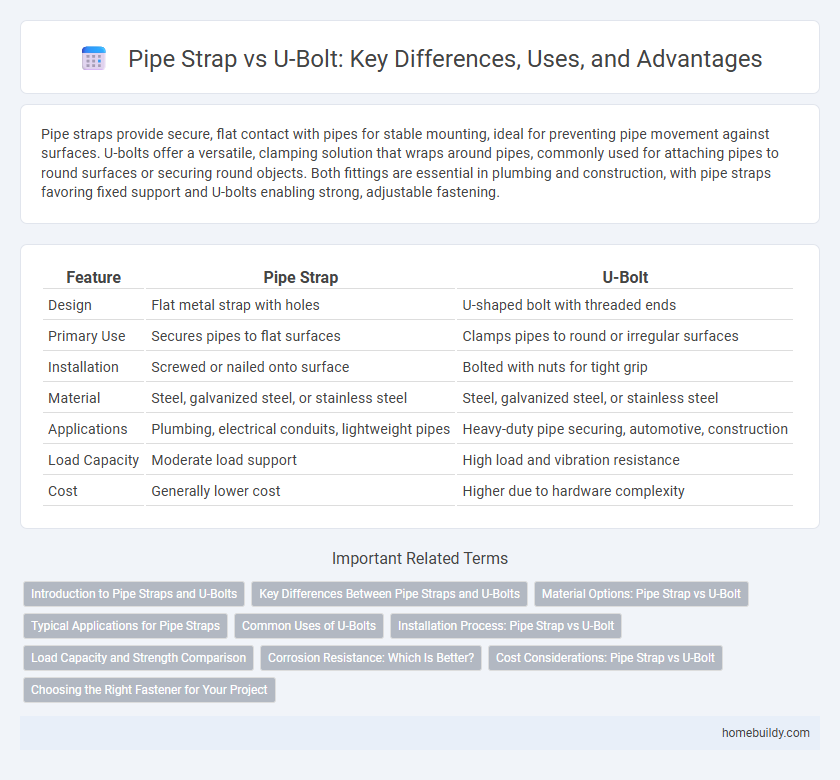

Pipe strap vs U-bolt Infographic
