homebuildy.com A pipe strap secures pipes to walls or ceilings, preventing movement and providing structural support. A pipe guide, meanwhile, controls the pipe's linear movement, allowing thermal expansion and contraction while maintaining alignment. Both are essential in piping systems but serve different functions: straps hold pipes in place, whereas guides direct pipe motion.
Table of Comparison
| Feature | Pipe Strap | Pipe Guide |
|---|---|---|
| Primary Function | Secures pipe to a surface, holds pipe firmly in place | Allows controlled pipe movement, guides thermal expansion |
| Material | Typically metal (steel, galvanized steel), sometimes plastic | Metal or plastic with low-friction lining |
| Application | Fixed pipe installations, structural support | Dynamic pipe systems requiring movement control |
| Installation | Fastened tightly around pipe and mounted to support | Mounted to allow pipe sliding within guide |
| Movement | Restricts all pipe movement | Permits axial movement, restricts lateral displacement |
| Use Case | Static pipe runs, wall or ceiling mounting | Piping with thermal expansion, vibration absorption |
Introduction to Pipe Straps and Pipe Guides
Pipe straps are essential fastening components designed to secure pipes firmly to surfaces, preventing movement and providing structural support. Pipe guides, while also used to control pipe placement, primarily allow for thermal expansion and contraction by guiding the pipe along a set path without rigidly fixing it. Understanding the functional differences between pipe straps and pipe guides is crucial for selecting the appropriate hardware in plumbing, HVAC, and industrial piping systems.
Purpose and Functionality: Pipe Strap vs Pipe Guide
Pipe straps primarily serve to secure pipes in fixed positions, providing stability and preventing displacement due to vibration or external forces. Pipe guides allow controlled linear movement of pipes, accommodating thermal expansion and contraction while maintaining alignment within a system. The key functional difference lies in pipe straps restricting movement for stability, whereas pipe guides facilitate directional movement to reduce stress on piping components.
Key Differences Between Pipe Straps and Pipe Guides
Pipe straps secure pipes firmly against a surface, preventing lateral movement and providing structural support, while pipe guides allow controlled axial movement to accommodate thermal expansion and contraction. The main distinction lies in their function: pipe straps restrain pipes in a fixed position, whereas pipe guides permit longitudinal pipe movement along the pipeline. Material composition often overlaps, but design variations target their specific roles in piping systems.
Material Options: Pipe Strap vs Pipe Guide
Pipe straps are typically made from materials like galvanized steel, stainless steel, or plastic, offering sturdy support for securing pipes in place. Pipe guides, on the other hand, often incorporate materials such as nylon, rubber, or coated metals designed to allow controlled pipe movement while preventing lateral displacement. Material selection between pipe straps and guides depends on application requirements including environmental conditions, load, and the need for pipe mobility control.
Installation Methods: Pipe Straps vs Pipe Guides
Pipe straps are typically installed using screws or nails to securely fasten pipes to walls or ceilings, offering straightforward and quick mounting suitable for stationary pipelines. In contrast, pipe guides are mounted with brackets or clamps designed to allow limited axial movement, accommodating thermal expansion and contraction along the pipe's length. Proper installation of pipe guides involves precise alignment to ensure smooth pipe movement while preventing lateral displacement, unlike the rigid fixation provided by pipe straps.
Typical Applications for Pipe Straps and Pipe Guides
Pipe straps are typically used to secure pipes to a fixed surface, providing stability and preventing movement in residential plumbing, HVAC systems, and electrical conduit installations. Pipe guides allow controlled axial movement of pipes, making them ideal for applications involving thermal expansion, such as in industrial piping and boiler systems. Choosing between pipe straps and pipe guides depends on whether the pipe requires rigid support or guided movement within the system.
Pros and Cons: Pipe Strap vs Pipe Guide
Pipe straps provide secure support by firmly holding pipes in place, making them ideal for static installations where minimal movement is required, but they can cause stress on pipes due to rigid fastening. Pipe guides allow controlled movement and thermal expansion, reducing pipe stress and wear, yet they require precise installation and offer less rigid stabilization compared to pipe straps. Choosing between pipe strap and pipe guide depends on the needed balance between pipe stability and flexibility based on system dynamics and thermal conditions.
Durability and Maintenance Considerations
Pipe straps typically offer higher durability due to their solid metal construction and ability to securely fasten pipes against structural surfaces, minimizing movement and wear. In contrast, pipe guides are designed to allow controlled movement along the pipe axis, which can reduce stress but may require more frequent maintenance checks to ensure smooth operation and prevent debris buildup. Maintenance considerations favor pipe straps for long-term stability with minimal adjustments, while pipe guides necessitate regular inspection to maintain functionality and avoid premature wear.
Cost Comparison: Pipe Strap vs Pipe Guide
Pipe straps typically cost less than pipe guides, making them a more economical choice for securing pipes in various installations. While pipe guides offer enhanced control and support, their higher price reflects advanced features such as allowing pipe movement to prevent stress. Budget constraints often lead contractors to select pipe straps for straightforward applications due to their affordability and ease of installation.
Choosing the Right Option: Pipe Strap or Pipe Guide
Pipe straps secure pipes tightly to a surface, providing firm support and preventing movement, ideal for maintaining stationary pipe installations. Pipe guides, however, allow controlled axial movement while restricting lateral displacement, essential in systems where thermal expansion or contraction occurs. Selecting the right option depends on the application's need for either rigid fixation or guided flexibility to ensure pipe integrity and system efficiency.

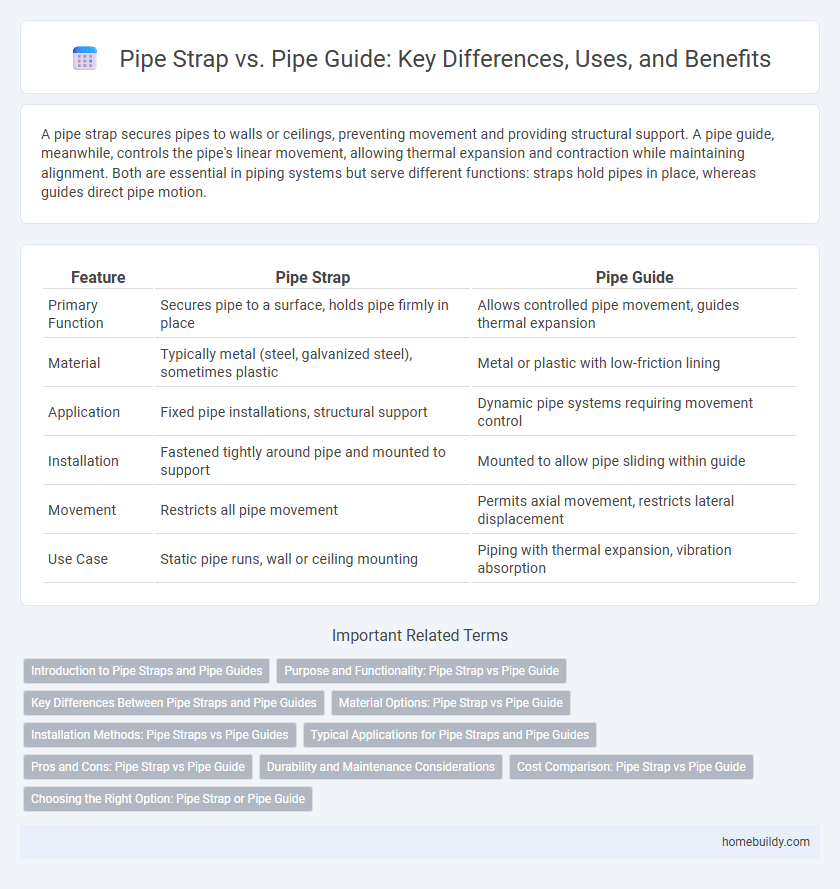

Pipe strap vs Pipe guide Infographic
