homebuildy.com EMT pipe straps are designed to secure electrical metallic tubing, offering flexibility and corrosion resistance for indoor conduit installations. Rigid pipe straps provide stronger support for heavier, rigid conduit systems such as PVC or steel, ensuring stability in demanding environments. Choosing between the two depends on conduit type and installation conditions, where EMT straps suit lightweight tubing and rigid straps handle rigid, load-bearing pipes.
Table of Comparison
| Feature | EMT Pipe Strap | Rigid Pipe Strap |
|---|---|---|
| Material | Galvanized steel or stainless steel | Galvanized steel, stainless steel, or aluminum |
| Compatibility | EMT conduit (Electrical Metallic Tubing) | Rigid conduit (RMC, IMC) |
| Strength | Light to moderate support strength | High strength for heavy-duty support |
| Installation | Quick and easy to install with minimal tools | Requires more effort and tools for secure fastening |
| Corrosion Resistance | Good (galvanized coating) | Excellent (thicker galvanization or stainless steel) |
| Use Case | Indoor EMT conduit runs, light wiring | Outdoor, industrial, or high-vibration environments |
| Cost | Lower cost | Higher cost due to material and durability |
Introduction to EMT and Rigid Pipe Straps
EMT pipe straps are designed for securing Electrical Metallic Tubing, a lightweight, flexible conduit used in electrical installations, providing corrosion resistance and ease of bending. Rigid pipe straps, on the other hand, are intended for heavier, less flexible rigid metal conduits (RMC) that offer superior strength and protection in exposed or industrial environments. Choosing between EMT and rigid pipe straps depends on the conduit type, installation requirements, and environmental factors.
Key Differences Between EMT and Rigid Pipe Straps
EMT pipe straps are designed specifically for securing electrical metallic tubing, providing flexibility with a lighter gauge steel for easy bending and installation. Rigid pipe straps are manufactured with thicker, stronger materials to hold heavier, rigid conduit such as Rigid Metal Conduit (RMC) or Intermediate Metal Conduit (IMC), ensuring enhanced durability and load-bearing capacity. Key differences include material thickness, flexibility, and suitability for different conduit types, impacting installation ease and structural support requirements.
Material Composition of EMT vs Rigid Pipe Straps
EMT pipe straps are typically constructed from aluminum or galvanized steel, offering lightweight corrosion resistance suitable for electrical conduit installations. Rigid pipe straps are made from thicker, heavier-gauge galvanized steel or stainless steel, providing superior durability and strength for securing rigid metal conduit (RMC) in demanding environments. The material composition differences directly influence their application, with EMT straps prioritizing flexibility and ease of use, while rigid pipe straps emphasize robustness and long-term structural support.
Structural Strength and Durability Comparison
EMT pipe straps are designed for lightweight electrical conduit installations, offering moderate structural strength suitable for non-load-bearing applications. Rigid pipe straps, constructed from thicker and more robust materials like heavy-gauge steel, provide superior durability and enhanced load-bearing capacity, making them ideal for supporting heavy or high-stress plumbing and conduit systems. The increased mechanical strength of rigid pipe straps ensures long-term resistance to environmental stressors and physical impacts, outperforming EMT straps in demanding structural scenarios.
Common Applications for EMT and Rigid Pipe Straps
EMT pipe straps are commonly used in residential and commercial electrical conduit installations where flexibility and lightweight support for electrical metallic tubing are required. Rigid pipe straps are preferred in industrial settings and heavy-duty applications, providing robust support for rigid metal conduit to handle higher mechanical stress and environmental exposure. Both types securely fasten conduit runs but differ in strength and application suitability based on conduit material.
Installation Methods: EMT Pipe Strap vs Rigid Pipe Strap
EMT pipe straps are designed for quick and easy installation using standard screw drives or hammer-through fasteners, making them ideal for lightweight Electrical Metallic Tubing (EMT) conduit. In contrast, rigid pipe straps require more precise alignment and often use heavier fasteners such as bolts or lag screws to secure rigid metal conduit (RMC), ensuring a robust and stable attachment. The installation method for EMT straps is generally faster and more flexible, while rigid pipe straps demand more labor and durability to support heavier, thicker conduits.
Sizing and Compatibility Considerations
EMT pipe straps are designed for use with electrical metallic tubing, offering flexibility with sizing to accommodate thinner walls, typically sizes ranging from 1/2 inch to 2 inches. Rigid pipe straps suit heavier conduit, such as rigid galvanized steel or PVC pipes, requiring precise sizing to ensure a secure fit for thicker wall diameters to prevent movement and maintain grounding continuity. Compatibility depends on matching the strap type to conduit material and size, ensuring compliance with NEC standards for safe and effective electrical installations.
Cost Comparison: EMT Pipe Strap vs Rigid Pipe Strap
EMT pipe straps generally cost less than rigid pipe straps due to their lighter materials and simpler manufacturing process. Rigid pipe straps, often made from thicker gauge steel or other sturdy materials, offer greater durability but come with a higher price tag. When budgeting for electrical conduit installation, EMT pipe straps provide a cost-effective solution without significantly compromising support strength.
Safety and Code Compliance Factors
EMT pipe straps are designed for electrical metallic tubing, providing secure support while meeting NEC safety standards for grounding and protection against physical damage. Rigid pipe straps accommodate heavier, thicker conduit like rigid metal conduit (RMC), offering enhanced mechanical protection and compliance with local building codes requiring robust support for heavier wiring systems. Selecting the appropriate strap type ensures adherence to safety regulations, reduces the risk of conduit movement or damage, and maintains system integrity.
Choosing the Right Pipe Strap for Your Project
Selecting the right pipe strap hinges on the specific requirements of your project, with EMT pipe straps designed for securing electrical conduit and offering flexibility and ease of installation. Rigid pipe straps provide stronger support ideal for heavier or more rigid piping systems, ensuring durability and stability in demanding environments. Evaluating factors such as pipe material, load capacity, and environmental conditions ensures optimal performance and compliance with electrical or plumbing codes.

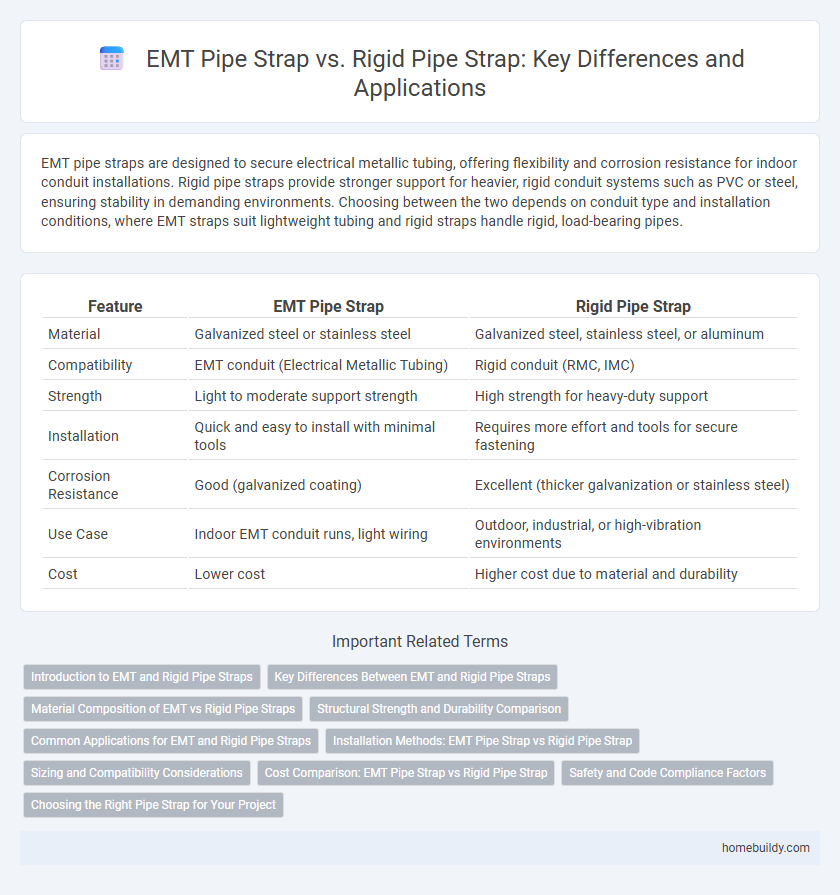

EMT pipe strap vs Rigid pipe strap Infographic
