homebuildy.com Strap-type pipe supports provide flexible support by wrapping around the pipe, allowing for minor movement and reducing stress on the piping system. Clamp-type pipe supports secure the pipe rigidly, offering firm restraint and preventing axial or lateral displacement. Choosing between these supports depends on the required pipe movement control and load distribution in the system.
Table of Comparison
| Feature | Strap-Type Pipe Support | Clamp-Type Pipe Support |
|---|---|---|
| Design | Simple flat strap, secures pipe with a strap over the pipe | Clamp with hinged or bolted design, fully encircles the pipe |
| Pipe Protection | Minimal cushioning, higher risk of pipe damage | Better protection with padding or lining options |
| Load Capacity | Suitable for light to medium loads | Handles medium to heavy loads securely |
| Installation | Quick and easy to install | Requires more time due to bolting/clamping mechanism |
| Adjustability | Limited adjustability after installation | Allows for easy adjustment and maintenance |
| Common Applications | Light piping systems, temporary setups | Industrial and permanent piping installations |
| Cost | Lower cost, budget-friendly | Higher cost due to design complexity |
Introduction to Pipe Support Systems
Strap-type pipe supports provide flexible stabilization by securing pipes with adjustable metal straps, allowing slight movements due to thermal expansion and contraction. Clamp-type pipe supports offer rigid holding with fixed clamping mechanisms, ensuring minimal pipe displacement and enhanced vibration control. Both systems play critical roles in maintaining pipe integrity and preventing mechanical stress within industrial piping networks.
Overview of Strap-Type Pipe Supports
Strap-type pipe supports consist of flat, flexible metal bands that securely hold pipes in place while allowing minimal movement to accommodate thermal expansion. They offer cost-effective installation and are ideal for light to medium load applications where pipe vibration or alignment adjustments are minimal. Compared to clamp-type supports, strap supports provide a simpler design with reduced weight but limited load-bearing capacity and adjustability.
Overview of Clamp-Type Pipe Supports
Clamp-type pipe supports provide secure, adjustable holding for pipes by encircling the pipe with a two-piece metal band tightened using bolts, allowing for easy installation and removal. These supports accommodate thermal expansion and contraction while minimizing pipe movement and stress by offering firm grip and vibration dampening. Commonly used in industrial piping systems, clamp-type supports are preferred for their versatility and durability across various pipe sizes and materials.
Key Differences Between Strap and Clamp Pipe Supports
Strap-type pipe supports secure pipes using a flexible metal band that wraps around the pipe, providing moderate stability and accommodating slight pipe movements or thermal expansion. Clamp-type pipe supports use rigid metal components tightened around the pipe, offering superior load-bearing capacity and more rigid immobilization, ideal for heavier or high-pressure piping systems. The key differences lie in their flexibility, load capacity, and suitability for varying pipe stress conditions, with strap supports favoring lightweight applications and clamp supports designed for robust industrial use.
Material Compatibility: Strap vs Clamp Supports
Strap-type pipe supports typically use flexible materials such as steel or stainless steel bands, providing excellent compatibility with a wide range of pipe materials, including plastic and copper, without causing damage or corrosion. Clamp-type pipe supports, usually made from rigid metals like carbon steel or ductile iron, offer robust support but may require additional padding or insulation to prevent galvanic corrosion when used with dissimilar pipe materials. Material compatibility in pipe supports is crucial to ensure long-term durability, resistance to environmental factors, and maintaining the integrity of the piping system.
Installation Process Comparison
Strap-type pipe supports offer a straightforward installation process, typically involving securing the strap around the pipe and fastening it to the supporting structure with screws or bolts, requiring minimal tools and adjustments. Clamp-type pipe supports demand a more precise alignment, as the clamp must be properly positioned and tightened to ensure a secure grip without damaging the pipe, often involving additional components like rubber linings or cushioning for vibration reduction. Installation time for strap-type supports is generally shorter, making them suitable for quick deployments, while clamp-type supports provide enhanced stability and are preferred for applications requiring higher load resistance and pipe protection.
Load Distribution and Pipe Protection
Strap-type pipe supports provide superior load distribution by enclosing the pipe around a wider surface area, reducing localized stress and preventing deformation. Clamp-type pipe supports offer more rigid holding but concentrate pressure on smaller contact points, increasing the risk of pipe damage under heavy loads. Effective pipe protection is enhanced with strap supports due to evenly spread forces and minimal metal-to-pipe friction, extending pipe lifespan in industrial applications.
Cost Implications: Strap vs Clamp Supports
Strap-type pipe supports generally offer lower initial costs due to simpler design and fewer materials required compared to clamp-type pipe supports. Maintenance expenses tend to be reduced with strap supports because of easier installation and minimal moving parts, whereas clamp supports may incur higher costs from more frequent adjustments and part replacements. This cost efficiency makes strap supports a preferred option for budget-conscious projects requiring reliable pipe stabilization.
Typical Applications for Each Support Type
Strap-type pipe supports are typically used for securing smaller-diameter pipes in low-pressure systems, such as domestic water lines, HVAC conduits, and electrical conduits, due to their simplicity and ease of installation. Clamp-type pipe supports provide a more robust grip and are preferred in high-pressure or high-vibration applications like industrial process piping, steam lines, and heavy-duty plumbing, ensuring better load distribution and pipe stability. Each support type is selected based on pipe size, pressure requirements, and environmental conditions to optimize pipe integrity and safety.
Choosing the Right Pipe Support for Your Project
Strap-type pipe supports provide flexible and adjustable securing options, ideal for accommodating thermal expansion and vibrations in piping systems. Clamp-type pipe supports offer rigid, secure fastening suitable for heavy loads and high-pressure applications where minimal pipe movement is critical. Selecting the right pipe support depends on project requirements such as load capacity, environmental conditions, and the need for pipe mobility versus stability.

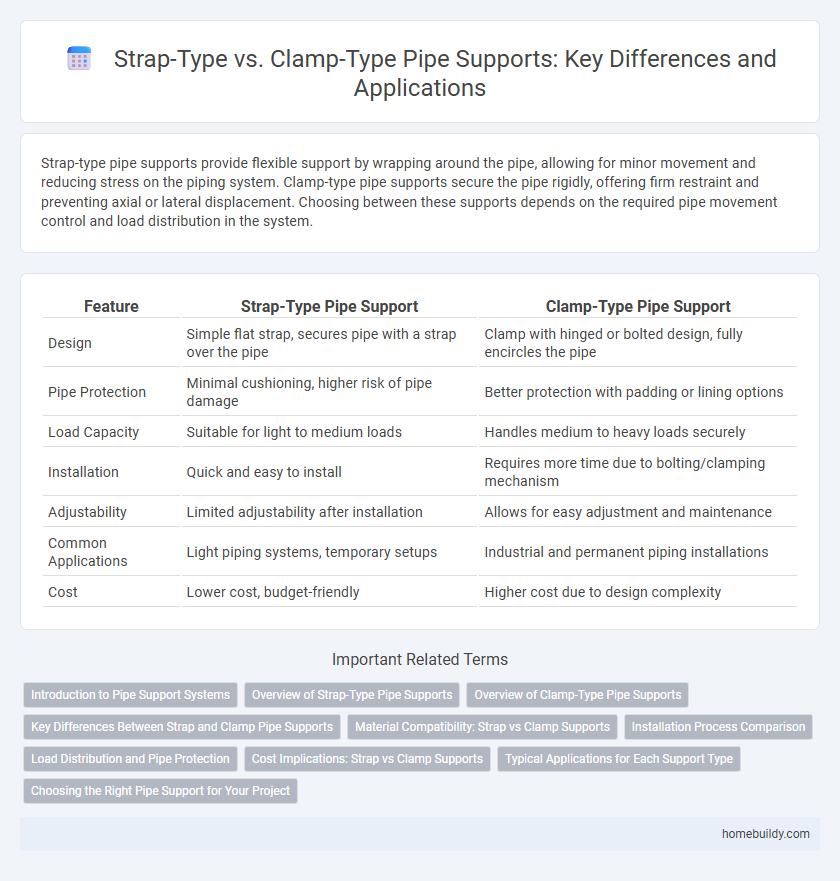

Strap-type pipe support vs Clamp-type pipe support Infographic
