homebuildy.com Knockout junction boxes feature removable sections that allow easy access for wiring and conduit entry, making them ideal for flexible installation in various electrical projects. Solid junction boxes lack these removable knockouts, providing enhanced durability and protection against environmental factors, which is suitable for more permanent and secure installations. Choosing between knockout and solid junction boxes depends on the need for accessibility versus robust protection in electrical wiring systems.
Table of Comparison
| Feature | Knockout Junction Box | Solid Junction Box |
|---|---|---|
| Design | Pre-punched removable holes (knockouts) | No knockouts, solid sides |
| Installation | Flexible wiring entry through knockouts | Requires drilling or custom openings for wiring |
| Material | Typically metal or plastic | Usually metal, classified as solid enclosure |
| Use Case | General electrical connections with multiple wiring entries | Applications needing sealed or isolated connections |
| Protection | Standard protection, less dust/water resistant | Higher protection against dust and moisture |
| Cost | Generally lower cost | Usually higher due to material and design |
Introduction to Knockout and Solid Junction Boxes
Knockout junction boxes feature pre-punched holes covered with removable metal or plastic tabs, allowing easy conduit or cable entry customization for electrical wiring systems. Solid junction boxes, constructed without pre-punched holes, provide increased protection against environmental elements and mechanical damage, promoting enhanced durability in harsh conditions. Both types ensure secure connections and compliance with electrical codes, with knockout boxes favoring flexibility and solid boxes prioritizing robustness.
Key Differences Between Knockout and Solid Junction Boxes
Knockout junction boxes feature removable pre-scored sections that allow for flexible conduit entry, enabling easy wiring customization and expansion. Solid junction boxes have fixed, non-removable walls, providing enhanced protection from dust and moisture but limited entry points, ideal for environments requiring sealed enclosures. The primary difference lies in adaptability versus environmental protection, with knockout boxes favored for accessibility and solid boxes for durability.
Advantages of Knockout Junction Boxes
Knockout junction boxes offer remarkable flexibility by allowing easy customization of cable entry points, which streamlines electrical wiring installations and reduces labor time. These boxes enable installers to adapt wiring configurations on-site without pre-drilling, minimizing the need for extra tools and parts. Their compatibility with various conduit sizes and types enhances versatility in both residential and commercial electrical systems.
Benefits of Solid Junction Boxes
Solid junction boxes provide enhanced durability and superior protection against environmental factors compared to knockout junction boxes, ensuring safer electrical connections in harsh or industrial settings. Their pre-formed design eliminates the risk of accidental damage during installation, reducing maintenance needs and enhancing overall electrical safety. The robust construction of solid junction boxes also improves resistance to moisture, dust, and mechanical impacts, making them ideal for long-term, reliable use in demanding applications.
Common Applications for Knockout vs Solid Junction Boxes
Knockout junction boxes are widely used in residential and commercial electrical installations where flexibility is needed to accommodate various conduit sizes and wiring configurations. Solid junction boxes are ideal for applications requiring a sealed, moisture-resistant environment, such as outdoor or industrial electrical systems. Both types serve crucial roles in organizing and protecting electrical connections based on specific environmental and installation requirements.
Material Options: Knockout vs Solid Junction Boxes
Knockout junction boxes typically feature stamped steel or galvanized steel, providing durability and corrosion resistance for versatile electrical installations. Solid junction boxes often use cast aluminum or high-impact thermoplastic, offering enhanced strength and protection against environmental factors. Material choice impacts installation flexibility, with knockout boxes favoring adaptability and solid boxes emphasizing robustness and longevity.
Installation Process Comparison
Knockout junction boxes feature pre-punched, removable sections that simplify wiring installations by allowing easy entry points for cables, reducing cutting and modification time. Solid junction boxes require manual drilling or punching of holes before installation, increasing preparation time and complexity during setup. The knockout design enhances efficiency and adaptability on-site, while solid boxes offer greater structural integrity but demand more labor-intensive preparation.
Cost Considerations for Knockout and Solid Junction Boxes
Knockout junction boxes generally offer lower upfront costs due to their versatile design, allowing easy customization and fewer pre-purchased components. Solid junction boxes, often made from more durable materials, tend to have higher initial expenses but provide better long-term savings by reducing maintenance and replacement needs. Budget planning should balance the immediate affordability of knockout boxes against the durability-driven value of solid junction boxes.
Safety and Code Compliance
Knockout junction boxes feature removable metal or plastic sections that allow easy cable entry while maintaining secure grounding, reducing the risk of electrical hazards and enhancing safety. Solid junction boxes, with fixed walls and pre-drilled holes or nipples, provide sturdy protection for wiring but require precise installation to meet National Electrical Code (NEC) standards for grounding and cable strain relief. Ensuring compliance with NEC Article 314 guarantees both knockout and solid junction boxes are installed to safely contain electrical connections and prevent fire or shock risks.
Choosing the Right Junction Box for Your Project
Choosing the right junction box depends on your project's specific wiring and installation needs; knockout junction boxes offer flexibility with multiple pre-punched holes that can be customized for various conduit sizes and entry points. Solid junction boxes provide a sealed, sturdy option ideal for environments requiring extra protection against moisture, dust, or tampering, making them suitable for outdoor or industrial applications. Assess the electrical load, environmental conditions, and future expansion plans to determine whether the adaptable knockout or the robust solid junction box aligns best with your project requirements.

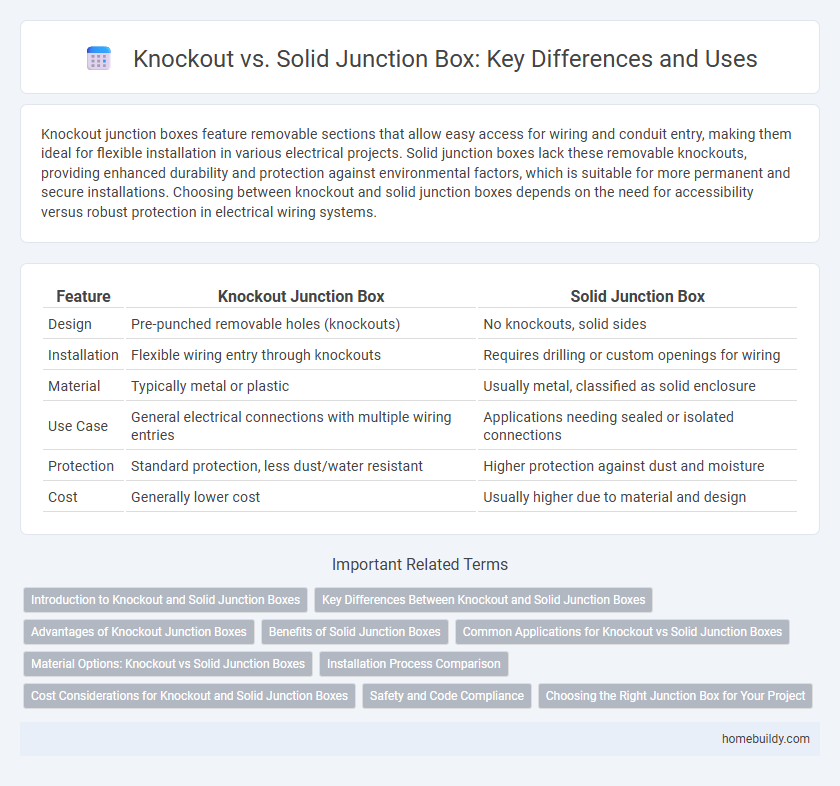

Knockout junction box vs Solid junction box Infographic
