homebuildy.com A junction box is designed to house electrical connections safely, providing a secure enclosure for wiring splices, while a pull box offers extra space primarily to facilitate wire pulling and transitions without making connections inside. Junction boxes are typically smaller and used where wire connections need to be protected, whereas pull boxes are larger and serve as access points to ease wire installation and maintenance in conduit systems. Proper selection between a junction box and a pull box ensures compliance with electrical codes and enhances system reliability.
Table of Comparison
| Feature | Junction Box | Pull Box |
|---|---|---|
| Primary Use | Connecting electrical wires and cables | Allowing cable pulling and maintenance |
| Design | Sealed enclosure for wire splicing | Open space for cable maneuvering |
| Typical Size | Compact, varies by application | Larger to accommodate pulling radius |
| Installation Location | Indoor or outdoor, near connection points | Along cable runs and long conduit paths |
| Material | Metal or plastic, weatherproof options | Metal or plastic, may be reinforced |
| Code Requirements | Must provide electrical continuity and safety | Must allow sufficient space for cable pulling per NEC |
| Maintenance | Accessed for wiring modifications or repairs | Accessed primarily for cable pulling and inspection |
Understanding Junction Boxes and Pull Boxes
Junction boxes serve as protective enclosures that house electrical connections, facilitating the safe joining of wires and preventing accidental contact. Pull boxes, on the other hand, provide additional space to pull, route, and manage electrical cables, especially in long conduit runs or when directional changes occur. Understanding the distinct roles of junction boxes and pull boxes is essential for optimizing electrical system design, ensuring code compliance, and enhancing maintenance accessibility.
Key Differences Between Junction Boxes and Pull Boxes
Junction boxes primarily serve as enclosures where electrical connections are made and protected, often housing splices and connections in wiring systems. Pull boxes, on the other hand, are designed to provide access points for pulling and routing wires through conduits, facilitating easier cable installation and maintenance. Key differences include their functional roles--junction boxes focus on protection and connection, while pull boxes emphasize accessibility and wire management within electrical conduit systems.
Main Functions: Junction Box vs Pull Box
A junction box serves as a protective housing where electrical wires are joined and connected to ensure circuit continuity and safety, typically installed at wiring branch points. In contrast, a pull box primarily functions as an access point that facilitates the pulling and routing of electrical cables through conduits, enabling easier maintenance and cable installation over long distances. While junction boxes prioritize wire splicing and connection security, pull boxes focus on cable management and accessibility within electrical conduit systems.
Materials and Construction Comparison
Junction boxes are typically made from non-metallic materials like PVC or fiberglass, offering corrosion resistance and lightweight properties suitable for indoor and outdoor electrical enclosures. Pull boxes, often constructed from heavier gauge steel or aluminum, provide robust mechanical protection and larger internal space for wire pulling and maintenance in conduit systems. The choice of materials reflects their distinct functions, with junction boxes designed for secure electrical connections and pull boxes optimized for ease of cable management and durability.
Installation Guidelines: Junction Box vs Pull Box
Junction boxes require installation at wiring branch points to protect connections and facilitate maintenance, typically mounted in accessible locations per NEC guidelines. Pull boxes are installed at conduit bends, runs over 100 feet, or where wire pulling exceeds standard limits, ensuring adequate space for wire maneuvering and reducing damage risk. Proper sizing and adherence to clearance regulations for both junction and pull boxes are essential for safety and code compliance during electrical installations.
Safety Standards and Code Requirements
Junction boxes and pull boxes serve distinct functions under NEC safety standards, with junction boxes primarily designed to house connections and protect wiring splices, ensuring proper grounding and minimizing fire hazards. Pull boxes, used to facilitate wire pulling through conduit systems, must comply with specific dimensional requirements to allow safe and efficient wire installation without damaging insulation. Both are required to meet local code requirements for accessibility, proper labeling, and secure covers to maintain electrical safety and prevent unauthorized access.
Common Applications for Junction Boxes
Junction boxes are commonly used to protect electrical connections in residential, commercial, and industrial wiring systems, ensuring safe and organized wire splicing. They facilitate access for maintenance and troubleshooting, making them essential in lighting circuits, outlet installations, and HVAC wiring. Unlike pull boxes, junction boxes are designed primarily for housing wire connections rather than assisting cable pulling or pulling tension relief.
Typical Uses for Pull Boxes
Pull boxes are typically used in electrical conduit systems to facilitate cable pulling and maintenance in long runs or complex junction points. They provide access points to change conduit direction, splice cables, or accommodate future expansion without disrupting the entire system. Unlike junction boxes, which primarily house connections, pull boxes focus on easing cable installation and reducing conduit friction.
Pros and Cons: Junction Box vs Pull Box
Junction boxes offer secure housing for wire connections, providing excellent protection against environmental factors and electrical faults, but they can be more complex to install and may require larger space compared to pull boxes. Pull boxes facilitate easier cable pulling and maintenance with simpler designs, reducing installation time and costs, though they lack the protective features of junction boxes and are less suitable for housing wire splices. Choosing between a junction box and a pull box depends on the project's specific needs for protection, accessibility, and installation complexity.
Choosing the Right Box for Your Electrical Project
Choosing the right box for your electrical project requires understanding the distinct purposes of junction boxes and pull boxes. Junction boxes serve as protective enclosures for wire splicing and connection points, ensuring safety and organization, while pull boxes are designed to provide extra space for pulling and routing cables through conduits. Selecting between a junction box and pull box depends on whether the priority is wire connection protection or cable management flexibility within your electrical system.

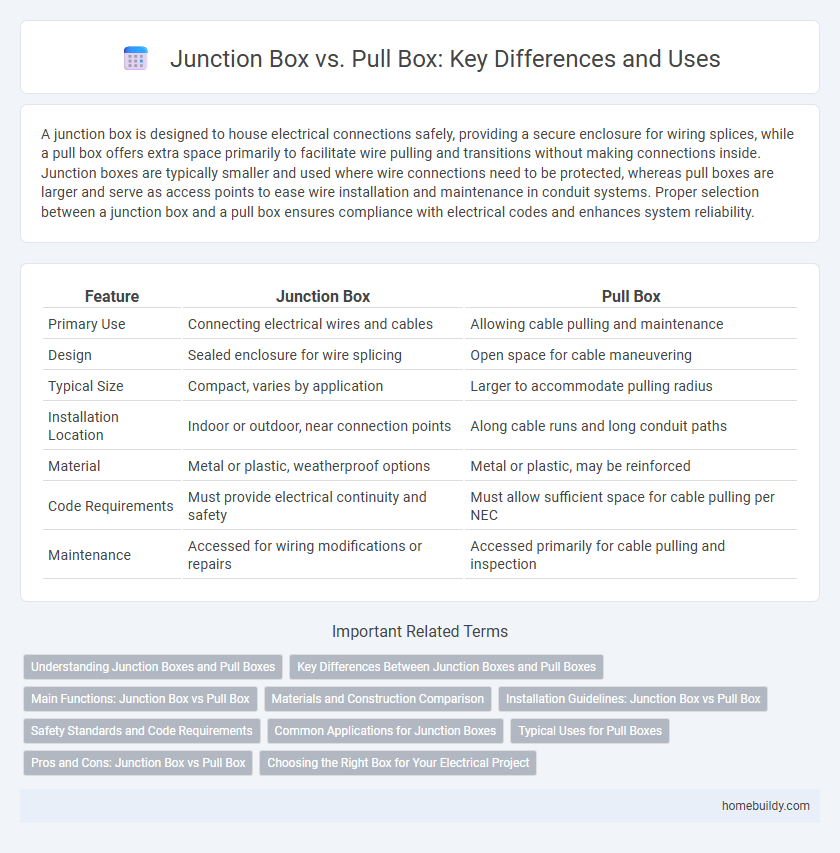

Junction box vs Pull box Infographic
