homebuildy.com A junction box serves as a protective enclosure for electrical connections, ensuring safety and organization, while a back box is primarily designed to house and support switches or sockets mounted on walls. Unlike back boxes, junction boxes offer more space for connecting multiple cables and are essential for complex wiring setups. Choosing the right type depends on the electrical installation requirements and the need for accessibility during maintenance.
Table of Comparison
| Feature | Junction Box | Back Box |
|---|---|---|
| Purpose | Connects electrical wires safely, allowing circuit extensions and branching. | Mounts switches, sockets, or fixtures within walls or ceilings. |
| Application | Used to enclose wire splices and protect wiring connections. | Provides a secure mounting point for electrical devices. |
| Size | Generally larger to accommodate multiple wire connections. | Smaller, designed to fit behind outlets or switches. |
| Material | Usually made of plastic or metal with a cover for safety. | Typically metal or plastic without a cover; fits flush in walls. |
| Installation Location | Surface-mounted or recessed, depending on application. | Installed inside walls or ceilings. |
| Protection | Protects wire connections from damage and moisture. | Supports devices but offers limited wire protection. |
Introduction: Junction Box vs Back Box
A junction box is an enclosure that houses electrical connections, protecting them and providing a safe environment for wiring splices, while a back box serves as a mounting enclosure for electrical devices such as switches or sockets. Junction boxes are primarily used to join multiple cables, ensuring secure and organized wiring, whereas back boxes are designed to hold electrical fittings within walls or ceilings. Choosing between a junction box and a back box depends on whether the focus is on housing wiring connections or installing electrical devices.
Definitions: What is a Junction Box?
A junction box is an electrical enclosure designed to house wire connections and protect them from external damage, ensuring safe and secure splicing of cables. It typically accommodates multiple cables or wires, serving as a central point where electrical circuits can be joined or branched off. Unlike a back box, which is primarily a mounting housing for switches or sockets embedded in walls, a junction box focuses on cable management and electrical continuity.
Definitions: What is a Back Box?
A back box is an electrical enclosure installed within walls or ceilings to house wiring devices like switches, sockets, or junction boxes, providing secure mounting and protection for electrical connections. Unlike junction boxes, which primarily serve as points for electrical wire splicing, back boxes are designed to offer structural support for fixtures and ensure compliance with electrical codes. Common materials for back boxes include plastic and metal, chosen based on the installation environment and safety requirements.
Key Differences Between Junction Box and Back Box
A junction box is a protective enclosure used to house electrical connections, ensuring safety and organization of wiring systems, while a back box serves as a mounting base for switches, sockets, and other fixtures. The key difference lies in their primary function: junction boxes manage wire splices and circuit branching, whereas back boxes provide structural support to electrical devices embedded in walls. Junction boxes typically offer larger internal space to accommodate multiple cables, whereas back boxes are smaller and designed specifically for device installation.
Common Applications of Junction Boxes
Junction boxes are commonly used in electrical wiring systems to protect and connect multiple cables, ensuring organized and safe distribution of power across residential, commercial, and industrial settings. Unlike back boxes, which are primarily designed to house switches or sockets flush with walls, junction boxes accommodate complex wiring junctions and splices in ceilings, walls, or underground installations. Their robust design supports easy access for maintenance and troubleshooting in HVAC systems, lighting networks, and data communication setups.
Typical Uses of Back Boxes
Back boxes are typically used to house electrical connections and fixtures, providing secure mounting points for switches, sockets, and light fittings within walls. Their design ensures safe containment of wiring within drywall, masonry, or plasterboard surfaces, preventing accidental damage and fire hazards. Commonly found in residential and commercial buildings, back boxes facilitate organized installation and maintenance of electrical systems.
Material and Construction: Comparing Both Boxes
Junction boxes typically feature robust metal or heavy-duty plastic construction designed to protect wiring connections from environmental factors and mechanical damage, ensuring safety and durability in various applications. Back boxes, often made from plastic or metal as well, are primarily designed as mounting enclosures for switches and sockets, providing a secure base within walls or surfaces but generally offering less environmental protection compared to junction boxes. Material choice between the two depends on installation requirements, with junction boxes favoring higher durability and impact resistance, while back boxes prioritize ease of installation and compatibility with faceplates.
Installation Process: Junction Box vs Back Box
The installation process of a junction box involves connecting multiple wiring conduits inside a protective enclosure, requiring precise alignment and secure fastening to ensure electrical safety. In contrast, a back box is typically installed flush within walls or ceilings to house switches or outlets, demanding accurate recessing and mounting to accommodate faceplates. Both components necessitate adherence to electrical codes, but the junction box emphasizes wiring connectivity while the back box focuses on structural support for fixtures.
Safety and Compliance Considerations
Junction boxes provide superior safety by fully enclosing electrical connections, reducing the risk of exposure to live wires and preventing accidental contact or electrical fires. Back boxes serve primarily as mounting enclosures for switches or outlets but lack the comprehensive protection required for complex wiring splices. Compliance with electrical codes often mandates the use of junction boxes to ensure secure, insulated, and accessible junction points for wiring safety and inspection.
Choosing the Right Box for Your Project
Selecting the right enclosure between a junction box and a back box depends on the specific electrical requirements and installation context. Junction boxes provide versatile space for wire connections and multiple circuit branching, while back boxes are primarily designed to house switches or sockets flush with the wall. Evaluating factors such as the number of connections, accessibility needs, and mounting preferences ensures optimal safety and functionality in your electrical project.

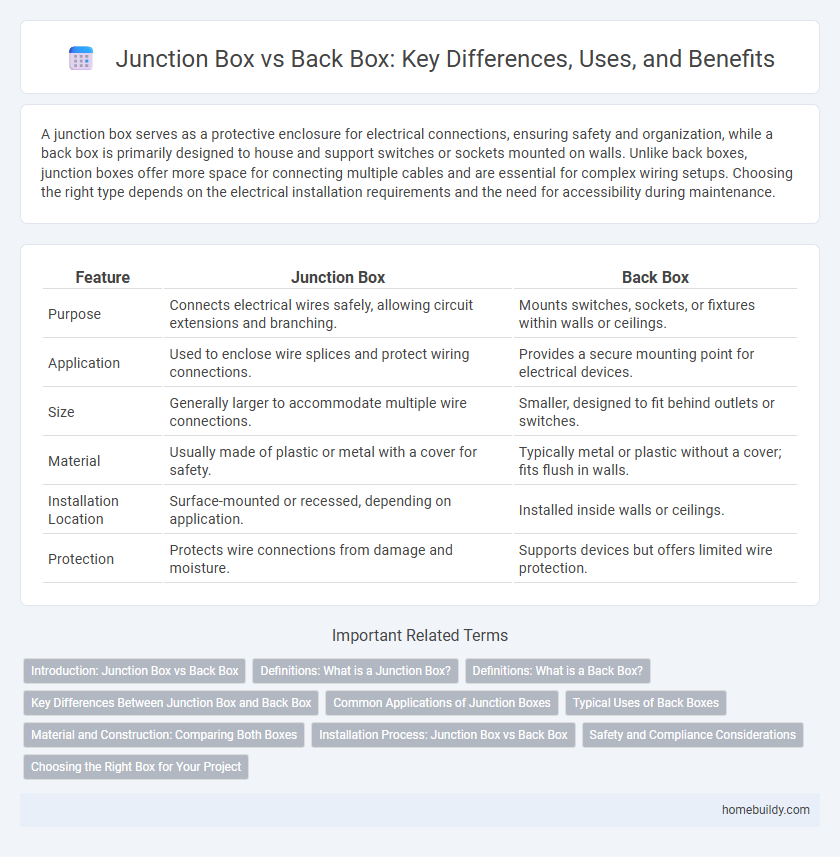

Junction box vs Back box Infographic
