homebuildy.com Cable trays offer a structured and accessible pathway for organizing multiple cables, providing easier installation and maintenance compared to flexible conduits. Unlike flexible conduits, which are better suited for protecting individual cable runs in confined or curved spaces, cable trays support larger cable bundles and allow for better heat dissipation. The open design of cable trays improves airflow and cable visibility, reducing the risk of overheating and simplifying troubleshooting.
Table of Comparison
| Feature | Cable Tray | Flexible Conduit |
|---|---|---|
| Material | Metal (steel, aluminum), fiberglass | Plastic, metal (steel, aluminum) |
| Installation | Fixed, requires mounting brackets | Flexible, easy to bend and route |
| Capacity | High volume of cables, organized layout | Limited cable capacity, smaller size |
| Accessibility | Open design, easy cable inspection and maintenance | Enclosed, difficult to inspect cables without disassembly |
| Protection | Moderate mechanical protection and ventilation | High mechanical protection, moisture resistant |
| Flexibility | Rigid, suitable for straight runs and defined paths | Highly flexible, ideal for complex or curved routes |
| Cost | Generally higher initial cost but efficient for large projects | Lower material cost but may increase labor time |
| Applications | Industrial, commercial, large-scale wiring systems | Small-scale, residential, or limited routing spaces |
Introduction to Cable Trays and Flexible Conduits
Cable trays offer a rigid, organized pathway for electrical wiring, supporting heavy cables and providing easy access for maintenance, while flexible conduits provide adaptable protection for cables in confined or irregular spaces. Cable trays are typically made from materials like steel, aluminum, or fiberglass and are ideal for large-scale installations, whereas flexible conduits, often constructed from metal or plastic, are suited for dynamic environments requiring cable flexibility. Understanding these differences helps in selecting the appropriate wiring solution based on installation complexity, environmental conditions, and mechanical protection needs.
Structural Differences: Cable Tray vs Flexible Conduit
Cable trays feature rigid, open frameworks made from metal or fiberglass, allowing easy cable organization and ventilation, while flexible conduits are composed of bendable materials like plastic or metal, providing enhanced flexibility for routing cables through tight or complex spaces. The rigid structure of cable trays supports heavy cable loads and promotes cable segregation, whereas flexible conduits protect cables against moisture, chemicals, and physical damage in dynamic environments. Structural differences impact installation methods, with cable trays requiring mounting on walls or ceilings, and flexible conduits being secured with clamps or connectors along irregular pathways.
Installation Process: Comparing Ease and Efficiency
Cable tray systems offer a straightforward installation process with modular components that snap or bolt together, reducing labor time and complexity compared to flexible conduit. Flexible conduit requires careful bending and securing to avoid damage or stress on cables, which can increase installation time and effort. Cable trays provide better accessibility for future cable additions or maintenance, enhancing overall installation efficiency.
Cost Comparison: Initial Investment and Maintenance
Cable trays generally offer a lower initial investment compared to flexible conduits due to their simpler installation process and reduced labor costs. Maintenance expenses for cable trays are often more affordable since they provide easier access for inspections and repairs, minimizing downtime. Flexible conduits may incur higher long-term costs because of their increased complexity and the need for specialized fittings and frequent inspections.
Application Suitability: When to Use Each System
Cable trays provide superior support for large-scale electrical wiring installations, especially in commercial and industrial settings where high cable density and easy access for maintenance are crucial. Flexible conduits are ideal for environments requiring frequent adjustments, bends, or tight spaces, offering enhanced protection for cables in dynamic or confined areas. Choose cable trays when managing extensive cable runs and flexible conduits for localized, complex routing with mechanical protection.
Safety and Compliance Standards
Cable trays offer superior safety by providing organized cable routing that reduces the risk of electrical hazards and ensures compliance with NEC (National Electrical Code) standards. Flexible conduits, while adaptable, may pose increased risks of physical damage and signal interference, potentially failing to meet stringent OSHA (Occupational Safety and Health Administration) safety regulations. Choosing cable trays enhances fire resistance and facilitates easier inspection and maintenance, aligning with industry safety protocols and compliance requirements.
Cable Management and Accessibility
Cable trays provide superior cable management by offering organized, spacious pathways that simplify installation and future modifications. Their open design enhances accessibility, allowing easy inspection, maintenance, and cable replacement without extensive dismantling. Flexible conduits, while protective, often limit access and complicate cable routing due to their enclosed, restrictive structure.
Durability and Environmental Resistance
Cable trays offer superior durability compared to flexible conduits due to their rigid construction, typically made from steel or aluminum alloys designed to withstand heavy loads and physical impacts. Environmental resistance in cable trays is enhanced by protective coatings such as galvanized steel or epoxy paint, making them highly resistant to corrosion, moisture, and UV exposure in harsh industrial or outdoor environments. Flexible conduits, while easier to install in complex routing scenarios, are generally less resistant to mechanical damage and may degrade faster under prolonged exposure to chemicals and extreme weather conditions.
Space and Design Flexibility
Cable trays offer superior space efficiency and design flexibility compared to flexible conduits, allowing for organized routing of multiple cables in larger installations. The open structure of cable trays facilitates easy cable management, future expansion, and heat dissipation, whereas flexible conduits often require more complex bending and limited cable capacity. This makes cable trays ideal for industrial and commercial environments where space optimization and adaptability are critical.
Choosing the Right Solution for Your Project
Cable trays offer superior organization and easy access for wiring in large-scale projects, providing efficient cable management and heat dissipation. Flexible conduits excel in environments requiring high flexibility, protection from moisture, and frequent routing changes with minimal installation labor. Selecting between cable trays and flexible conduits depends on project scale, environmental conditions, and long-term maintenance needs to ensure optimal performance and safety.

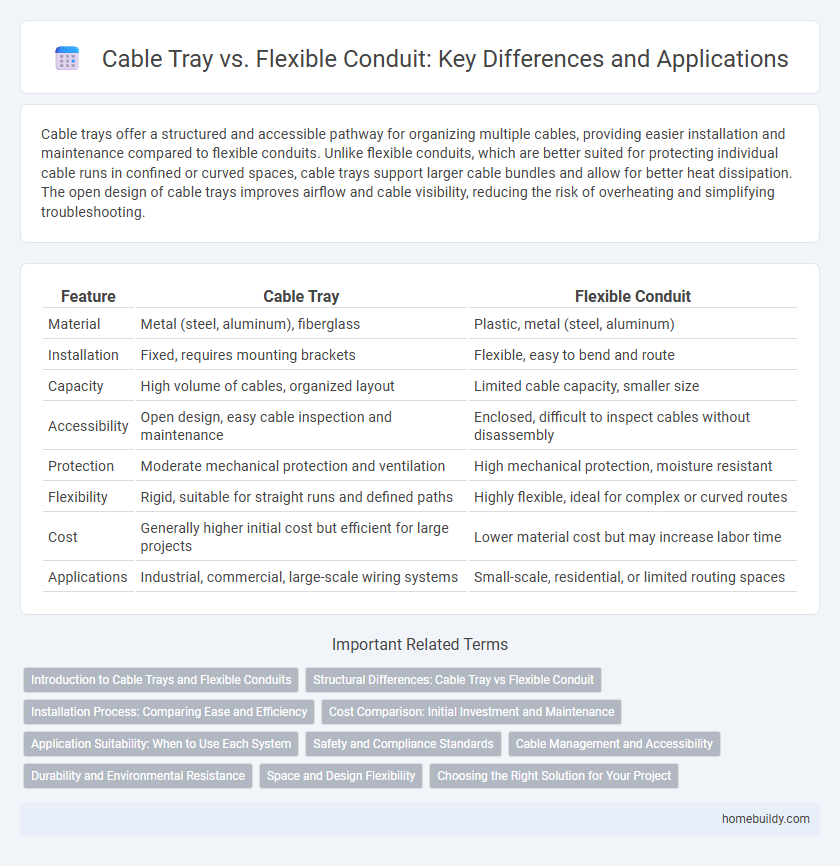

Cable tray vs flexible conduit Infographic
