homebuildy.com Flexible cable trays provide enhanced adaptability for routing cables around obstacles and accommodating changes in building layouts, making them ideal for complex or evolving installations. In contrast, rigid cable trays offer superior structural support and durability, ensuring secure cable management in environments where stability and heavy load-bearing are priorities. Choosing between flexible and rigid cable trays depends on the specific requirements of the project, including space constraints, load capacity, and future scalability.
Table of Comparison
| Feature | Flexible Cable Tray | Rigid Cable Tray |
|---|---|---|
| Material | Flex PVC, Steel mesh, or Fabric | Steel, Aluminum, or Fiberglass |
| Flexibility | Highly flexible, easily bends around obstacles | Inflexible, fixed straight sections |
| Installation | Quick and adaptable to complex routes | Requires precise measurement and fitting |
| Applications | Dynamic environments, machinery with vibration | Static cable runs, industrial and commercial setups |
| Load Capacity | Lower, suited for light cables | Higher, supports heavy cable bundles |
| Durability | Moderate, flexible but less resistant to impact | High, robust and impact resistant |
| Cost | Generally lower initial cost | Higher initial cost but longer lifespan |
| Maintenance | Easy to adjust, replace cables quickly | Requires tools and partial dismantling for access |
Introduction to Flexible and Rigid Cable Trays
Flexible cable trays offer adaptability in routing cables around obstacles, accommodating complex architectural layouts with ease. Rigid cable trays provide robust support and structural integrity for cable management in straightforward, linear installations. Selecting the appropriate tray type depends on project requirements such as space constraints, load capacity, and installation environment.
Key Differences Between Flexible and Rigid Cable Trays
Flexible cable trays offer adaptability for routing cables around obstacles and corners, making them ideal for complex or changing layouts. Rigid cable trays provide strong structural support and durability, suited for long, straight cable runs in industrial or commercial installations. The key difference lies in flexibility versus strength, with flexible trays enabling dynamic cable management and rigid trays ensuring stability and protection.
Material Composition and Construction
Flexible cable trays are typically made from high-grade stainless steel or aluminum alloy, designed with articulated sections and hinges that allow bending and easy installation around obstacles. Rigid cable trays are constructed from solid steel, aluminum, or fiberglass materials, featuring a fixed, sturdy frame that provides robust support for heavy-duty cable management. Material composition in flexible trays prioritizes flexibility and corrosion resistance, while rigid trays focus on strength and durability to support high cable loads in industrial settings.
Installation Processes and Techniques
Flexible cable trays facilitate easier installation in complex or confined spaces, allowing bends and curves without additional fittings, which reduces labor time and material costs. Rigid cable trays require precise measurements and additional components like bends and connectors to navigate obstacles, demanding more detailed planning and skilled labor for installation. Techniques for flexible trays often involve simple cutting and securing with clamps, while rigid trays necessitate drilling, bolting, and alignment for structural integrity.
Load Capacity and Strength Comparison
Flexible cable trays exhibit lower load capacity and strength compared to rigid cable trays due to their design using bendable materials that accommodate complex routing but limit heavy load support. Rigid cable trays, typically made from steel or aluminum, provide superior structural integrity and can sustain higher loads, making them ideal for industrial applications requiring robust cable management. The choice between flexible and rigid cable trays depends on the specific load requirements and environmental conditions of the installation.
Flexibility and Adaptability in Complex Layouts
Flexible cable trays offer superior adaptability in complex layouts by easily conforming to irregular shapes and tight spaces, making them ideal for dynamic routing and frequent modifications. Rigid cable trays, while robust and durable, lack the versatility needed for intricate installations due to their fixed shapes and limited bending capabilities. Choosing flexible cable trays enhances installation efficiency and reduces the need for additional connectors or custom supports in challenging environments.
Cost Considerations and Budget Impacts
Flexible cable trays generally involve higher initial costs due to specialized materials and installation requirements, impacting project budgets significantly. Rigid cable trays offer lower upfront expenses and simpler installation processes, making them cost-effective for large-scale or long-term infrastructures. Budget decisions must weigh maintenance costs and adaptability to changing layouts, where flexible trays could reduce future modifications expenses despite higher initial investments.
Maintenance and Long-Term Performance
Flexible cable trays require less maintenance due to their ability to accommodate structural shifts and vibrations without damage, reducing the risk of cable wear and system downtime. Rigid cable trays offer superior long-term performance in stable installations with minimal mechanical stress, providing robust support and protection for cables over extended periods. The choice between flexible and rigid trays significantly impacts maintenance schedules and the durability of cable infrastructure in industrial and commercial settings.
Suitable Applications for Each Type
Flexible cable trays are ideal for complex routing environments such as industrial plants and data centers where frequent changes or bends in the cable path are required, providing adaptability in confined or irregular spaces. Rigid cable trays suit long, straight runs in commercial buildings or infrastructure projects, offering robust support and easy installation for structured cable management. Selecting between flexible and rigid trays depends on the installation environment, with flexible trays preferred for dynamic layouts and rigid trays for fixed, stable routes.
Factors to Consider When Choosing Between Flexible and Rigid Cable Trays
When selecting between flexible and rigid cable trays, key factors include installation environment, cable routing complexity, and load capacity requirements. Flexible cable trays offer superior adaptability for intricate pathways and frequent changes, while rigid trays provide enhanced strength and stability for heavy cable loads. Consideration of space constraints, maintenance accessibility, and budget also plays a critical role in optimizing cable management solutions.

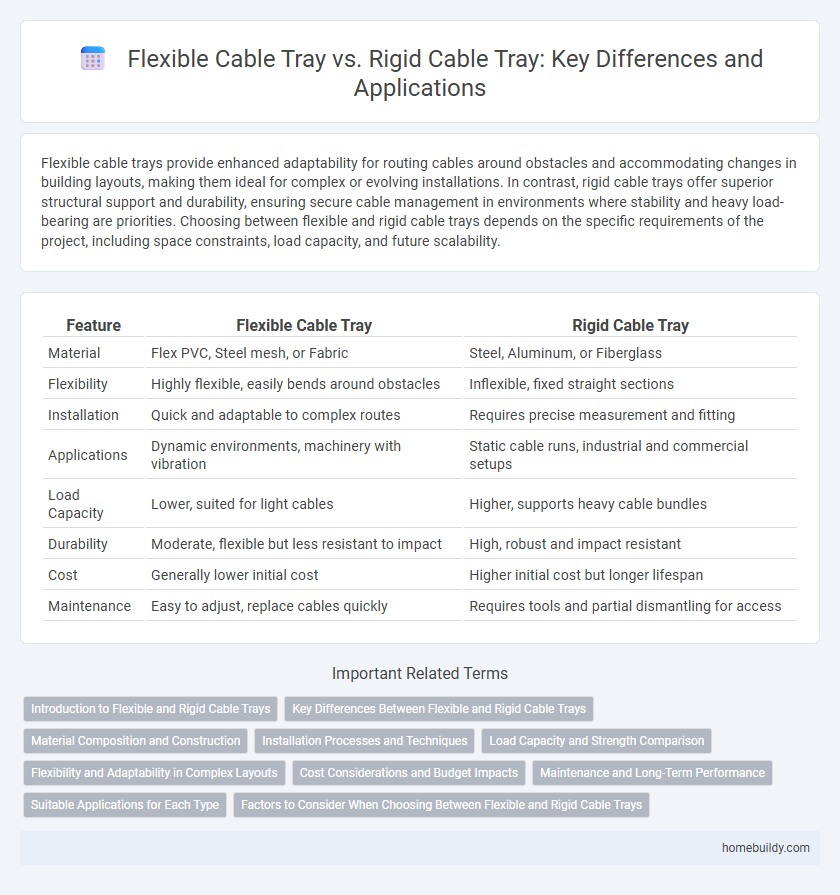

Flexible cable tray vs Rigid cable tray Infographic
