homebuildy.com Ladder cable trays provide superior ventilation and are ideal for supporting heavy cables in industrial environments due to their open rung design. Perforated cable trays offer enhanced cable protection and are suitable for environments requiring limited airflow or dust control, thanks to their solid surface with holes. Choosing between ladder and perforated cable trays depends on factors like cable weight, environmental conditions, and airflow requirements.
Table of Comparison
| Feature | Ladder Cable Tray | Perforated Cable Tray |
|---|---|---|
| Design | Open ladder-like structure with side rails and rungs | Solid bottom with perforated holes for ventilation |
| Ventilation | Excellent airflow, ideal for heat dissipation | Moderate ventilation through perforations |
| Cable Support | Supports heavy and large cables efficiently | Suitable for medium to light cable weight |
| Installation | Easy to install with adjustable spans | Requires careful alignment due to solid base |
| Durability | Highly durable in industrial environments | Good durability, best in less harsh areas |
| Cost | Typically higher due to material and strength | Generally more economical |
| Application | Ideal for heavy power cables and outdoor use | Suitable for light control cables and indoor use |
Introduction to Cable Tray Systems
Ladder cable trays feature two side rails connected by rungs, providing excellent ventilation and strength for heavy cable loads, ideal for industrial environments. Perforated cable trays have a solid base with numerous holes, offering better support for smaller cables and improved air circulation to prevent overheating. Both systems facilitate organized cable management, supporting easy installation and maintenance across various electrical and communication applications.
What is a Ladder Cable Tray?
A Ladder cable tray is a type of cable management system featuring two side rails connected by individual rungs that resemble a ladder, allowing for excellent ventilation and heat dissipation. It is ideal for heavy-duty cable installations and environments requiring easy cable access and maintenance. Compared to perforated cable trays, ladder trays provide superior support for cables while minimizing dust accumulation and water retention.
What is a Perforated Cable Tray?
A perforated cable tray is a type of cable management system featuring a flat base with evenly spaced holes, allowing for excellent ventilation and drainage. This design helps prevent cable overheating by promoting airflow and facilitates easy cable attachment and maintenance. Unlike ladder cable trays, which have side rails and rungs, perforated cable trays provide a solid surface ideal for supporting smaller diameter cables and sensitive fiber optics.
Key Differences Between Ladder and Perforated Cable Trays
Ladder cable trays feature side rails connected by rungs, providing excellent ventilation and support for heavy cables, ideal for power distribution. Perforated cable trays have a solid base with multiple holes, offering better drainage and reduced dust accumulation, suited for lighter cable loads and indoor environments. The key differences lie in structural design, load capacity, and environmental suitability, influencing the choice based on installation requirements and cable management needs.
Material and Construction Comparison
Ladder cable trays are typically constructed from steel or aluminum with solid rungs, providing robust support for heavy cable loads and excellent ventilation. Perforated cable trays are usually made from galvanized steel or stainless steel, featuring a solid base with regularly spaced perforations to allow airflow and drainage while offering moderate load capacity. The choice between the two depends on the required strength, corrosion resistance, and cable management needs in industrial or commercial installations.
Load Capacity: Ladder vs. Perforated Cable Trays
Ladder cable trays offer superior load capacity compared to perforated cable trays due to their robust construction with parallel rungs that provide strong support for heavy cables. Perforated cable trays, featuring a solid base with multiple holes, are best suited for lighter loads and applications needing better airflow and drainage. Choosing between ladder and perforated cable trays depends on the specific weight requirements and environmental conditions of the cable installation.
Ventilation and Heat Dissipation
Ladder cable trays offer superior ventilation due to their open design, allowing air to flow freely around cables, which effectively dissipates heat and reduces the risk of overheating in high-power applications. Perforated cable trays, while providing some ventilation through their drilled holes, limit airflow compared to ladder trays, making them less efficient in heat dissipation. Effective heat management in cable trays is crucial to maintain cable performance and extend the lifespan of electrical systems.
Installation and Maintenance Considerations
Ladder cable trays offer easy installation and maintenance due to their open structure, which allows for straightforward cable placement and excellent ventilation, preventing heat buildup. Perforated cable trays require more careful handling during installation as cables must be threaded through the smaller holes, but they provide better cable support and protection against dust and debris. Maintenance of ladder trays is quicker and less labor-intensive since cables are readily accessible, whereas perforated trays may necessitate partial disassembly for thorough inspection or repairs.
Typical Applications and Industry Use Cases
Ladder cable trays are ideal for heavy-duty power cables and industrial environments such as manufacturing plants, oil refineries, and large commercial buildings due to their robust design and open structure that allows superior ventilation and easy cable inspection. Perforated cable trays, featuring a solid base with multiple perforations, are commonly used in data centers, telecommunication facilities, and light industrial settings where enhanced cable protection and reduced dust accumulation are essential. Both types support efficient cable management but cater to different operational needs based on load capacity, airflow requirements, and environmental conditions.
Choosing the Right Cable Tray for Your Project
Ladder cable trays provide excellent ventilation and support for heavy or large bundles of cables, making them ideal for industrial applications requiring robust cable management and easy cable maintenance. Perforated cable trays offer a balance between ventilation and protection, suitable for environments where dust or small debris need to be minimized while maintaining moderate airflow. Select ladder trays for durability and load capacity, while perforated trays suit projects demanding cleaner cable routing with medium load requirements.

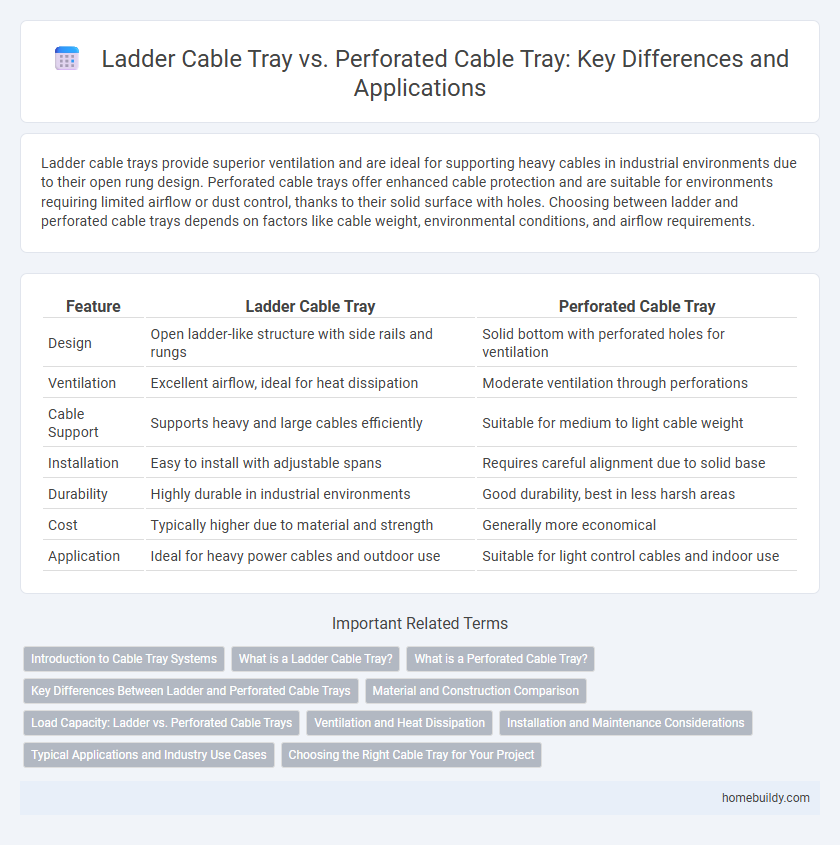

Ladder cable tray vs Perforated cable tray Infographic
