homebuildy.com Cavity wall ties are designed to connect the inner and outer leaves of cavity walls, providing structural stability while preventing moisture transfer between the two layers. Solid wall ties, on the other hand, are used in traditional solid masonry walls to reinforce the structure and improve load distribution without the need to bridge a cavity. Selecting the appropriate wall tie ensures durability, moisture resistance, and overall strength in different wall construction types.
Table of Comparison
| Feature | Cavity Wall Tie | Solid Wall Tie |
|---|---|---|
| Purpose | Connects inner and outer leafs of cavity walls | Secures solid brick or block walls together |
| Wall Type | Cavity walls (two separate leaves with gap) | Solid walls (single, thick masonry) |
| Material | Stainless steel or galvanized steel | Galvanized steel or stainless steel |
| Corrosion Resistance | High (must resist moisture in cavity) | Moderate (less exposure to moisture) |
| Installation | Placed across cavity during construction | Embedded within solid masonry |
| Load Distribution | Distributes lateral forces between wall leaves | Provides uniform load distribution within solid wall |
| Typical Sizes | 3mm thickness, lengths vary by cavity width | Varies, typically thicker for solid walls |
| Cost | Generally higher due to corrosion protection | Typically lower |
Introduction to Wall Ties: Cavity vs Solid
Wall ties are critical components in masonry construction, designed to securely connect the outer and inner walls to improve structural stability. Cavity wall ties are specifically engineered to bridge the gap between two separate leaves of masonry, ensuring moisture resistance and load distribution, while solid wall ties are used to reinforce solid walls by binding the masonry units together. The choice between cavity and solid wall ties depends on wall type, environmental exposure, and required structural support, with cavity ties often featuring corrosion-resistant materials for enhanced durability.
What Are Cavity Wall Ties?
Cavity wall ties are metal fasteners designed to connect the inner and outer walls of cavity wall construction, ensuring structural stability and preventing separation. These ties are typically made from stainless steel or galvanized steel to resist corrosion and maintain durability within the cavity space. Unlike solid wall ties, cavity wall ties accommodate the gap between the two walls, facilitating moisture drainage and improving building insulation performance.
Understanding Solid Wall Ties
Solid wall ties are specifically designed to anchor masonry walls that do not have a cavity, providing structural stability by connecting the outer and inner layers of solid brick or block construction. Unlike cavity wall ties, which bridge the gap between two separate walls, solid wall ties are embedded directly into the solid wall fabric to prevent lateral movement and improve resistance to wind loads and thermal expansion. Selecting corrosion-resistant materials such as stainless steel for solid wall ties ensures long-term durability and compliance with building regulations.
Key Differences Between Cavity and Solid Wall Ties
Cavity wall ties are designed to connect the inner and outer leaves of a cavity wall, providing structural stability while preventing moisture transfer between the two layers, typically made from stainless steel or galvanized metal for corrosion resistance. Solid wall ties, on the other hand, are used in solid masonry walls to bind materials together, often made from carbon steel or galvanized steel, focusing on load-bearing support rather than preventing moisture penetration. The key differences lie in their placement, material composition, and primary function--cavity wall ties bridge two separate wall sections with moisture resistance in mind, whereas solid wall ties reinforce a single, solid wall structure.
Materials Commonly Used in Wall Ties
Cavity wall ties are commonly made from stainless steel or galvanized steel, providing excellent corrosion resistance for long-term durability in damp environments. Solid wall ties often use wrought iron or galvanized steel, offering strong structural support but may require protective coatings to prevent rust. Modern innovations include plastic and composite materials that enhance resistance to moisture and chemical degradation while maintaining sufficient tensile strength.
Installation Process: Cavity vs Solid Wall Ties
Cavity wall ties require precise spacing and positioning to ensure proper anchoring between the inner and outer leaves, typically installed with corrosion-resistant materials like stainless steel or galvanized steel to prevent rusting. Solid wall ties are embedded directly into solid masonry, requiring careful alignment to maintain structural integrity and are often fixed using mortar or mechanical anchors depending on wall thickness. Proper installation of both tie types is critical to prevent wall movement and moisture ingress, with cavity wall ties demanding more detailed installation processes due to their function in spanning the cavity gap.
Performance and Durability Comparison
Cavity wall ties, typically made from stainless steel or galvanized steel, offer superior corrosion resistance and long-term performance by bridging the gap between inner and outer walls, ensuring structural stability while allowing moisture to drain effectively. Solid wall ties, often constructed from simple steel or wrought iron, are prone to rust and corrosion over time, leading to reduced durability and potential structural issues. The performance of cavity wall ties surpasses that of solid wall ties due to their enhanced ability to maintain wall integrity and prevent moisture ingress, making them the preferred choice in modern construction applications.
Common Issues and Failures with Wall Ties
Cavity wall ties commonly suffer from corrosion due to moisture ingress, leading to reduced structural integrity and potential wall separation. Solid wall ties, often made of metal or plastic, face issues such as inadequate embedment depth and poor installation, which can compromise wall stability. Both wall tie types fail when subjected to excessive movement or thermal expansion, resulting in cracked mortar joints and weakened wall performance.
Choosing the Right Wall Tie for Your Project
Choosing the right wall tie depends on the type of wall construction, with cavity wall ties specifically designed to connect two separate leaves, ensuring stability and moisture resistance. Solid wall ties are suited for single, solid walls, providing structural support without bridging a cavity. Selecting appropriate materials, such as stainless steel for corrosion resistance, and considering wall thickness and environmental exposure are critical factors in optimizing wall tie performance and long-term durability.
Maintenance and Replacement Considerations
Cavity wall ties generally require less maintenance due to their corrosion-resistant materials such as stainless steel or galvanized steel, while solid wall ties, often made of older metal types, may need more frequent inspections for rust and structural integrity. Replacement considerations for cavity wall ties involve accessing the cavity to insert new ties with minimal disturbance, whereas solid wall ties often necessitate more invasive procedures due to their integration within solid masonry walls. Proper maintenance and timely replacement of both types are essential to prevent moisture ingress and maintain wall stability.

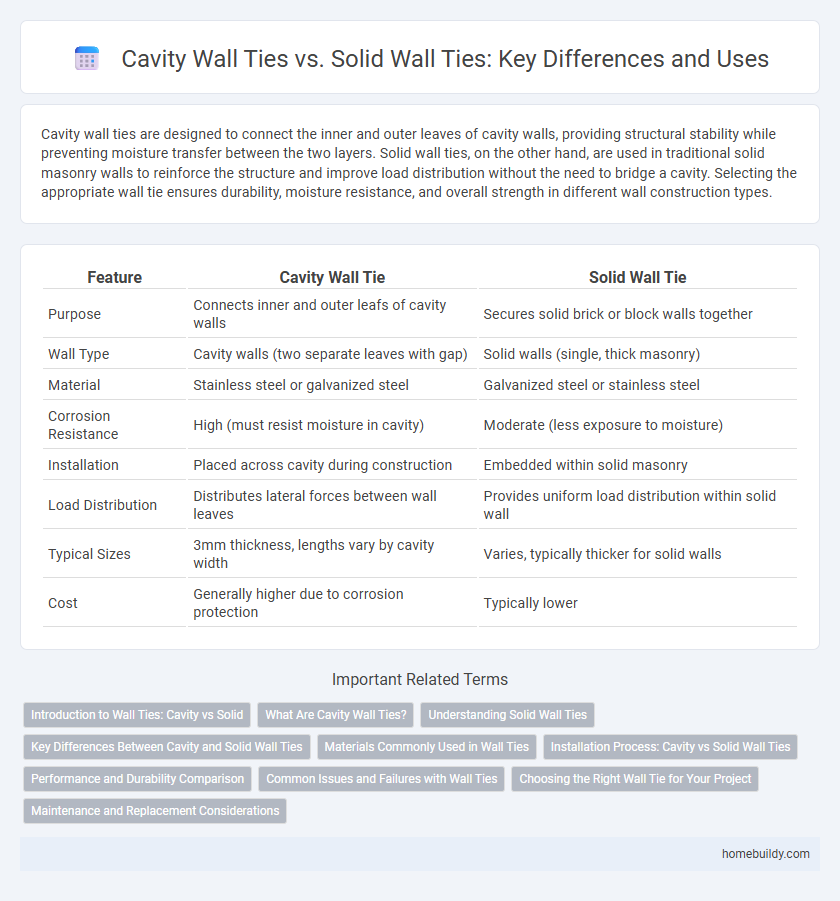

Cavity wall tie vs Solid wall tie Infographic
