homebuildy.com Roof tie rods provide structural support by preventing roof trusses from spreading outward, maintaining the stability and integrity of the roof framework. Floor tie rods, on the other hand, reinforce flooring systems by counteracting forces that cause lateral movement or deformation, ensuring a level and secure floor structure. Both types of tie rods are essential for enhancing overall building strength but serve distinct roles based on their positioning within the structure.
Table of Comparison
| Feature | Roof Tie Rod | Floor Tie Rod |
|---|---|---|
| Primary Function | Supports and stabilizes roof structures | Provides structural support between floor joists |
| Typical Material | Steel or high-tensile rods | Steel rods or reinforced bars |
| Load Type | Tensile forces from roof weight and wind | Tensile and shear forces from floor loads |
| Installation Location | Across roof trusses or rafters | Between floor joists or beams |
| Common Use | Prevent roof spread and maintain roof integrity | Maintain floor stability and prevent sagging |
| Typical Size | Diameter ranges 10-20 mm | Diameter ranges 12-25 mm |
| Maintenance | Regular inspections for tension and corrosion | Periodic checks for alignment and rust |
Introduction to Tie Rods: Roof vs Floor Applications
Roof tie rods are structural components designed to resist tension and stabilize roof frameworks, often used in truss systems to prevent sagging and lateral displacement. Floor tie rods function similarly by enhancing floor slab integrity and distributing loads, minimizing deflection and vibration in multi-story buildings. Both types of tie rods are critical in maintaining structural stability but differ in design specifications and placement based on vertical and horizontal load requirements.
Structural Roles of Roof Tie Rods
Roof tie rods play a critical role in stabilizing the structure by counteracting lateral forces and preventing roof deformation, ensuring the integrity of trusses and rafters. Unlike floor tie rods, which primarily resist tensile forces in flooring systems, roof tie rods maintain the alignment and load distribution of roofing components under dynamic loads such as wind and snow. This structural function is essential for preserving the overall stability and safety of a building's roof framework.
Structural Roles of Floor Tie Rods
Floor tie rods play a critical structural role by providing lateral stability and preventing floor joists from spreading under load. Unlike roof tie rods, which primarily resist tensile forces in roof trusses to maintain the roof's shape, floor tie rods help maintain the horizontal alignment of floor framing elements. Their integration ensures load distribution consistency, reinforcing the integrity of multi-level building frameworks.
Key Differences Between Roof and Floor Tie Rods
Roof tie rods primarily provide lateral support to prevent walls from spreading under roof loads, while floor tie rods stabilize floor joists and prevent sagging. Roof tie rods are often tensioned components installed near the roof structure, whereas floor tie rods run horizontally within floor framing to maintain structural integrity. The material strength and load specifications differ, with roof tie rods typically designed to resist higher tensile forces due to snow and wind loads compared to floor tie rods.
Material Selection for Roof and Floor Tie Rods
Roof tie rods are typically constructed from galvanized steel or stainless steel to resist corrosion and withstand outdoor environmental exposure, ensuring structural integrity in weather-exposed areas. Floor tie rods often utilize high-strength carbon steel, which provides superior tensile strength required to support heavy loads within buildings, combined with protective coatings to prevent rust in indoor, moisture-prone environments. Material selection prioritizes durability, tensile capacity, and corrosion resistance based on the tie rod's specific function and location in the structure.
Load Distribution in Roof vs Floor Tie Rod Systems
Roof tie rods primarily manage tensile forces by stabilizing trusses and preventing outward spread under roof loads, ensuring even load distribution across the structure. Floor tie rods resist horizontal thrust from floor joists and flooring materials, distributing live and dead loads to supporting walls or beams. The load distribution in roof tie rod systems emphasizes lateral stability, whereas floor tie rod systems focus on controlling deflection and shear forces within floor assemblies.
Installation Methods for Roof and Floor Tie Rods
Roof tie rods are typically installed through tensioning methods that anchor the rod between opposing roof rafters, utilizing threaded ends and turnbuckles to adjust tension and ensure structural stability against lateral forces. Floor tie rods, in contrast, are usually embedded within concrete slabs or fixed to floor joists using anchor plates and bolts to resist floor spreading and maintain load distribution. Proper installation of both types demands precision in alignment and secure fastening to optimize the building's overall integrity and durability.
Maintenance Requirements: Roof vs Floor Tie Rods
Roof tie rods require frequent inspection and maintenance due to their constant exposure to weather elements such as rain, wind, and UV radiation, which can cause corrosion and structural fatigue. Floor tie rods, being protected from external environmental factors, demand less frequent maintenance but still need routine checks for signs of wear or mechanical stress, especially in high-load applications. Proper lubrication and timely replacement of worn components are crucial for both types to ensure structural integrity and safety.
Common Failures and Solutions in Roof and Floor Tie Rods
Roof tie rods commonly experience corrosion and loosening due to exposure to weather elements, which compromises structural stability; regular inspection and application of protective coatings effectively mitigate these issues. Floor tie rods often suffer from tensile stress fractures and misalignment caused by dynamic loads, necessitating periodic tension checks and realignment procedures to maintain optimal performance. Both roof and floor tie rod failures can be prevented through routine maintenance and timely replacement of damaged components to ensure overall structural integrity.
Choosing the Right Tie Rod for Your Structure
Roof tie rods are designed to resist lateral forces and provide stability to roof structures, preventing sagging and maintaining shape under wind and snow loads. Floor tie rods, on the other hand, primarily handle tensile forces and help support floor joists by preventing spreading or shifting. Selecting the right tie rod depends on load requirements, material compatibility, and specific structural demands to ensure optimal durability and safety.

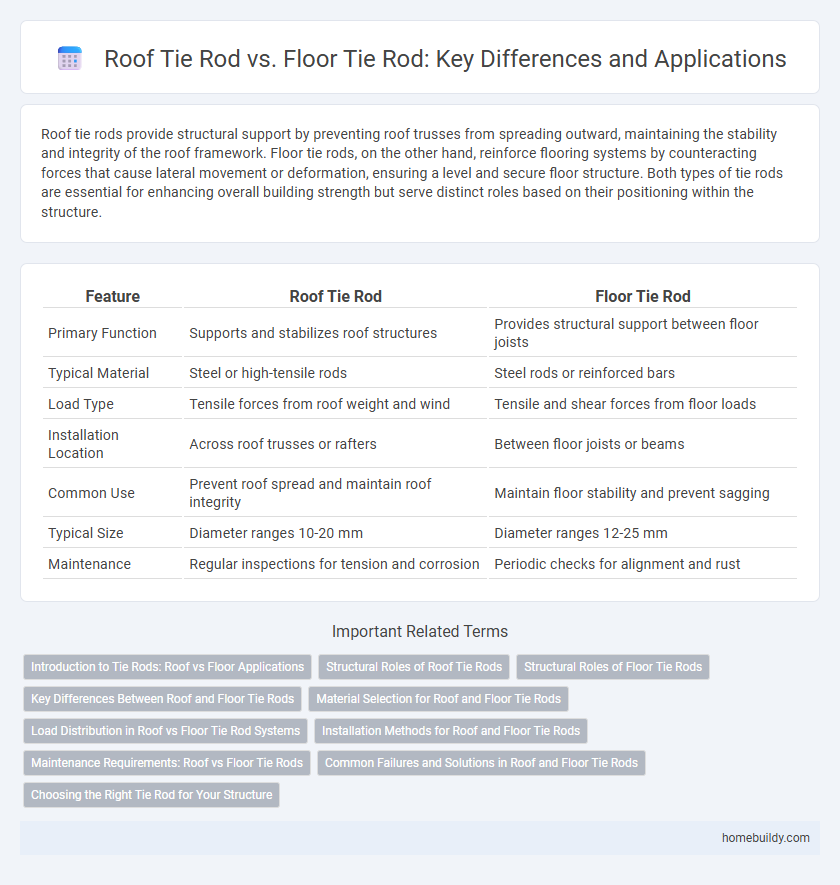

roof tie rod vs floor tie rod Infographic
