homebuildy.com The connection between the sill plate and wall stud is crucial for structural integrity and load transfer in framing. Proper anchoring of the sill plate to the foundation ensures stability, while secure fastening of wall studs to the sill plate provides vertical support for the wall assembly. Using bolts or anchor straps for the sill plate and nails or screws for wall studs enhances the overall durability and resistance to lateral forces.
Table of Comparison
| Feature | Sill Plate | Wall Stud Connection |
|---|---|---|
| Definition | Horizontal wood member anchored to the foundation | Vertical framing members attached to the sill plate |
| Primary Function | Distributes load from walls to foundation | Supports wall structure and transfers loads upward |
| Connection Method | Anchored with bolts or straps to foundation | Attached to sill plate using nails or screws |
| Material | Treated lumber to resist moisture and decay | Typically standard framing lumber |
| Importance in Framing | Critical for structural stability and moisture barrier | Essential for framing strength and load transfer |
| Installation Sequence | Installed first on foundation | Placed after sill plate is secured |
Understanding Sill Plates and Wall Studs
Sill plates serve as the foundational horizontal members anchored to the foundation, providing a secure base for the vertical wall studs that form the structural framework of a building. The connection between sill plates and wall studs is critical for load transfer, ensuring stability and resistance to lateral forces such as wind and seismic activity. Proper fastening methods, including the use of anchor bolts and metal connectors, enhance the integrity of this interface, preventing shifting and maintaining the building's overall structural performance.
Structural Functions: Sill Plate vs Wall Stud
The sill plate serves as the foundational structural element anchoring the building to the concrete slab or foundation, distributing loads and providing a secure base for the wall assembly. Wall studs, typically spaced 16 or 24 inches apart, support vertical loads from the roof and upper floors while transferring these forces down to the sill plate. The connection between the sill plate and wall studs ensures structural stability by enabling load transfer, resistance to lateral forces, and maintaining the integrity of the framed wall system.
Types of Sill Plate to Wall Stud Connections
Types of sill plate to wall stud connections include toe-nailing, metal plate connectors, and anchor bolts, each offering different levels of structural stability. Toe-nailing involves driving nails at an angle through the sill plate into the bottom of the wall stud, commonly used for standard framing. Metal plate connectors and anchor bolts provide enhanced resistance to seismic and wind forces, making them ideal for high-stress construction environments.
Materials Used for Sill Plate and Wall Stud Connections
Sill plates are typically made from pressure-treated lumber or rot-resistant wood species such as cedar or redwood to withstand moisture and prevent decay at the foundation interface. Wall studs, commonly constructed from untreated dimensional lumber like Douglas fir or pine, rely on connectors such as anchor bolts, metal straps, or framing anchors to secure them firmly to the sill plate. Using corrosion-resistant fasteners like galvanized or stainless steel is essential to maintain the integrity of the sill plate and wall stud connection in varying environmental conditions.
Fastening Methods for Secure Connections
Fastening methods for the sill plate to wall stud connection typically involve using anchor bolts, nails, or screws to ensure structural integrity. Anchor bolts embedded in the concrete foundation secure the sill plate, while framing nails or screws attach the wall studs to the sill plate for a robust connection. Proper fastening techniques prevent shifting, enhance load transfer, and improve overall building stability.
Building Codes for Sill Plate and Wall Stud Integration
Building codes require that sill plates be anchored securely to the foundation using bolts or straps to resist lateral forces and prevent uplift. Wall studs must be properly aligned and fastened to the sill plate with approved nails or connectors to ensure structural stability and load transfer. Compliance with International Residential Code (IRC) sections R317 and R602 ensures proper sill plate and wall stud integration for safe and durable framing assemblies.
Moisture Protection at the Sill Plate Connection
Proper moisture protection at the sill plate connection is critical to prevent water infiltration and subsequent wood rot or mold growth. Installing a continuous sill gasket or moisture barrier between the sill plate and foundation creates a seal that blocks capillary action and vapor transmission. Using treated lumber for sill plates combined with proper flashing and drainage strategies enhances durability and maintains the integrity of the wall stud connection.
Common Connection Mistakes and How to Avoid Them
Incorrect alignment of the sill plate and wall studs often causes structural instability and uneven load distribution. Overlooking proper anchoring techniques, such as omitting anchor bolts or using inadequate fasteners, leads to weak connections prone to shifting during seismic or wind events. Ensuring precise placement with correctly sized anchor bolts spaced according to building codes prevents common connection failures and enhances overall wall system integrity.
Enhancing Structural Integrity at the Sill-Stud Joint
The connection between the sill plate and wall studs plays a crucial role in enhancing the structural integrity of a building by providing a stable and secure base for load transfer. Using anchor bolts and metal connectors at the sill-stud joint increases resistance to lateral forces such as wind and seismic activity. Proper alignment and fastening techniques prevent shifting and warping, ensuring the framed wall maintains its strength and durability over time.
Best Practices for Long-Lasting Sill Plate to Wall Stud Connections
Securing the sill plate to wall studs requires using corrosion-resistant anchor bolts or screws embedded at regular intervals, typically every 6 to 12 inches, to ensure structural stability and resistance to seismic and wind forces. Applying a continuous gasket or sill sealer between the sill plate and the foundation prevents moisture intrusion and enhances energy efficiency by reducing air leaks. Proper alignment and tight fastening of wall studs to the sill plate minimize wood shrinkage gaps, maintaining load transfer and preventing future framing movement.

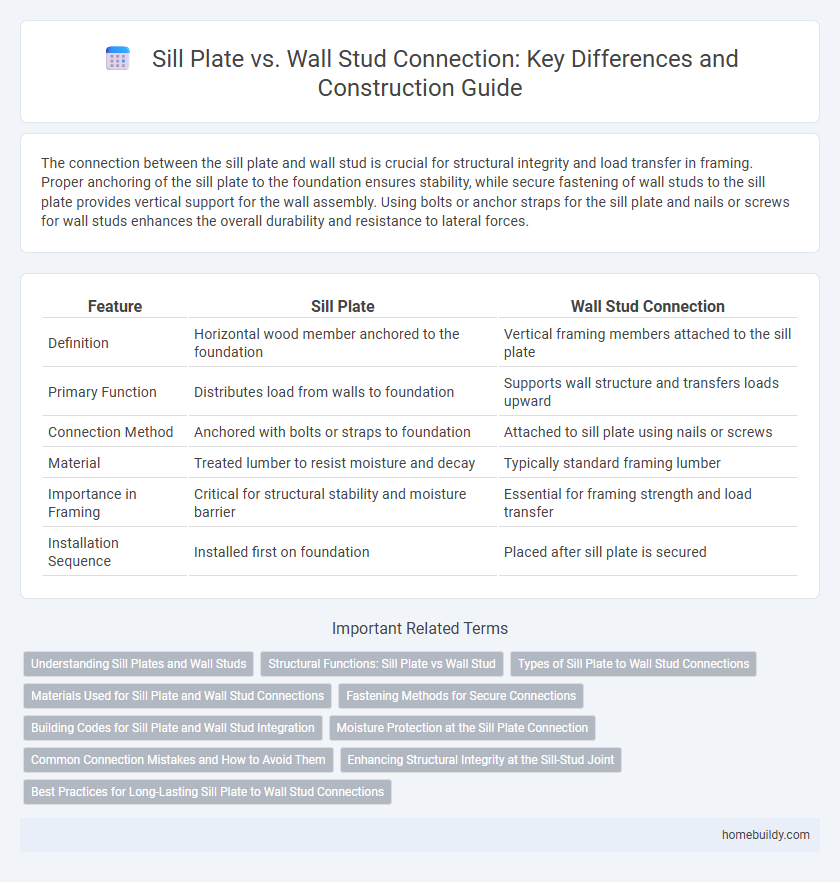

Sill plate vs Wall stud connection Infographic
