homebuildy.com A pipe strap is designed to secure pipes to walls or other surfaces, typically featuring a U-shaped metal band that tightly holds plumbing pipes in place. A conduit strap, on the other hand, is specifically made to fasten electrical conduit, ensuring that wiring is protected and organized along surfaces. Both serve to stabilize and protect different types of tubing, but pipe straps are mainly used in plumbing, while conduit straps are essential in electrical installations.
Table of Comparison
| Feature | Pipe Strap | Conduit Strap |
|---|---|---|
| Purpose | Secures pipes in plumbing and piping systems | Secures electrical conduits in wiring installations |
| Material | Typically steel or stainless steel, sometimes plastic | Usually steel, galvanized steel, or PVC |
| Structure | Rigid, designed for heavy pipe support | Flexible to accommodate conduit bending |
| Size | Sized for various pipe diameters (e.g., 1/2" to 4") | Sized for conduit diameters (e.g., 1/2" to 2") |
| Installation | Secured with screws or bolts on solid surfaces | Mounted using screws or nails, often on studs or drywall |
| Use Case | Plumbing, HVAC, gas lines | Electrical wiring, cable management |
| Durability | High resistance to pressure and corrosion | Resistant to electrical interference and weather |
Introduction to Pipe Straps and Conduit Straps
Pipe straps securely fasten pipes to surfaces, ensuring stability and preventing movement in plumbing and HVAC systems. Conduit straps similarly hold electrical conduits in place but are specifically designed to accommodate the rigid or flexible tubing used in electrical wiring. Both types of straps are typically made from durable materials such as galvanized steel or plastic, chosen based on the environmental conditions and installation requirements.
Definition and Primary Functions
Pipe straps are metal or plastic straps designed to secure and support pipes by holding them firmly against surfaces, preventing movement and vibration. Conduit straps, specifically made for electrical conduit, focus on maintaining electrical conduit alignment and protecting wiring systems by firmly fastening conduits to walls or structural elements. The primary function of pipe straps is mechanical pipe stabilization, while conduit straps ensure electrical safety and system integrity.
Material Differences: Pipe Strap vs Conduit Strap
Pipe straps are commonly made from galvanized steel or stainless steel, providing robust corrosion resistance and strength suited for heavy-duty piping systems. Conduit straps often use lighter materials such as aluminum or plastic to accommodate electrical conduits, where flexibility and electrical non-conductivity are critical. The material selection impacts durability, corrosion resistance, and suitability for specific applications, with pipe straps favoring mechanical strength and conduit straps prioritizing safety and insulation.
Common Applications in Plumbing and Electrical Work
Pipe straps secure plumbing pipes, typically used for copper, PVC, and galvanized pipes in water supply and drainage systems. Conduit straps fasten electrical conduits, such as EMT, PVC, and flexible conduits, providing support and protection for electrical wiring in residential and commercial installations. Both ensure stability but differ in material compatibility and specific use in plumbing versus electrical systems.
Key Design Features and Construction
Pipe straps are typically made from galvanized steel or stainless steel, offering robust support for heavier pipes, while conduit straps are often lighter with a focus on electrical conduit protection. Key design features of pipe straps include thicker gauge metal and a more rigid construction to secure plumbing pipes firmly, whereas conduit straps prioritize flexibility and ease of installation for electrical wiring. The construction of pipe straps often incorporates corrosion-resistant coatings to withstand moisture environments, contrasting with conduit straps that may be insulated or designed with non-metallic materials to prevent electrical conduction.
Installation Techniques Compared
Pipe straps and conduit straps differ primarily in their installation techniques, with pipe straps typically requiring precise alignment and secure fastening around round pipes using screws or nails. Conduit straps are often installed with a focus on accommodating electrical conduit, involving spacing according to electrical code requirements and ensuring grounding continuity. Both types must be firmly anchored to structural surfaces, but conduit straps occasionally demand additional insulation or protection measures to prevent conduit damage.
Strength, Durability, and Load-Bearing Capacity
Pipe straps are typically made of thicker metal, providing greater strength and load-bearing capacity compared to conduit straps, which are designed mainly for electrical conduit support. The enhanced durability of pipe straps makes them ideal for heavier pipes and plumbing systems, resisting deformation and wear over time. Conduit straps, while sufficient for electrical conduits, generally offer less robustness and are not recommended for heavy load applications.
Cost Considerations and Budget Analysis
Pipe straps generally offer a more cost-effective solution compared to conduit straps due to their simpler design and material composition, leading to lower purchase and installation expenses. Budget analysis reveals that while conduit straps provide enhanced durability and corrosion resistance, their higher upfront costs may not justify use in low-moisture or indoor environments where pipe straps suffice. Selecting between pipe straps and conduit straps should consider long-term maintenance costs, with pipe straps favored in budget-conscious projects requiring basic support for piping systems.
Code Compliance and Industry Standards
Pipe straps and conduit straps serve distinct purposes in securing piping and electrical conduits, with both requiring adherence to specific code compliance and industry standards. Pipe straps must meet Plumbing Code requirements such as the IPC (International Plumbing Code) or UPC (Uniform Plumbing Code) that specify material type, spacing, and secure fastening to prevent pipe movement and support load. Conduit straps, governed by the National Electrical Code (NEC), must ensure electrical safety by properly grounding and securing electrical conduits, with standards specifying metal or plastic construction and spacing based on conduit type and installation conditions.
Choosing the Right Strap for Your Project
Pipe straps are designed specifically to secure plumbing pipes, offering enhanced durability and corrosion resistance for water and gas lines. Conduit straps are tailored for electrical conduits, providing flexibility and protection against electrical interference while maintaining secure installations. Selecting the right strap depends on the material being fastened--metal or plastic pipes require pipe straps, while electrical conduit applications need conduit straps for compliance with safety standards and optimal performance.

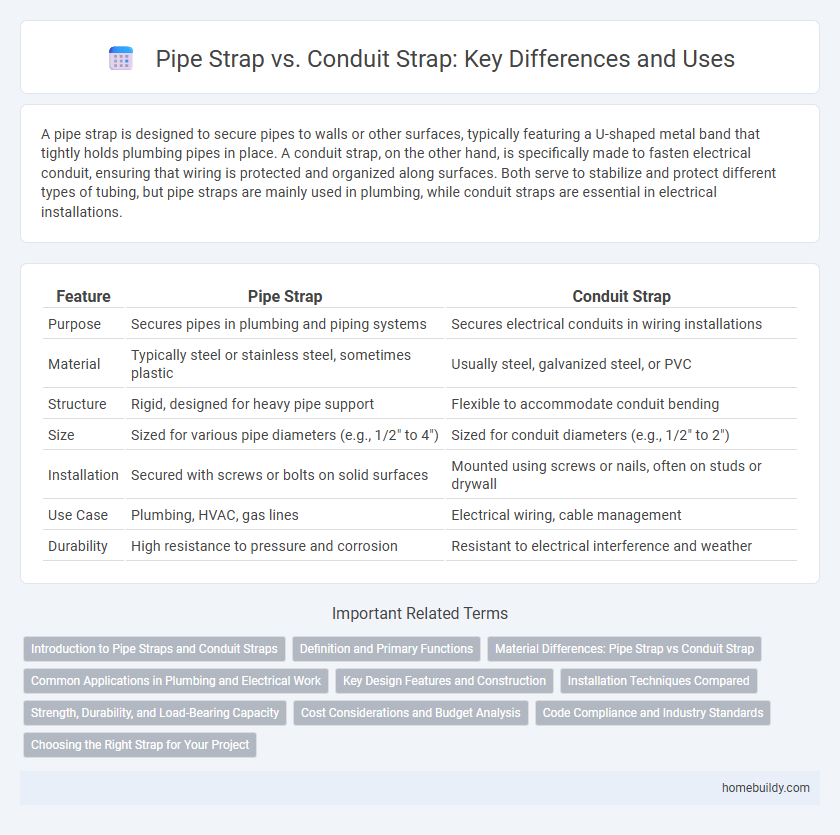

Pipe strap vs Conduit strap Infographic
