homebuildy.com Joist hangers and beam seats serve different structural purposes in framing construction; joist hangers provide secure support for joists, fastening them to beams or ledger boards, while beam seats offer a physical ledge where beams rest to transfer loads to posts or walls. Joist hangers ensure strong lateral connections and prevent twisting, whereas beam seats accommodate larger loads by supporting the entire beam weight directly. Choosing between joist hanger and beam seat depends on the framing design, load requirements, and desired stability of the structure.
Table of Comparison
| Feature | Joist Hanger | Beam Seat |
|---|---|---|
| Definition | Metal bracket supporting joists by connecting them to beams or ledger boards. | Structural ledge or bracket supporting the end of a beam directly on a post or wall. |
| Primary Use | Hangs joists, ensuring secure attachment and load transfer. | Seats beam ends, providing horizontal bearing support. |
| Load Direction | Transfers vertical and lateral loads from joist to beam. | Transfers vertical loads from beam to supporting member. |
| Installation | Nailed or screwed directly to joist and beam. | Beam rests on seat, secured by anchors or metal straps. |
| Material | Galvanized steel for corrosion resistance. | Typically wood or steel. |
| Applications | Deck framing, floor joist connections. | Heavy timber framing, beam-to-post connections. |
| Advantages | Strong lateral support, reduces twisting, easy to inspect. | Simple load bearing, accommodates large beams. |
| Limitations | Limited to joists of certain sizes, requires precise installation. | Less lateral stability, may need additional bracing. |
Definition of Joist Hanger and Beam Seat
A joist hanger is a metal connector designed to support the end of a joist by securely attaching it to a ledger board or beam, ensuring load transfer and structural stability. In contrast, a beam seat is a support element, often made from steel or wood, that provides a resting ledge or bracket for beams, allowing them to bear weight without the need for metal connectors. Understanding the distinct functions of joist hangers and beam seats is crucial for proper framing and load distribution in construction.
Structural Function: Joist Hanger vs Beam Seat
Joist hangers provide direct mechanical support by securely fastening joists to beams or ledger boards, ensuring load transfer and preventing lateral movement. Beam seats, typically consisting of bearing ledgers or corbels, support beams by resting them on a horizontal surface, distributing loads vertically onto the supporting wall or post. The choice between joist hangers and beam seats depends on structural requirements, load capacity, and the need for lateral stability in framing connections.
Material Types and Durability Comparison
Joist hangers typically use galvanized steel for superior corrosion resistance and strength, making them ideal for various weather conditions, while beam seats often incorporate heavy-duty steel or sometimes wood, which may be more susceptible to wear and moisture damage. Galvanized steel in joist hangers provides enhanced durability with less maintenance compared to beam seats that rely on fasteners and brackets potentially prone to loosening over time. Consequently, joist hangers offer a longer lifespan and more reliable load distribution in structural applications, particularly in outdoor or high-moisture environments.
Installation Methods: Joist Hanger vs Beam Seat
Joist hangers are installed by nailing or screwing metal hangers directly onto the beam and joist, providing a secure, flush connection that supports the joist's end. Beam seats require a ledge or bracket fixed to the beam, allowing the joist to rest on the seat and often necessitate bolts or screws to fasten the joist in place. Joist hangers offer easier alignment and faster installation, while beam seats typically require more precise measurements and additional hardware for stability.
Load-Bearing Capacity Differences
Joist hangers provide precise load distribution by securing the joist to the ledger board or beam, allowing for reliable vertical load support up to several thousand pounds depending on size and material. Beam seats, typically L-shaped brackets, offer robust support primarily by bearing the weight through the beam's end resting on the seat, often accommodating heavier loads but with less lateral stability compared to joist hangers. The load-bearing capacity of joist hangers is influenced by fastener type and spacing, whereas beam seats rely more on the beam's bearing surface and attachment quality to the supporting structure.
Cost Analysis: Joist Hanger vs Beam Seat
Joist hangers generally offer a more cost-effective solution than beam seats due to lower material and labor expenses, making them ideal for standard residential framing projects. Beam seats often involve higher installation costs due to the need for additional structural supports and more precise masonry or carpentry work. The choice between joist hangers and beam seats significantly impacts project budgets, with joist hangers providing economical benefits in straightforward load-bearing applications.
Application Scenarios in Construction
Joist hangers provide secure support for framing members in wood construction, ideal for connecting joists to beams with precise load distribution and minimal movement. Beam seats offer a robust ledge for resting large beams, commonly used in heavy timber framing or where greater load capacity and lateral stability are required. Selection depends on structural demands, with joist hangers favored in residential flooring and decking, while beam seats suit commercial or industrial projects with heavier framing components.
Advantages and Disadvantages Overview
Joist hangers provide superior support for securing joists to beams, ensuring strong lateral stability and efficient load transfer, which reduces structural movement and enhances durability. Beam seats, while easier and faster to install, often expose the joist ends to weather and potential decay, compromising long-term performance. Choosing between joist hangers and beam seats involves balancing the need for structural integrity and protection with installation time and cost considerations.
Common Mistakes and Installation Tips
Joist hangers and beam seats often get confused, but installing joist hangers incorrectly can lead to structural failures; common mistakes include improper nailing techniques, incorrect hanger sizing, and failure to secure the hanger flush to the supporting beam. Ensuring the use of manufacturer-specified nails, verifying the joist hanger fits snugly without gaps, and double-checking load capacities are critical installation tips. Beam seats require different fastening methods and load considerations, making it essential to follow specific guidelines for each connector type to maintain structural integrity.
Choosing the Right Connector for Your Project
Joist hangers provide strong lateral support by securing joists directly to beams, offering excellent load distribution and stability for floor framing. Beam seats, which act as ledgers supporting joists from below, are preferable for projects requiring easier installation or where joist removal may be necessary. Selecting between joist hangers and beam seats depends on factors like load capacity, installation complexity, and the structural requirements of your building design.

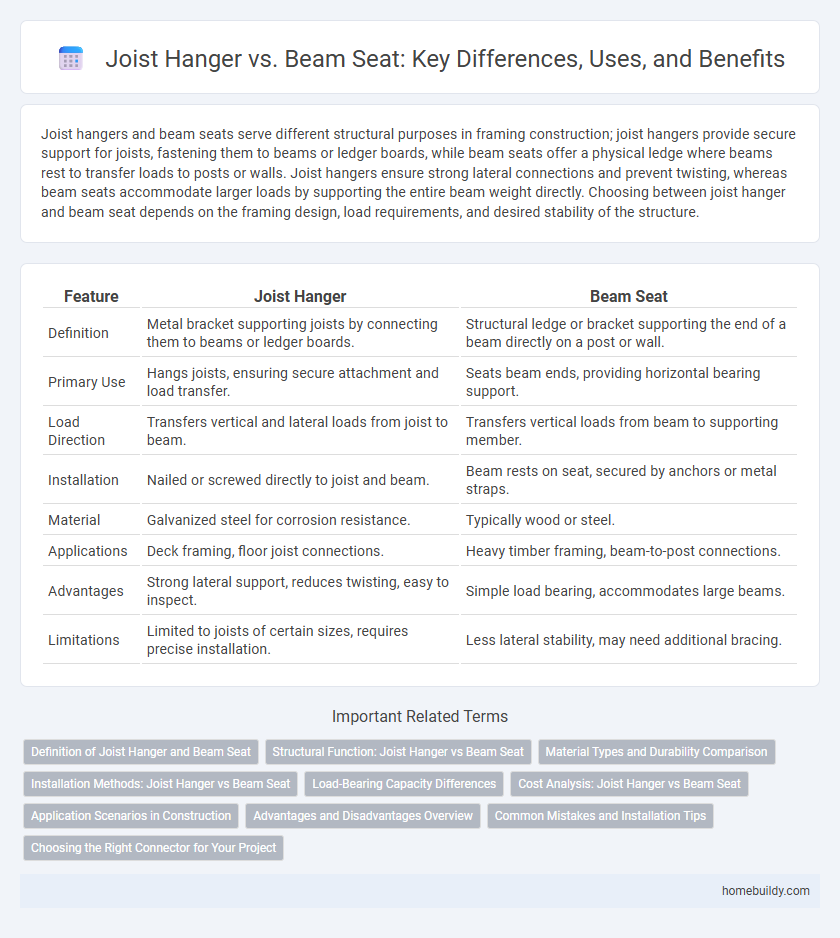

Joist hanger vs beam seat Infographic
