homebuildy.com Joist hangers provide strong, metal support by fitting directly around the joist ends, ensuring secure attachment to the ledger board or beam. Saddle hangers differ by cradling the joist from the bottom without fully wrapping around it, allowing for easier installation in specific framing situations. Both options offer reliable joist support, but the choice depends on load requirements and framing design preferences.
Table of Comparison
| Feature | Joist Hanger | Saddle Hanger |
|---|---|---|
| Purpose | Supports joists by securing end to ledger board | Supports joists by wrapping underneath beam |
| Installation | Requires nails or screws into ledger and joist | Requires fasteners along beam and joist underside |
| Load Capacity | High, suitable for heavy structural loads | Moderate, best for lighter load applications |
| Material | Galvanized steel or stainless steel | Galvanized steel or aluminum |
| Use Case | Decks, flooring, framing connections | Ceiling joists, decorative beams |
| Cost | Generally affordable and widely available | Typically more expensive due to design |
Overview of Joist Hanger and Saddle Hanger
Joist hangers and saddle hangers are essential hardware components used in wood framing to provide support and stability to joists. Joist hangers cradle the joist from beneath, offering strong vertical support ideal for deck and floor framing, while saddle hangers wrap over the top of the joist, distributing load along the joist's surface and often used in situations requiring load transfer between beams. Both types of hangers are made from galvanized steel to resist corrosion and ensure durability in structural applications.
Structural Differences Between Joist Hanger and Saddle Hanger
Joist hangers are metal brackets designed to support and transfer the load of joists to beams or ledgers, featuring a closed-sided design that encapsulates the joist for enhanced stability. Saddle hangers, in contrast, have an open-top, U-shaped design that allows the joist to rest on a horizontal saddle, providing less lateral support. Structurally, joist hangers offer superior load distribution and resistance to twisting compared to saddle hangers, making them ideal for applications requiring higher strength and durability.
Material Compatibility for Joist and Saddle Hangers
Joist hangers and saddle hangers differ significantly in material compatibility, with joist hangers primarily designed for wood-to-wood connections, supporting dimensional lumber and engineered wood products. Saddle hangers, however, accommodate round or irregularly shaped joists like logs or glued laminated timber, often requiring custom fitting or flexible materials for secure attachment. Selecting the right hanger type ensures optimal load distribution and structural integrity based on the specific material properties of the joist.
Installation Process: Joist Hanger vs Saddle Hanger
The installation process for joist hangers involves securing the metal bracket directly into the ledger board and the joist using nails or screws, ensuring a flush and strong connection. Saddle hangers, however, wrap partially around the top of the joist, requiring precise placement and often additional hardware to secure the load more evenly. Joist hangers generally offer quicker, more straightforward installation, whereas saddle hangers demand meticulous fitting for optimal structural support.
Load-Bearing Capabilities Compared
Joist hangers provide superior load-bearing capabilities by securely fastening joists to beams, distributing weight evenly across the connection point, and preventing lateral movement. Saddle hangers, while useful for certain structural applications, typically offer less robust support as they rest on top of the beam without surrounding it, limiting their capacity to handle heavier loads. Engineering assessments consistently favor joist hangers in scenarios demanding higher strength and stability for decking, flooring, and framing projects.
Cost Comparison: Joist Hanger vs Saddle Hanger
Joist hangers typically cost between $0.50 and $2.00 per piece, offering a budget-friendly solution for securing joists in construction projects, whereas saddle hangers usually range from $2.00 to $4.00 due to their more complex design and installation requirements. The lower material and labor costs of joist hangers make them ideal for large-scale framing jobs aimed at cost efficiency. Saddle hangers, while pricier, provide enhanced support and can justify the investment in applications demanding higher load capacity and durability.
Common Applications in Construction
Joist hangers are primarily used for securing structural wood joists to beams or ledgers, providing strong vertical support in floor framing and deck construction. Saddle hangers are often employed where joists need to rest on top of a beam, commonly in roof framing and timber framing applications. Both hangers optimize load distribution, but joist hangers offer more consistent support for heavy loads in floors and decks, while saddle hangers accommodate different framing methods with joists bearing directly on beams.
Pros and Cons of Joist Hangers
Joist hangers offer strong, reliable support by securely fastening joists to beams, reducing the risk of structural movement or failure. They are typically easier to install and provide consistent load-bearing capacity compared to saddle hangers, which may require more precise fitting and can allow for some timber movement. However, joist hangers can cause water accumulation and potential wood rot if not properly shielded, whereas saddle hangers better facilitate natural drainage.
Pros and Cons of Saddle Hangers
Saddle hangers provide superior lateral support for joists by cradling the joist on both sides, making them ideal for heavy loads and preventing twisting. However, they typically require more material and are more expensive compared to standard joist hangers, potentially increasing project costs. Saddle hangers may also be more challenging to install in tight spaces due to their bulkier design.
Choosing the Right Hanger for Your Project
Joist hangers provide robust support by securely attaching joists to beams, ensuring structural integrity in framing projects, while saddle hangers rest on top of beams, offering easier installation for certain deck or floor layouts. Choosing the right hanger depends on load requirements and project design; joist hangers are ideal for heavy loads and precise alignment, whereas saddle hangers suit applications needing quick setup and adjustable positioning. Proper selection enhances safety, durability, and overall stability in construction.

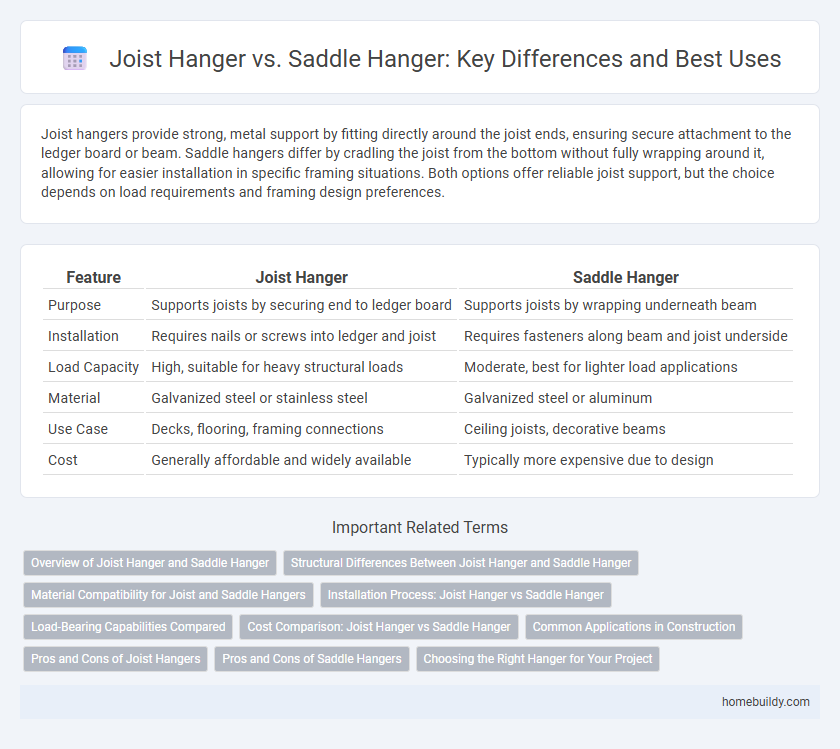

joist hanger vs saddle hanger Infographic
