homebuildy.com Steel cable trays offer superior strength and durability, making them ideal for heavy-duty applications and environments with high mechanical stress. Aluminum cable trays provide excellent corrosion resistance and are significantly lighter, which simplifies installation and reduces labor costs. Choosing between steel and aluminum cable trays depends on factors like load capacity, environmental conditions, and cost efficiency.
Table of Comparison
| Feature | Steel Cable Tray | Aluminum Cable Tray |
|---|---|---|
| Material Strength | High tensile strength, supports heavy loads | Moderate strength, suitable for light to medium loads |
| Weight | Heavier, adds structural load | Lightweight, easy to handle and install |
| Corrosion Resistance | Requires coating or galvanization to resist rust | Natural corrosion resistance without coating |
| Cost | Generally lower initial cost | Higher upfront cost but lower maintenance |
| Durability | Long-lasting with protective finish | Excellent lifespan due to anti-corrosive properties |
| Installation | More labor-intensive due to weight | Faster installation with lightweight design |
| Conductivity | Less conductive, standard grounding required | Good conductivity, beneficial for grounding |
| Application | Ideal for industrial and heavy-duty environments | Suitable for corrosive and outdoor environments |
Introduction to Steel vs Aluminum Cable Trays
Steel cable trays offer high strength and durability, making them ideal for heavy-duty industrial applications and environments with high mechanical stress. Aluminum cable trays provide excellent corrosion resistance and lightweight properties, which simplify installation and reduce structural load in corrosive or coastal areas. Both materials support efficient cable management but differ significantly in weight, cost, and environmental adaptability.
Material Properties: Steel and Aluminum Compared
Steel cable trays offer superior strength and load-bearing capacity, making them ideal for heavy-duty industrial applications. Aluminum cable trays provide excellent corrosion resistance and are significantly lighter, facilitating easier installation and reducing overall structural load. Both materials demonstrate good electrical conductivity, but steel requires protective coatings to prevent rust, whereas aluminum naturally forms a protective oxide layer.
Strength and Load-Bearing Capacity
Steel cable trays exhibit superior strength and higher load-bearing capacity compared to aluminum cable trays, making them ideal for heavy-duty industrial applications. The tensile strength of steel ranges from 400 to 550 MPa, significantly outperforming aluminum's typical tensile strength of 70 to 700 MPa depending on the alloy, but structural steel used in trays usually surpasses aluminum alloys used in trays in consistent load support. Steel trays are preferred in installations requiring robust mechanical protection and support for densely packed or heavy cable bundles.
Corrosion Resistance and Environmental Suitability
Steel cable trays offer superior strength but are more prone to corrosion, requiring protective coatings like galvanization to enhance durability in harsh environments. Aluminum cable trays provide excellent corrosion resistance inherently, making them ideal for marine or highly humid conditions without the need for additional treatment. Choosing between steel and aluminum cable trays depends on the environmental factors, where aluminum excels in corrosive and outdoor settings while steel is preferred for heavy-load applications with proper corrosion protection.
Weight and Ease of Installation
Steel cable trays are significantly heavier than aluminum cable trays, which impacts transportation and handling costs. Aluminum trays offer superior ease of installation due to their lightweight nature, reducing labor time and effort on-site. The lower weight of aluminum also decreases structural load, making it ideal for overhead or extended-span applications.
Cost Comparison: Steel vs Aluminum Trays
Steel cable trays generally offer a lower initial cost compared to aluminum trays, making them a budget-friendly option for large-scale industrial projects. Aluminum cable trays, while more expensive upfront, provide cost savings in long-term maintenance due to their superior corrosion resistance and lightweight properties that reduce installation labor. Evaluating total cost of ownership, including factors like durability and environmental conditions, is essential when choosing between steel and aluminum cable trays.
Fire Resistance and Safety Considerations
Steel cable trays offer superior fire resistance due to their high melting point and structural integrity under extreme heat, making them ideal for environments with stringent fire safety requirements. Aluminum cable trays, while lighter and corrosion-resistant, have lower fire resistance and may deform or melt at elevated temperatures, potentially compromising cable protection during a fire. Safety considerations prioritize steel trays in critical infrastructure to ensure compliance with fire codes and maintain cable system integrity under fire exposure.
Maintenance and Longevity
Steel cable trays offer superior durability and lower maintenance needs due to their high strength and resistance to mechanical damage, making them ideal for heavy-duty applications. Aluminum cable trays provide excellent corrosion resistance and are lightweight, which reduces installation time and maintenance in environments prone to moisture and chemical exposure. Longevity in steel trays is enhanced by protective coatings such as galvanization, while aluminum trays benefit from their natural oxidation layer, ensuring extended service life in corrosive conditions.
Applications and Industry Preferences
Steel cable trays are preferred in heavy industrial applications such as manufacturing plants and oil refineries due to their superior strength, durability, and higher load-bearing capacity. Aluminum cable trays, valued for their lightweight and corrosion resistance, are commonly chosen in environments like commercial buildings, data centers, and coastal facilities where ease of installation and resistance to rust are critical. Industry preferences hinge on factors including environmental conditions, mechanical load requirements, and long-term maintenance considerations.
Which Cable Tray Material is Best for Your Project?
Steel cable trays offer superior strength, durability, and resistance to heavy loads, making them ideal for industrial and high-traffic environments. Aluminum cable trays provide lightweight construction, excellent corrosion resistance, and ease of installation, which suits projects requiring flexibility and reduced structural support. Choosing between steel and aluminum depends on environmental factors, load requirements, and budget constraints to determine the most cost-effective and long-lasting solution.

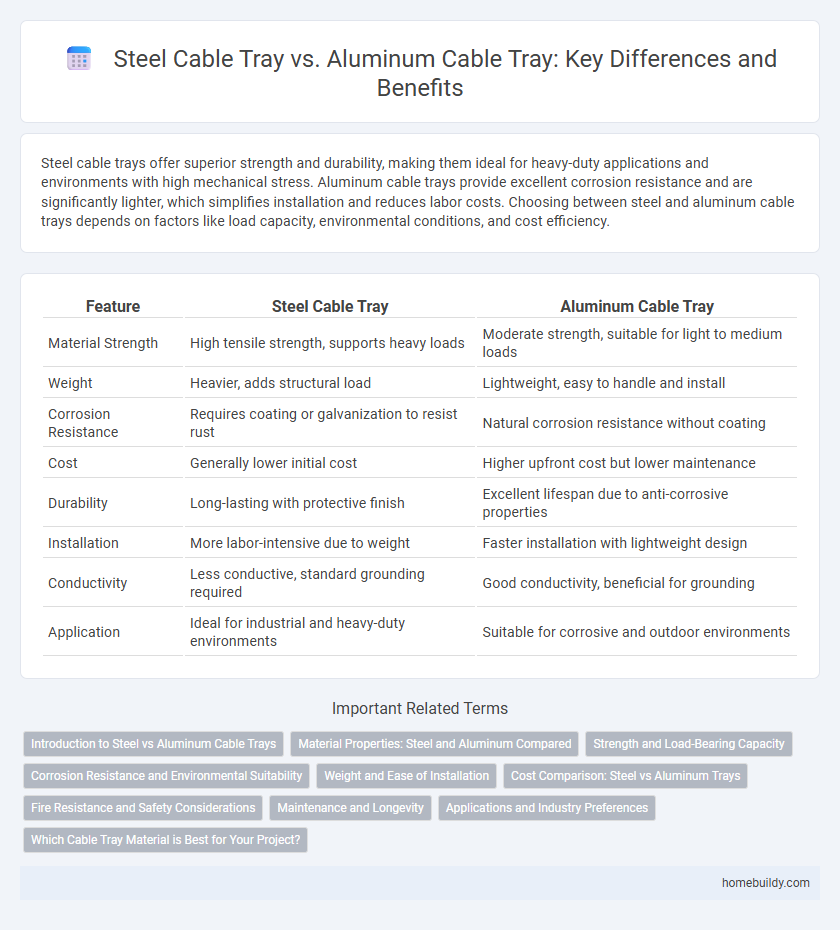

Steel cable tray vs Aluminum cable tray Infographic
