homebuildy.com Flush beam connectors are designed to align beams seamlessly with the face of supporting columns or walls, providing a clean, continuous appearance and efficient load transfer. Drop beam connectors allow beams to be positioned below the supporting members, creating a recessed connection that can accommodate mechanical or architectural features. Both types optimize structural integrity but vary in installation complexity and spatial requirements depending on building design needs.
Table of Comparison
| Feature | Flush Beam Connector | Drop Beam Connector |
|---|---|---|
| Installation Position | Beam aligned flush with the column face | Beam drops below the column face |
| Structural Clearance | Minimal clearance, space-efficient | Provides additional clearance below the beam |
| Load Transfer | Direct load transfer along column face | Load transferred through bracket or plate below column |
| Aesthetic Impact | Clean, flush finish | Visible drop, more pronounced connection |
| Common Applications | Compact spaces, modern architectural designs | Where additional floor clearance or mechanical runs are required |
| Installation Complexity | Moderate; requires precise alignment | Moderate to high; involves additional hardware |
Understanding Beam Connectors: An Overview
Flush beam connectors align the beam face directly with the supporting post or column, creating a seamless structural profile ideal for clean architectural designs and maximizing usable space. Drop beam connectors, in contrast, position the beam below the supporting member, allowing for heavier load distribution and enhanced structural integrity in complex framing systems. Selecting between flush and drop beam connectors depends on load requirements, aesthetic preferences, and the specific demands of the building framework.
What is a Flush Beam Connector?
A flush beam connector is a structural hardware device designed to attach a beam directly to a supporting post, allowing the beam to sit flush with the post surface for a clean, streamlined appearance. This type of connector is ideal for applications requiring a flat beam profile without protrusions, enhancing aesthetic appeal and maximizing usable space. Flush beam connectors provide secure load transfer and are commonly used in decks, pergolas, and other timber framing projects.
What is a Drop Beam Connector?
A drop beam connector is a structural hardware component used to join a drop beam, which is positioned below the main floor joists, to vertical posts or columns. This type of connector facilitates load transfer from the drop beam to support elements, ensuring stability and strength in framing systems. Drop beam connectors are typically designed to accommodate specific load requirements and can be installed with bolts or screws for secure attachment.
Key Differences Between Flush and Drop Beam Connectors
Flush beam connectors align the beam and girder surfaces at the same level, providing a continuous, flat interface beneficial for architectural finishes and minimizing beam depth. Drop beam connectors position the beam below the girder level, increasing floor-to-floor height but offering easier access for installing mechanical or electrical systems between floors. The key differences lie in their spatial arrangement, impact on structural depth, and implications for building services integration.
Structural Applications: When to Use Flush vs Drop Beam Connectors
Flush beam connectors are ideal for structural applications requiring a seamless alignment between beams and columns, providing clean aesthetics and efficient load transfer in walls or ceilings where depth is limited. Drop beam connectors are better suited for scenarios demanding higher load capacity and deeper beam engagement, such as supporting heavy floor loads or roof structures with significant moments. Choosing between flush and drop beam connectors depends on the structural requirements for load distribution, beam depth allowance, and connection strength in construction projects.
Load-Bearing Capabilities Comparison
Flush beam connectors distribute loads evenly across the beam, optimizing structural integrity for moderate to high load demands in residential and commercial construction. Drop beam connectors excel in supporting heavier loads by transferring forces directly to columns or foundation elements, enhancing stability in industrial and infrastructure projects. Both connector types are engineered to meet specific load-bearing requirements, with flush connectors favoring uniform load distribution and drop connectors prioritizing point load capacity.
Installation Process: Flush Beam vs Drop Beam Connectors
Flush beam connectors install by aligning the beam flush with the column face, requiring precise cutting and fastening to ensure a tight, flush fit. Drop beam connectors involve installing the beam slightly below the column face, allowing easier access for welding or bolting but necessitating additional support brackets to manage load transfer effectively. The choice between flush and drop beam connectors significantly affects installation efficiency, structural support requirements, and alignment precision on-site.
Advantages and Disadvantages of Each Connector Type
Flush beam connectors offer a sleek, space-saving design that allows beams to align seamlessly with the supporting structure, minimizing visual obstruction and optimizing headroom. However, they often require precise installation and can limit the size of beams used due to depth constraints. Drop beam connectors provide greater structural support by allowing larger beam sizes and easier load distribution, though they tend to protrude below the deck, potentially reducing clearance and increasing material costs.
Cost Implications: Flush Beam vs Drop Beam Connector
Flush beam connectors typically involve higher fabrication and installation costs due to precise alignment requirements and additional support elements. Drop beam connectors may reduce overall project expenses by simplifying assembly and minimizing on-site adjustments, leading to faster labor times. Material savings and maintenance considerations further influence the cost-effectiveness between flush and drop beam connector options.
Choosing the Right Beam Connector for Your Project
Selecting the right beam connector is crucial for structural integrity and project efficiency, with flush beam connectors providing a seamless, level surface ideal for architectural aesthetics and ease of finish work. Drop beam connectors, designed to sit below the supporting beam, offer enhanced load distribution and greater vertical clearance, making them suitable for heavy-duty applications and uneven floor levels. Assessing the specific load requirements, architectural design, and installation environment ensures optimal performance and longevity of the connection.

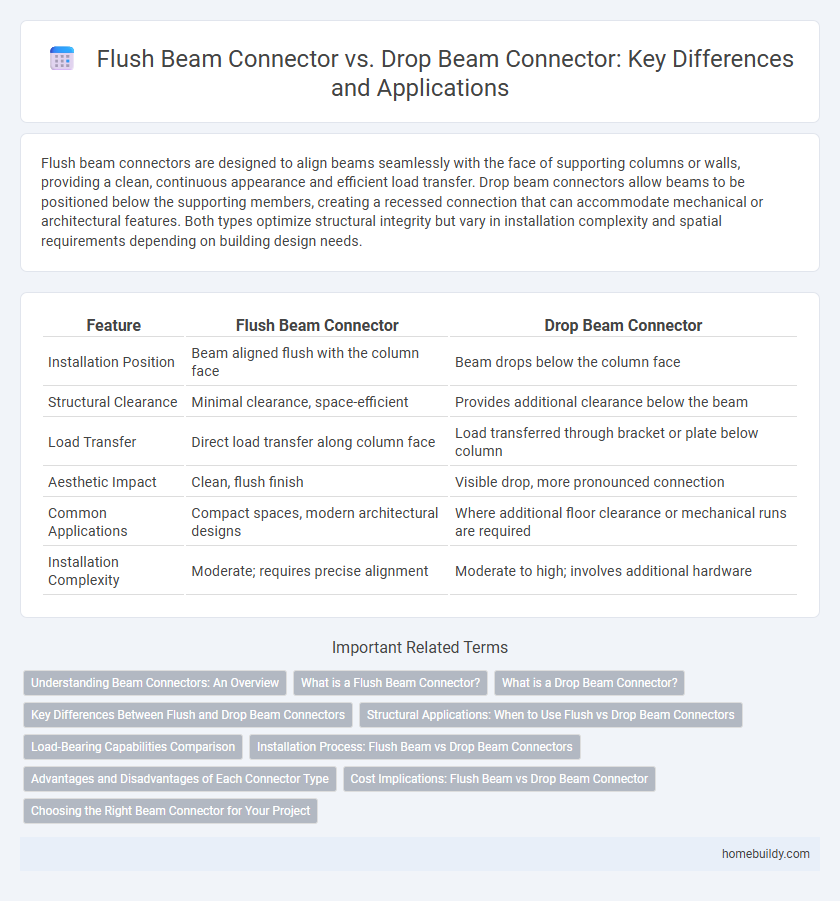

flush beam connector vs drop beam connector Infographic
