homebuildy.com Cavity wall lintels are designed to bridge the gap between two separate masonry leaves, providing structural support while accommodating insulation within the cavity to improve thermal performance. Solid wall lintels span across a single, dense masonry unit and are typically made from reinforced concrete, steel, or stone to bear the load of openings in solid walls. Cavity wall lintels often incorporate features such as drip edges and thermal breaks to prevent moisture ingress and thermal bridging, which are less critical in solid wall lintels.
Table of Comparison
| Feature | Cavity Wall Lintel | Solid Wall Lintel |
|---|---|---|
| Structure Type | Double-layer wall with gap (cavity) | Single solid masonry or concrete wall |
| Thermal Insulation | High thermal efficiency due to cavity | Lower thermal insulation |
| Moisture Protection | Resists moisture penetration effectively | More prone to dampness without added treatment |
| Lintel Material | Usually insulated steel or concrete lintels with cavity trays | Reinforced concrete, steel, or stone lintels |
| Installation Complexity | Requires precise fitting to maintain cavity integrity | Simpler installation in solid structure |
| Cost | Typically higher due to additional insulation and materials | Generally lower initial cost |
| Load Bearing Capacity | Optimized for structural load with cavity design | Strong load support from solid masonry |
| Energy Efficiency | Enhanced energy conservation | Less energy efficient |
Introduction to Wall Lintels
Wall lintels serve as critical structural supports above openings in masonry, distributing loads to prevent wall failure. Cavity wall lintels are designed to bridge the hollow space between dual wall layers, typically featuring thermal insulation and corrosion-resistant properties to accommodate moisture barriers. Solid wall lintels, conversely, span single-layer walls and prioritize compressive strength and durability within a uniform masonry structure.
Understanding Cavity Wall Lintels
Cavity wall lintels are engineered with thermal breaks or insulation to bridge the gap between the inner and outer leaves of cavity walls, preventing thermal bridging and moisture penetration. They are typically made from insulated steel or composite materials, ensuring structural support while maintaining the wall's thermal efficiency. Understanding cavity wall lintels is crucial for architects and builders aiming to optimize energy performance and durability in modern construction.
Overview of Solid Wall Lintels
Solid wall lintels are structural elements designed to support loads above openings in masonry walls without cavities, typically made from reinforced concrete, steel, or stone. These lintels provide continuous support across the entire thickness of the wall, ensuring stability and load distribution in solid or single-leaf wall constructions. Their robust design is ideal for solid brick or block walls where cavity wall systems are not employed.
Design Differences Between Cavity and Solid Wall Lintels
Cavity wall lintels are designed with insulation properties and often include thermal breaks to prevent heat loss, while solid wall lintels primarily focus on structural support without additional thermal considerations. The cavity wall lintel spans across the two leafs, supporting both outer and inner leaves separately, whereas solid wall lintels are embedded within a single solid wall, bearing the load continuously. Material choices also vary, with cavity lintels commonly made from stainless steel or reinforced concrete to resist moisture and corrosion within the cavity.
Material Choices for Each Lintel Type
Cavity wall lintels typically use stainless steel or galvanized steel materials due to their resistance to corrosion and ability to bridge the cavity while supporting inner and outer leaves. Solid wall lintels are often constructed from reinforced concrete or mild steel, providing robust load-bearing capacity for uniform wall structures. The choice of material for each lintel type ensures structural integrity, thermal insulation performance, and durability in varying wall configurations.
Structural Performance: Cavity vs Solid Wall Lintels
Cavity wall lintels are specifically designed to bridge the gap between inner and outer wall leaves, providing enhanced thermal insulation and accommodating wall movement without compromising structural integrity. Solid wall lintels bear the entire load directly across one solid mass, offering high compressive strength but less flexibility in accommodating wall expansion. Structural performance of cavity wall lintels benefits from their ability to resist moisture penetration and thermal bridging, while solid wall lintels excel in load-bearing capacity for uniform solid masonry walls.
Thermal Efficiency and Moisture Protection
Cavity wall lintels provide superior thermal efficiency by incorporating insulation within the cavity, reducing heat transfer compared to solid wall lintels. The design of cavity wall lintels includes built-in drip edges that prevent moisture ingress, enhancing moisture protection and reducing the risk of dampness inside the structure. Solid wall lintels lack this cavity insulation and moisture barrier, making them less effective in thermal regulation and moisture resistance.
Installation Considerations and Best Practices
Cavity wall lintels require precise alignment with the wall's inner and outer leaves to maintain structural integrity and thermal performance, often necessitating adjustable or insulated lintels to bridge the cavity gap. Solid wall lintels demand accurate placement on sound masonry to ensure load distribution without additional insulation, simplifying installation but potentially compromising thermal efficiency. Best practices include verifying lintel size, supporting adequate bearing lengths, and ensuring proper embedment into adjacent masonry for both types to prevent structural faults and moisture ingress.
Cost Comparison: Cavity Wall vs Solid Wall Lintels
Cavity wall lintels typically cost more than solid wall lintels due to their specialized design, which accommodates insulation and prevents thermal bridging between external and internal wall layers. Solid wall lintels are generally less expensive because they are used in straightforward load-bearing applications without the need for additional insulation considerations. The choice between cavity and solid wall lintels impacts the overall construction budget, with cavity wall lintels potentially increasing initial costs but offering better energy efficiency.
Selecting the Right Lintel for Your Project
Selecting the right lintel for your project requires understanding the structural demands and wall type; cavity wall lintels are designed to bridge the gap between inner and outer leaves, providing support while preventing thermal bridging. Solid wall lintels, typically made from reinforced concrete or steel, offer robust load-bearing capacity for continuous solid masonry. Proper selection ensures optimal load distribution, durability, and compliance with building regulations, reducing the risk of structural failure and moisture ingress.

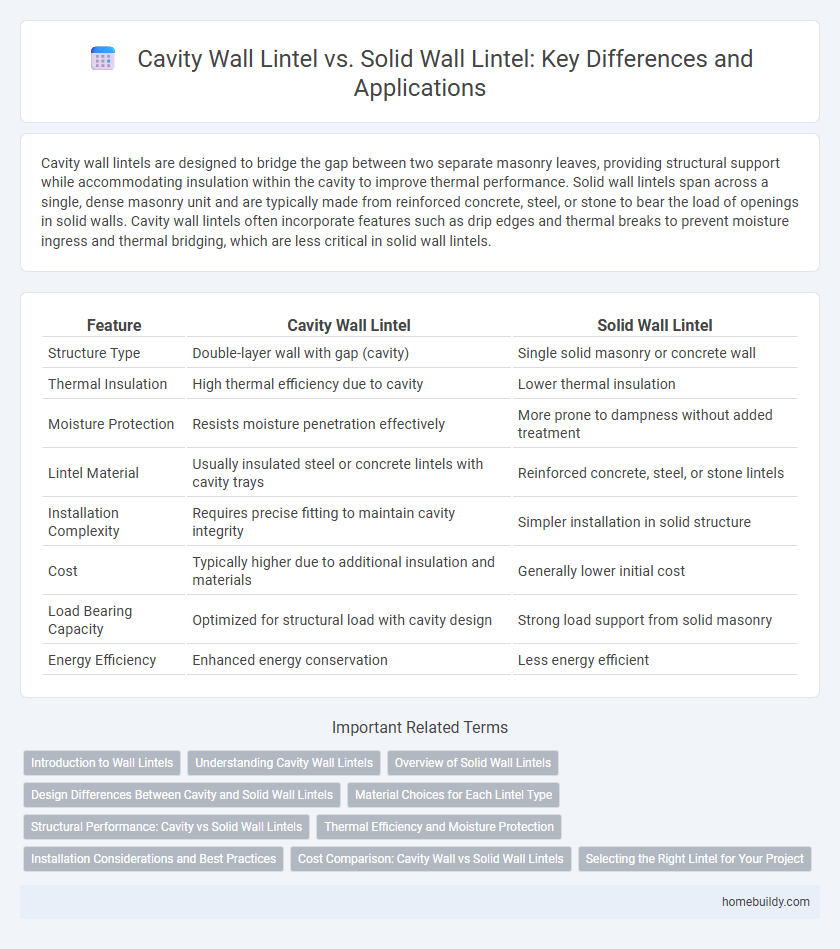

cavity wall lintel vs solid wall lintel Infographic
