homebuildy.com A vent grille serves as the visible cover for air vents, allowing airflow while protecting the duct opening from debris and enhancing room aesthetics. A plenum box is an air distribution component that connects ductwork to multiple diffusers or grilles, ensuring even air flow and pressure distribution throughout the HVAC system. Choosing between a vent grille and a plenum box depends on whether the focus is on air delivery control within the duct system or on the room's air outlet appearance and protection.
Table of Comparison
| Feature | Vent Grille | Plenum Box |
|---|---|---|
| Function | Air intake or exhaust cover, directs airflow | Air distribution box, connects ductwork to grilles |
| Location | Visible on walls, ceilings, or floors | Installed within duct system, hidden |
| Material | Metal or plastic, decorative finish | Sheet metal, robust for airflow management |
| Airflow Control | Limits air volume using adjustable louvers | Balances and redirects airflow efficiently |
| Installation | Directly attached to duct openings | Connected between main duct and vent grilles |
| Primary Use | Air ventilation and aesthetic cover | Air distribution and duct transition |
Introduction to Vent Grille and Plenum Box
A vent grille is a decorative and functional cover installed over HVAC openings, allowing air to flow into or out of a room while protecting the ductwork from debris. A plenum box serves as an air distribution chamber that connects the main duct to one or more vent grilles, balancing airflow and reducing noise inside the HVAC system. Together, vent grilles and plenum boxes optimize indoor air quality and system efficiency by controlling ventilation and air distribution.
Functionality Comparison: Vent Grille vs Plenum Box
A vent grille primarily regulates airflow by covering duct openings, ensuring even air distribution while maintaining aesthetic appeal. In contrast, a plenum box functions as an air manifold, connecting multiple ducts and balancing air pressure across HVAC systems for efficient airflow management. The vent grille focuses on air diffusion and protection, whereas the plenum box emphasizes air volume control and system integration.
Key Differences in Design and Structure
A vent grille features a simple, flat design with adjustable slats that facilitate directional airflow, primarily serving as an air outlet or inlet in HVAC systems. In contrast, a plenum box is a larger, enclosed chamber that distributes air evenly from ductwork, acting as an intermediary between the main HVAC system and the vent grille. The plenum box's structural complexity enhances air pressure regulation and flow balance, whereas the vent grille's streamlined design focuses on aesthetic integration and airflow control at the room level.
Airflow Management: Grilles vs Plenums
Vent grilles regulate airflow by controlling the direction and volume of air entering or exiting a space, offering focused distribution and aesthetic integration. Plenum boxes serve as central air collection or distribution chambers, balancing pressure and flow to multiple outlets for efficient HVAC performance. Effective airflow management often combines grilles' localized control with plenums' system-wide air balancing to optimize ventilation and comfort.
Installation Process for Vent Grilles and Plenum Boxes
Vent grilles typically require straightforward installation involving securing the grille over duct openings using screws or clips, often without needing specialized tools, making them ideal for quick replacements or aesthetic upgrades. Plenum boxes demand more complex installation as they connect directly to HVAC ducts, requiring precise sealing and alignment to ensure efficient airflow distribution and prevent leakage. Proper installation of plenum boxes often involves coordinating with ductwork professionals to maintain system integrity and optimize ventilation performance.
Material Considerations and Durability
Vent grilles and plenum boxes differ significantly in material considerations and durability, with vent grilles typically made from aluminum, steel, or plastic to balance airflow and aesthetic appeal. Plenum boxes often require heavier gauge metals like galvanized steel for enhanced durability, corrosion resistance, and structural integrity under HVAC system pressure. Material choice impacts longevity, with plenum boxes designed to withstand higher mechanical stress, while vent grilles focus on lightweight, corrosion-resistant finishes suitable for visible interior applications.
Efficiency and Performance in HVAC Systems
Vent grilles and plenum boxes serve distinct functions in HVAC systems, with vent grilles primarily facilitating air distribution and return, while plenum boxes act as central air chambers that enhance duct connection efficiency. Vent grilles optimize airflow direction and volume control, contributing to improved room comfort and system performance. Plenum boxes reduce pressure loss and noise by streamlining airflow transitions, resulting in higher system efficiency and balanced air distribution.
Cost Comparison: Vent Grille vs Plenum Box
Vent grilles generally cost less than plenum boxes due to their simpler design and smaller material requirements, making them a cost-effective option for basic air distribution needs. Plenum boxes, which serve as an air distribution chamber and often feature dampers or sound attenuators, tend to be more expensive due to their larger size and functional complexity. Choosing between a vent grille and a plenum box depends on project requirements and budget, with vent grilles offering lower upfront costs while plenum boxes provide enhanced airflow control and noise reduction.
Maintenance Requirements and Accessibility
Vent grilles require regular cleaning to prevent dust buildup that can obstruct airflow, while plenum boxes demand more comprehensive inspection to detect potential leaks or blockages inside the enclosure. Accessibility for vent grilles is typically straightforward since they are mounted on walls or ceilings, enabling quick removal for maintenance purposes. In contrast, plenum boxes often involve more complex access points due to their integration with ductwork, necessitating specialized tools or panels for thorough servicing.
Choosing the Right Solution: Vent Grille or Plenum Box
A vent grille effectively controls airflow direction and enhances room aesthetics, making it ideal for residential or office ventilation systems. Plenum boxes, designed to balance air pressure and distribute airflow evenly, are essential in complex HVAC setups requiring precise air management. Selecting the right solution depends on system complexity, airflow requirements, and installation space considerations.

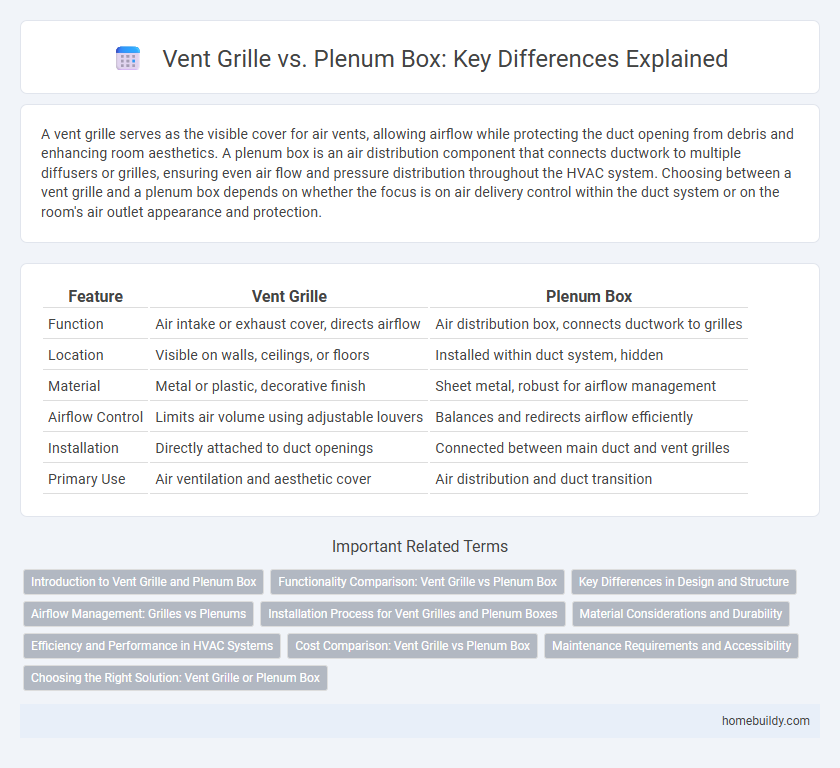

vent grille vs plenum box Infographic
