homebuildy.com Stud shoes provide superior anchoring in masonry construction by embedding directly into the wall studs, offering enhanced load transfer and stability compared to wall ties, which primarily connect masonry veneer to structural framing without bearing significant loads. Unlike wall ties, stud shoes minimize movement and reduce the risk of detachment or misalignment over time. This makes stud shoes the preferred choice for applications requiring robust support and long-term durability in masonry walls.
Table of Comparison
| Feature | Stud Shoe | Wall Tie |
|---|---|---|
| Purpose | Secures wood studs to concrete or steel foundations | Connects masonry walls to structural framing |
| Material | Steel, galvanized for corrosion resistance | Galvanized steel or stainless steel |
| Installation | Anchored with bolts or nails at base of stud | Embedded in mortar joints and fastened to framing |
| Load Bearing | Supports vertical and lateral loads at floor level | Provides lateral stability to masonry walls |
| Best Use | Wood-framed walls on concrete slabs or steel beams | Masonry veneer or cavity walls requiring framing ties |
Stud Shoe vs Wall Tie: Key Differences
Stud shoes and wall ties serve distinct purposes in construction, with stud shoes being metal connectors that anchor wall studs to the floor or foundation, ensuring structural stability and load transfer. Wall ties primarily link masonry walls to the structural framework, preventing separation and enhancing lateral support. Understanding these key differences helps in selecting the appropriate hardware for specific building requirements and structural integrity.
Functions of Stud Shoes in Construction
Stud shoes provide a secure connection between steel columns and concrete foundations, ensuring load transfer and structural stability. Unlike wall ties that primarily link masonry walls to framing for lateral support, stud shoes resist vertical and lateral forces at baseplates. They enhance the integrity of steel structures by distributing stresses evenly and preventing column buckling in high-load scenarios.
Wall Tie Overview and Applications
Wall ties are metal components used to connect masonry walls to structural frameworks, ensuring stability and preventing separation under lateral loads. Commonly employed in cavity wall construction, wall ties maintain the integrity of brick veneers and provide resistance against wind pressure and thermal expansion. Their applications extend to retrofitting old buildings to enhance seismic performance and moisture control in facade systems.
Material Comparison: Stud Shoes vs Wall Ties
Stud shoes are typically made from heavy-duty steel designed to secure wooden studs firmly to concrete or steel structures, providing enhanced load-bearing capacity and resistance to corrosion. Wall ties, often crafted from galvanized steel or stainless steel, focus on connecting masonry walls to structural frames while allowing controlled movement to prevent cracking. The material composition of stud shoes prioritizes strength and durability for direct load transfer, whereas wall ties emphasize flexibility and corrosion resistance to accommodate structural shifts.
Installation Methods: Stud Shoe vs Wall Tie
Stud shoe installation involves anchoring the shoe directly to the stud frame, providing a precise fit that enhances structural support. Wall tie installation requires fastening ties into masonry joints and connecting them to the wall frame, creating lateral stability and accommodating building movement. Stud shoes offer easier alignment within timber frames, while wall ties excel in reinforcing cavity walls through integration with brick or block layers.
Structural Benefits: Stud Shoes Compared to Wall Ties
Stud shoes provide enhanced structural stability by securely anchoring timber studs to concrete or masonry foundations, reducing lateral movement and improving load distribution. Unlike wall ties, which primarily connect masonry walls to timber frames, stud shoes offer superior resistance to shear forces and uplift, making them ideal for high-load applications. Their robust design ensures long-term durability and safety in framing construction compared to the limited support offered by traditional wall ties.
Common Use Cases: When to Choose Each
Stud shoes are ideal for securing vertical studs in wood or metal framing, providing strong support in residential and light commercial construction where wall alignment is crucial. Wall ties are preferred for connecting masonry walls to framed structures, enhancing stability in brick or block wall assemblies and preventing lateral movement. Choose stud shoes for precise stud placement and load transfer; opt for wall ties when reinforcing masonry-to-frame connections is necessary.
Cost Analysis: Stud Shoes vs Wall Ties
Stud shoes generally offer higher upfront costs compared to wall ties due to their robust steel construction and load-bearing capabilities. Wall ties, made from lighter materials such as stainless steel or galvanized steel strip, provide a more cost-effective solution for maintaining structural integrity between walls. When considering long-term durability and installation complexity, stud shoes may incur additional labor expenses, whereas wall ties typically require less specialized labor, making them more economical for large-scale projects.
Durability and Maintenance Considerations
Stud shoes offer superior durability compared to wall ties due to their robust construction with high-grade steel, which resists corrosion and wear over time. Maintenance requirements for stud shoes are minimal, as their design ensures stable load distribution, reducing the risk of structural fatigue. Wall ties often need regular inspection and replacement because they are more susceptible to damage from environmental factors like moisture and rust.
Industry Standards and Compliance
Stud shoes and wall ties both serve crucial roles in construction, but stud shoes are specifically designed to support steel or timber studs in framed walls, ensuring structural integrity according to industry standards such as ASTM E119 and ICC codes. Wall ties, meanwhile, primarily connect masonry walls to structural framing, complying with standards like BS EN 845-1 and AS3700 to prevent wall separation and enhance stability. Choosing stud shoes or wall ties based on these compliance requirements ensures adherence to local building codes, load-bearing specifications, and fire resistance criteria essential for safe construction.

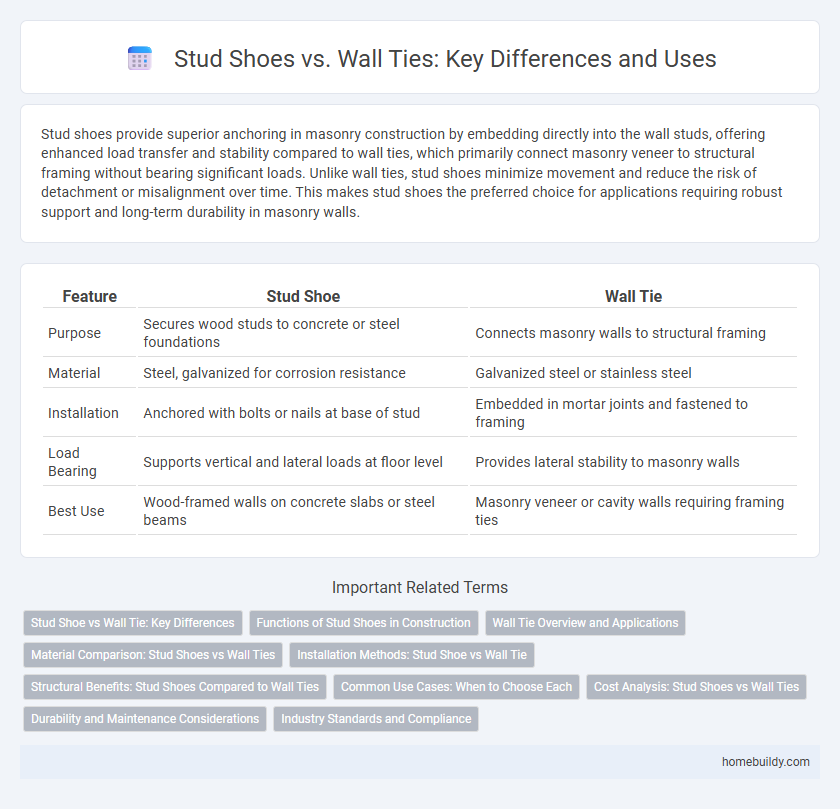

stud shoe vs wall tie Infographic
