homebuildy.com Stud shoes provide a more secure connection by fully encasing the stud and distributing loads evenly, reducing the risk of splitting or loosening over time. In contrast, sill plate anchors typically fasten through the sill plate into the foundation but may allow more movement and offer less lateral stability. Choosing stud shoes enhances structural integrity especially in high-stress areas where durability and load resistance are critical.
Table of Comparison
| Feature | Stud Shoe | Sill Plate Anchor |
|---|---|---|
| Primary Function | Secures vertical studs to concrete or wood floors | Anchors sill plates to concrete foundations |
| Material | Steel, galvanized for corrosion resistance | Steel, often hot-dipped galvanized |
| Installation | Bolted or nailed to floor and stud | Embedded or bolted into concrete, then attached to sill plate |
| Load Support | Vertical load from wall framing | Horizontal and uplift load from the building structure |
| Usage Area | Interior or exterior wood framing | Foundation to wood framing interface |
| Typical Applications | Wall framing connections on decks, floors | Anchor sill plate to foundation in residential and commercial buildings |
Introduction to Stud Shoes and Sill Plate Anchors
Stud shoes provide structural support by securing wall studs to concrete or masonry foundations, enhancing load distribution and preventing lateral movement. Sill plate anchors, typically metal straps or brackets, fasten the sill plate to the foundation, ensuring a strong connection and resistance to uplift forces. Both components are essential for stabilizing wood-frame construction and improving the building's overall seismic and wind resistance.
What is a Stud Shoe?
A stud shoe is a specialized metal bracket designed to secure wood studs to concrete or masonry floors, providing enhanced stability and load distribution. Unlike sill plate anchors, stud shoes feature a wrap-around design that clamps the stud from multiple sides, reducing the risk of twisting and improving seismic resistance. Commonly used in heavy timber framing and structural applications, stud shoes ensure a stronger, more reliable connection between wood framing and foundations.
What is a Sill Plate Anchor?
A sill plate anchor is a metal fastener used to secure the sill plate, the bottom horizontal member of a wall frame, to the concrete foundation, providing structural stability against lateral forces. Unlike stud shoes, which connect wall studs to the sole plates, sill plate anchors focus on anchoring the entire wall assembly to the foundation. These anchors prevent uplift and sliding during seismic or wind events, ensuring the building's foundation and framing remain firmly connected.
Key Functions: Stud Shoes vs Sill Plate Anchors
Stud shoes provide robust lateral support by securing wooden studs to concrete or masonry, effectively preventing uplift and lateral displacement during seismic events. Sill plate anchors primarily focus on anchoring the sill plate to the foundation, ensuring a fixed base to resist uplift and shear forces from structural loads. The choice between stud shoes and sill plate anchors depends on the specific structural requirements, with stud shoes offering enhanced vertical and lateral load transfer compared to sill plate anchors.
Structural Applications and Use Cases
Stud shoes provide robust support by securely connecting wood studs to concrete or masonry, ideal for load-bearing wall assemblies in residential and commercial construction. Sill plate anchors attach sill plates directly to foundations, offering resistance against lateral and uplift forces, primarily used in seismic or high-wind regions. Both components enhance structural integrity, with stud shoes excelling in vertical load transfer and sill plate anchors optimizing foundation-to-frame connections.
Installation Process Comparison
Installing stud shoes involves securing metal brackets directly to the foundation and then attaching the wood studs, providing a straightforward anchoring method with fewer steps. Sill plate anchors require first fastening the sill plate to the foundation, followed by connecting the studs, which can be more time-consuming due to the additional components. Stud shoes offer quicker installation and reduced labor costs compared to sill plate anchors, especially in projects emphasizing speed and efficiency.
Material and Design Differences
Stud shoes are typically made of galvanized steel, offering strong corrosion resistance and durability, while sill plate anchors often feature heavier gauge steel for enhanced load-bearing capacity. The design of stud shoes includes a U-shaped bracket to securely hold the stud, allowing for easy anchoring and alignment during framing. In contrast, sill plate anchors are designed with flat or angled plates and embedded nail holes to firmly attach the sill plate to the concrete foundation, emphasizing structural stability.
Strength and Load-Bearing Capabilities
Stud shoes provide superior strength and load-bearing capabilities compared to sill plate anchors due to their direct connection to the wood framing and concrete foundation. Their heavy-duty steel construction distributes loads more evenly, reducing stress concentrations and enhancing structural integrity. In contrast, sill plate anchors often rely on less rigid fastening methods, which can compromise load transfer under heavy or dynamic loads.
Building Code Requirements
Stud shoes and sill plate anchors both play critical roles in securing framing elements, but building code requirements emphasize specific use cases and load ratings. Stud shoes must comply with prescriptive load values and corrosion resistance standards outlined in the International Residential Code (IRC), while sill plate anchors require adherence to anchorage specifications detailed in the American Wood Council's Special Design Provisions for Wind and Seismic (SDPWS). Proper installation per code ensures structural integrity, resistance to uplift forces, and compliance with local jurisdiction mandates.
Choosing Between Stud Shoe and Sill Plate Anchor
Stud shoes provide robust support by securely fastening wood framing to concrete, ideal for heavy load-bearing walls, while sill plate anchors offer a simpler, cost-effective solution for light to moderate loads by anchoring sill plates directly to the foundation. Choosing between stud shoes and sill plate anchors depends on structural demands, seismic requirements, and ease of installation, with stud shoes preferred for enhanced durability and resistance to lateral forces. Engineers often select stud shoes in commercial or high-stress environments, whereas sill plate anchors suit residential projects focusing on budget and quick assembly.

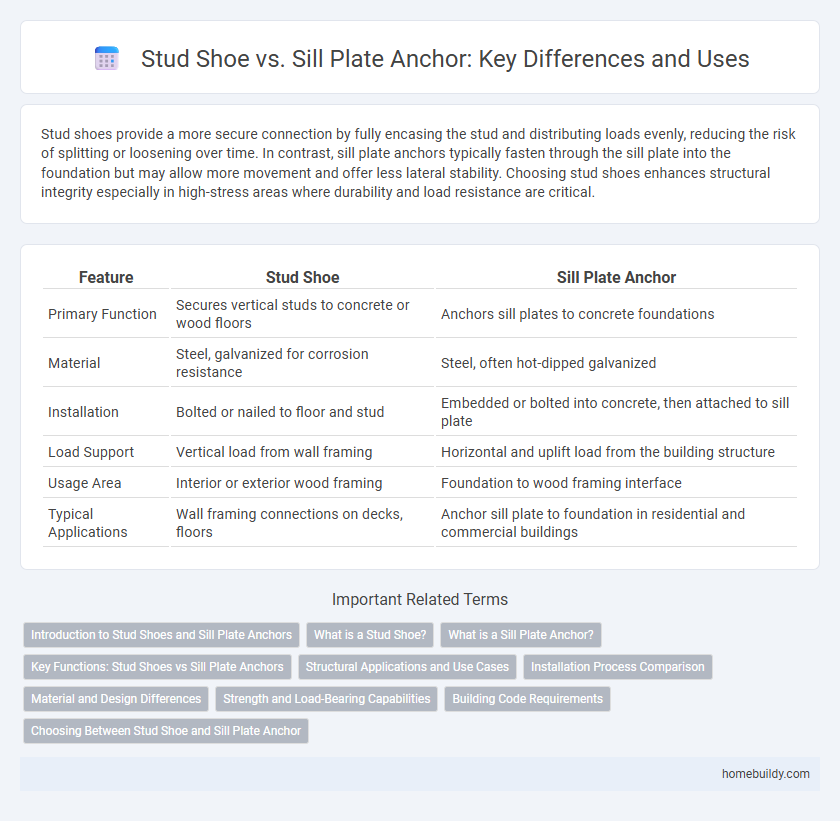

Stud shoe vs sill plate anchor Infographic
