homebuildy.com Metric rebar is measured in millimeters, commonly used in most countries worldwide, providing precise sizing for different construction requirements. Imperial rebar is measured in inches and is predominantly utilized in the United States, offering standard sizes that align with American building codes. Understanding the distinction between metric and imperial rebar ensures accurate material selection and compliance with regional construction standards.
Table of Comparison
| Feature | Metric Rebar (mm) | Imperial Rebar (inches) |
|---|---|---|
| Standard Unit | Millimeters (mm) | Inches (in) |
| Common Sizes | 10, 12, 16, 20, 25, 32, 40 | 3/8", 1/2", 5/8", 3/4", 1", 1 1/4", 1 1/2" |
| Diameter Range | 6 mm - 50 mm | 1/4" - 2" |
| Weight per Meter | Varies by diameter, e.g., 12mm = 0.888 kg/m | Varies by diameter, e.g., 1/2" = 1.58 lbs/ft |
| Tensile Strength | Typically 500 MPa (Grade 500) | Varies, commonly 60 ksi (414 MPa) |
| Usage Regions | Europe, Asia, Australia, most metric countries | USA, Canada, UK (partial), countries using imperial system |
| Marking System | Number indicates nominal diameter in mm | Number indicates nominal diameter in 1/8 inch increments |
Understanding Metric and Imperial Rebar Systems
Metric rebar is measured in millimeters with diameters typically ranging from 6 mm to 40 mm, following international standards like ISO and BS, while imperial rebar uses inches and fractions, commonly found in the US, with sizes like #3 (3/8 inch) to #18 (2-1/4 inches). Differences in unit systems impact rebar spacing, bending schedules, and design loads, requiring engineers to carefully convert and adapt structural plans when working across metric and imperial projects. Understanding the mechanical properties, standard grades, and nominal sizes in both systems is crucial for accurate specification, procurement, and structural integrity in construction worldwide.
Key Differences Between Metric and Imperial Rebar
Metric rebar is measured in millimeters and typically follows standards such as ISO or BS, whereas Imperial rebar uses inches and adheres to ASTM or AASHTO specifications. The diameters and grades differ, with metric rebar sizes rounded as whole numbers (e.g., 12mm, 16mm) and imperial sizes expressed in fractions of an inch (e.g., 3/8", 1/2"). Tensile strength and bend requirements vary by region, impacting compatibility and installation practices in construction projects.
Common Sizes for Metric and Imperial Rebar
Metric rebar commonly comes in sizes ranging from 8mm to 40mm in diameter, with 12mm, 16mm, 20mm, and 25mm being the most frequently used in construction projects. Imperial rebar sizes are typically designated by numbers, such as #3 (3/8 inch), #4 (1/2 inch), #5 (5/8 inch), and #6 (3/4 inch), with #4 and #5 being standard sizes for many structural applications. Understanding these common size ranges is crucial for engineers and builders to ensure compatibility and structural integrity in both metric and imperial measurement systems.
Strength and Yield Comparison
Metric rebar is graded by its yield strength, commonly labeled as Grade 40, 60, or 75, with yield strengths of 400 MPa, 600 MPa, and 750 MPa respectively, compared to imperial rebar typically graded as Grade 40 or 60 with yield strengths of 40,000 psi (276 MPa) and 60,000 psi (414 MPa). Metric rebar offers a more standardized and consistent method for material strength classification, while imperial rebar uses yield strength based on pounds per square inch, leading to differences in the measured ductility and toughness properties. Engineers must carefully consider these differences, as metric rebars generally provide a higher yield strength threshold, enhancing structural integrity in modern construction projects.
Regional Preferences and Building Codes
Metric rebar is predominantly used in countries adhering to the International System of Units (SI), such as those in Europe, Asia, and Australia, where building codes specify dimensions in millimeters and mandatory tensile strengths aligned with ISO standards. Imperial rebar remains common in the United States and parts of Canada, conforming to ASTM standards that define sizes in inches and grades based on yield strength measured in ksi (thousand pounds per square inch). Regional building codes dictate rebar selection to ensure structural integrity, with engineers and contractors selecting metric or imperial reinforcement to comply with local regulations and construction practices.
Conversion Methods: Metric to Imperial Rebar
Converting metric rebar to imperial involves understanding the diameter difference, where metric sizes are measured in millimeters and imperial in inches, typically using the conversion factor 1 inch equals 25.4 millimeters. To convert a metric rebar size to its closest imperial equivalent, divide the diameter in millimeters by 25.4, then match it to the nearest standard imperial rebar size, such as US #3, #4, or #5 bars. Proper conversion ensures structural integrity by maintaining appropriate strength and compatibility with design specifications based on either measurement system.
Cost Implications of Metric vs. Imperial Rebar
Metric rebar often results in lower overall project costs due to standardized manufacturing processes and widespread global availability, which drive competitive pricing. Imperial rebar, primarily used in the United States, can incur higher expenses because of limited supply chains and the need for conversion or customization when used in international projects. Choosing metric rebar enhances cost efficiency by reducing material waste and simplifying procurement in large-scale construction projects.
Availability and Supply Chain Considerations
Metric rebar is widely available in countries using the metric system, ensuring consistent sizing and easier integration with global construction standards, which streamlines supply chain logistics. Imperial rebar remains common in the United States, often resulting in limited availability outside North America and potential delays due to the need for special orders or conversions. Supply chain considerations include the compatibility of rebar with project specifications, regional supplier networks, and lead times affected by the differences in measurement systems.
Installation and Handling Differences
Metric rebar typically features diameter measurements in millimeters, requiring precise cutting and bending tools calibrated to metric sizes, whereas imperial rebar uses inches, affecting compatibility with tooling and installation processes. Handling metric rebar often demands adjustments in spacing and placement due to standardized metric grid patterns, contrasting with the fractional inch-based layouts in imperial systems. Installation crews must be familiar with these measurement differences to ensure accurate alignment, load distribution, and structural integrity during concrete reinforcement projects.
Choosing the Right Rebar System for Your Project
Choosing the right rebar system depends on project location, design standards, and structural requirements. Metric rebar, measured in millimeters, offers precise sizing aligned with international building codes, while Imperial rebar uses inches, common in the United States and a few other regions. Selecting between metric and imperial rebar ensures compatibility with project specifications, reduces fabrication errors, and streamlines construction workflows.

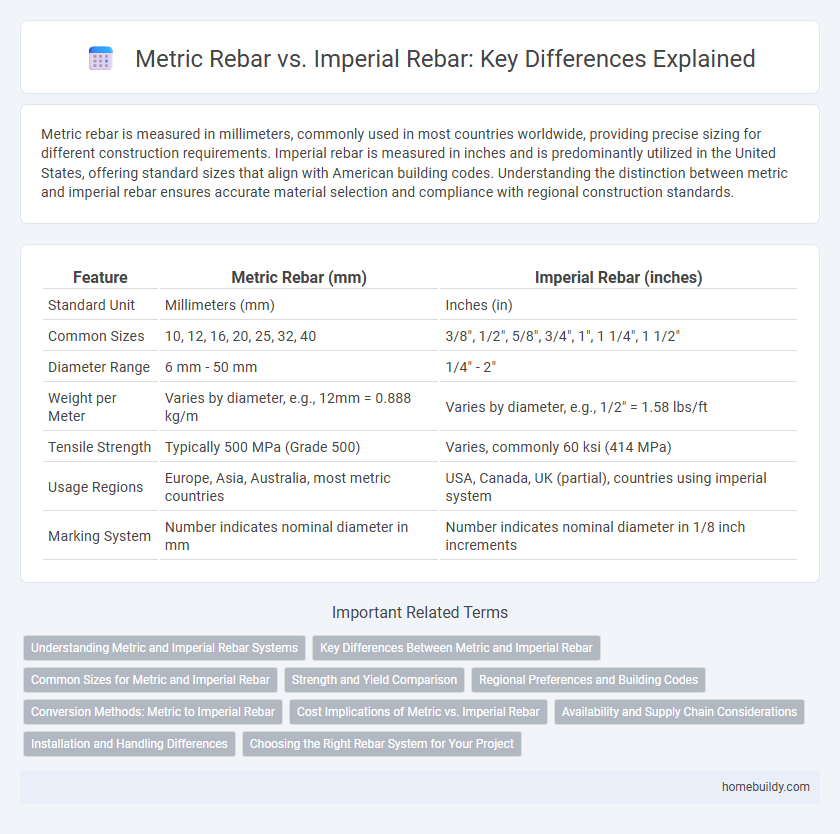

Metric Rebar vs Imperial Rebar Infographic
