homebuildy.com Pipe clamps provide a sturdy and adjustable solution for securing pipes, ideal for heavy-duty applications requiring consistent pressure along the pipe's surface. Worm drive clamps offer precise tightening through a screw mechanism, making them suitable for smaller pipes and situations where controlled clamping force is essential. Both types ensure pipe stability, but selecting between a pipe clamp and a worm drive clamp depends on the pipe size, pressure requirements, and ease of adjustment.
Table of Comparison
| Feature | Pipe Clamp | Worm Drive Clamp |
|---|---|---|
| Design | Simple, robust clamp using a metal band and screw mechanism | Adjustable metal band tightened by worm gear screw |
| Material | Steel or cast iron frame with metal screw | Stainless steel or galvanized steel band and screw |
| Application | Woodworking for clamping pipes, beams, and large frames | Securing hoses, pipes, and tubing in plumbing and automotive |
| Adjustability | Fixed pipe length; limited range depending on pipe size | Highly adjustable to fit various diameters |
| Clamping Force | High, ideal for heavy-duty clamping tasks | Moderate, suited for flexible connections |
| Durability | Long-lasting with minimal wear | Corrosion-resistant options available |
| Cost | Generally lower; reusable with different pipes | Moderate; single unit per application |
Introduction: Pipe Clamp vs Worm Drive Clamp
Pipe clamps provide a sturdy solution for securing large-diameter pipes with adjustable tension, often favored in heavy-duty plumbing and construction applications. Worm drive clamps use a screw mechanism to tighten, offering precise control and a secure fit ideal for automotive and HVAC systems. Selecting between pipe clamps and worm drive clamps depends on pipe size, required torque, and environmental conditions.
Key Differences Between Pipe Clamps and Worm Drive Clamps
Pipe clamps provide superior leverage and stability for heavy-duty applications by distributing pressure evenly around the pipe, making them ideal for woodworking and plumbing tasks requiring firm, non-marring holds. Worm drive clamps feature a screw mechanism that allows for quick adjustments and precise tightening, offering greater versatility for various pipe sizes and lighter-duty uses. While pipe clamps excel in delivering consistent clamping force without slipping, worm drive clamps provide ease of installation and adaptability with adjustable band diameters.
How Pipe Clamps Work
Pipe clamps secure pipes by tightening a metal band around the pipe's circumference, providing stable and adjustable support during plumbing or construction tasks. They rely on mechanical pressure from a screw or lever to maintain a firm grip, preventing pipe movement and leaks. Worm drive clamps, a subtype, use a worm gear mechanism that engages a toothed metal band, allowing precise tightening and reliable holding power ideal for high-pressure applications.
How Worm Drive Clamps Work
Worm drive clamps operate by turning a screw thread, which tightens a metal band around the pipe, creating a secure and adjustable grip. This mechanism allows precise control over clamping force, making them suitable for high-pressure applications and ensuring leak-free seals. Compared to standard pipe clamps, worm drive clamps provide greater durability and resistance to loosening under vibration or temperature changes.
Material Compatibility: Pipe Clamp vs Worm Drive Clamp
Pipe clamps are typically made from stainless steel or carbon steel, offering excellent durability and corrosion resistance, making them compatible with a wide range of pipe materials including PVC, copper, and steel. Worm drive clamps feature a slotted band and screw mechanism, usually constructed from stainless or galvanized steel, providing strong, adjustable tension ideal for softer materials like rubber or plastic hoses. Material compatibility hinges on the clamp's corrosion resistance and flexibility, with pipe clamps favored for rigid pipes and worm drive clamps preferred for flexible tubing applications.
Strength and Durability Comparison
Pipe clamps offer consistent pressure distribution, making them highly reliable for securing pipes under high-stress conditions. Worm drive clamps feature adjustable tightening with a screw mechanism, providing ease of use but potentially less uniform strength across the clamping area. In terms of durability, pipe clamps typically withstand prolonged exposure to harsh environments better due to their robust construction and lack of moving parts that can wear out.
Installation and Adjustability
Pipe clamps offer simpler installation with a fixed size, requiring precise measurement before securing, making them ideal for stable, permanent fits. Worm drive clamps provide greater adjustability through a screw mechanism that allows fine-tuning during installation, accommodating variable pipe diameters and ensuring a tight seal. The worm drive design facilitates easier maintenance and adaptability in applications where pipe size or alignment may change over time.
Common Applications and Use Cases
Pipe clamps are widely used for securing and supporting plumbing pipes, electrical conduits, and HVAC systems in residential and commercial construction. Worm drive clamps, featuring adjustable metal bands tightened by a screw mechanism, are ideal for automotive hoses, fuel lines, and industrial tubing where a strong, leak-proof seal is essential. Both clamps offer reliable fastening options, but pipe clamps excel in static support applications, while worm drive clamps provide flexible, high-tension fastening in dynamic or pressurized environments.
Cost-Effectiveness and Availability
Pipe clamps generally offer higher cost-effectiveness compared to worm drive clamps due to their simpler design and lower manufacturing costs. Availability of pipe clamps is widespread across hardware stores and industrial suppliers, making them easier to source for various applications. While worm drive clamps provide more precise tightening, their higher price and sometimes limited stock can impact overall project budgets and timelines.
Choosing the Right Clamp for Your Project
Pipe clamps provide sturdy, even pressure ideal for heavy-duty plumbing and mechanical applications, while worm drive clamps offer adjustable and precise tightening, suitable for flexible hoses and varying pipe sizes. Selecting the right clamp depends on factors like pipe diameter, required clamping force, and environmental conditions, with worm drive clamps excelling in versatility and ease of use. For projects demanding robust, high-torque fastening, pipe clamps are optimal, whereas worm drive clamps are preferred for applications needing frequent adjustments or fine tension control.

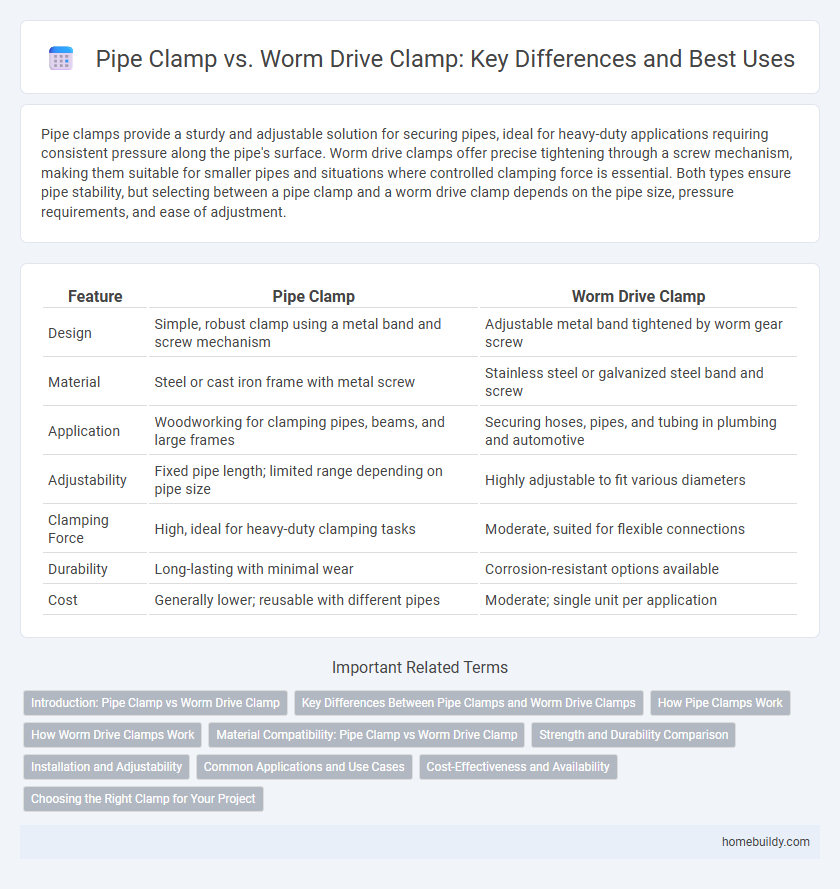

pipe clamp vs worm drive clamp Infographic
