homebuildy.com Pipe clamps provide secure and adjustable support for pipes, ensuring stability and preventing movement, while no-hub clamps are primarily designed for joining cast iron or plastic pipe sections with a tight, leak-proof seal. Unlike no-hub clamps, which focus on creating strong joints, pipe clamps offer versatile mounting options for various pipe sizes and applications. Choosing between a pipe clamp and a no-hub clamp depends on whether the priority is firm pipe support or reliable pipe connection.
Table of Comparison
| Feature | Pipe Clamp | No-Hub Clamp |
|---|---|---|
| Material | Stainless steel, galvanized steel | Stainless steel band with rubber gasket |
| Application | Secures pipes to structural supports | Joins and seals no-hub cast iron pipes |
| Design | U-shaped or hinged with bolts | Flexible band with gasket and tightening screws |
| Installation | Requires bolts and tools for tightening | Quick installation, hand-tightened screws |
| Sealing | No sealing feature, only support | Provides leak-proof seal between pipes |
| Use Cases | Pipe alignment and support in plumbing or HVAC | Connecting no-hub cast iron pipe sections |
| Cost | Generally lower cost | Moderate cost due to gasket and sealing |
| Durability | High durability for support | Durable for sealing and joining pipes under pressure |
Introduction: Understanding Pipe Clamps and No-Hub Clamps
Pipe clamps provide a secure and adjustable solution for fastening pipes, offering flexibility in various plumbing and construction applications. No-hub clamps are specifically designed for joining cast iron pipes with a rubber gasket sealing system, creating a tight, leak-resistant connection without welding or threading. Understanding the differences in design, materials, and installation methods helps determine the most suitable clamp for each plumbing project.
Key Differences Between Pipe Clamps and No-Hub Clamps
Pipe clamps provide adjustable support primarily for securing pipes during installation, featuring a robust metal band with a screw mechanism to tighten around various pipe diameters. No-hub clamps, also known as band clamps or no-hub coupling clamps, are designed specifically for connecting cast iron soil pipes using a heavy-duty stainless steel band with a rubber gasket for a tight, leak-proof seal. Unlike pipe clamps, no-hub clamps focus on creating a permanent, corrosion-resistant joint between pipe sections rather than temporary or adjustable support.
Common Applications for Pipe Clamps vs No-Hub Clamps
Pipe clamps are commonly used in plumbing and mechanical systems requiring adjustable support for various pipe sizes, frequently applied in industrial and residential piping for secure mounting. No-hub clamps are primarily utilized in cast iron soil and waste piping systems, offering a robust, leak-resistant connection ideal for drainage and sewer lines. The choice between pipe clamps and no-hub clamps depends on the material compatibility and the specific plumbing application requirements.
Material and Design Comparison
Pipe clamps are typically made from stainless steel or galvanized steel, offering robust corrosion resistance and durability, whereas no-hub clamps usually consist of stainless steel with a rubber gasket liner to provide a leak-proof seal. The design of pipe clamps features a solid band with a screw mechanism for adjustable tightening, ideal for securing pipes firmly. In contrast, no-hub clamps use a two-bolt tension band design that compresses the gasket to join pipe sections, emphasizing flexibility and ease of installation.
Installation Process: Pipe Clamp vs No-Hub Clamp
Pipe clamps require precise alignment and tightening with bolts to secure pipes firmly, offering adjustable grip for various pipe sizes. No-hub clamps simplify the installation process by using a flexible band and a single bolt, reducing the need for exact positioning and enabling quicker assembly. Both clamp types provide reliable sealing but differ in installation speed and adjustability, impacting project efficiency and tool requirements.
Performance and Durability Analysis
Pipe clamps provide superior performance in high-pressure applications due to their robust metal construction and adjustable tightening mechanisms, ensuring a secure fit that prevents leaks and pipe movement. No-hub clamps, typically made from stainless steel with rubber gaskets, offer excellent corrosion resistance and flexibility but may not withstand extreme mechanical stress as effectively as pipe clamps. Durability analysis reveals pipe clamps maintain structural integrity longer under heavy loads, while no-hub clamps excel in accommodating slight misalignments and thermal expansion in piping systems.
Cost Considerations and Budget Impact
Pipe clamps typically offer a lower upfront cost compared to no-hub clamps, making them a budget-friendly option for basic pipe support applications. No-hub clamps, while more expensive initially, provide enhanced durability and corrosion resistance, potentially reducing long-term maintenance expenses. Evaluating the total cost of ownership, including installation and lifecycle maintenance, is crucial for budget impact decisions between pipe clamps and no-hub clamps.
Advantages and Limitations of Each Clamp Type
Pipe clamps offer strong, adjustable support for pipes, ideal for applications requiring secure, flexible fastening, whereas no-hub clamps provide quick installation and corrosion-resistant joining, suited for connecting cast iron and plastic pipes. The rigidity and reusability of pipe clamps make them advantageous in heavy-duty plumbing and mechanical uses, but they may require more space and installation time compared to compact no-hub clamps. No-hub clamps limit repositioning once tightened and may not provide the same level of strength under high stress, while pipe clamps may be less effective in environments prone to vibration or movement.
Industry Standards and Compliance
Pipe clamps and no-hub clamps differ significantly in industry standards and compliance requirements. Pipe clamps typically adhere to ANSI and ASTM standards, ensuring compatibility with various pipe materials and applications in plumbing and construction. No-hub clamps comply with ASTM C1277 and ANSI A112.6.4, specifically designed for joining cast iron soil pipe, emphasizing their role in meeting stringent building codes and durability standards.
Choosing the Right Clamp for Your Plumbing Project
Pipe clamps provide strong, adjustable support for securing pipes in place, making them ideal for projects requiring precise alignment and load distribution. No-hub clamps offer a corrosion-resistant, quick-install solution designed specifically for joining cast iron or plastic pipes with hub connections. Selecting the right clamp depends on the pipe material, application requirements, and whether a permanent or flexible joint is needed.

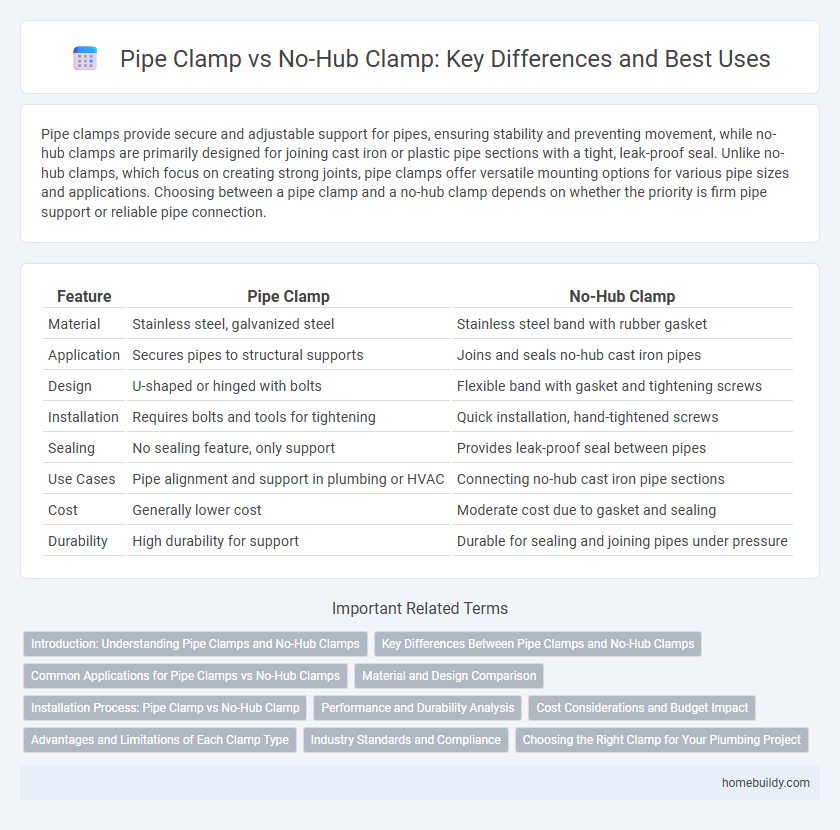

pipe clamp vs no-hub clamp Infographic
