homebuildy.com Joist hangers secure wood joists to beams, distributing loads effectively for structural stability. Double shear hangers provide enhanced strength by supporting joists on both sides of the beam, offering superior load capacity compared to standard joist hangers. Choosing between joist hangers and double shear hangers depends on the load requirements and design constraints of the construction project.
Table of Comparison
| Feature | Joist Hanger | Double Shear Hanger |
|---|---|---|
| Function | Supports and secures joists to beams or ledgers | Connects joists with enhanced shear strength and load capacity |
| Load Capacity | Moderate; suitable for standard residential and light commercial loads | High; designed for heavy-duty and structural applications |
| Design | U-shaped metal bracket with nail holes along sides | Two shear planes to distribute load evenly, reducing stress |
| Installation | Simple, nails or screws into joist and beam | Requires bolts or specialized fasteners for secure shear connection |
| Material | Galvanized steel with corrosion resistance | High-strength steel, often galvanized or coated |
| Cost | Lower cost, widely available | Higher cost due to advanced engineering and materials |
| Application | Decks, floors, light framing | Heavy framing, commercial buildings, engineered wood structures |
Introduction to Joist Hangers and Double Shear Hangers
Joist hangers are metal connectors designed to support and secure joists to beams or ledgers, providing critical structural stability in wood framing. Double shear hangers offer enhanced strength by distributing loads across two shear planes, making them suitable for heavier or more demanding construction applications. Understanding the differences in load capacity and installation requirements between joist hangers and double shear hangers is essential for selecting the appropriate hardware in residential and commercial building projects.
What is a Joist Hanger?
A joist hanger is a metal fastening device used to secure wooden joists to beams or other structural elements, ensuring solid support and load distribution. Unlike double shear hangers, which provide load transfer through two planes of shear, joist hangers typically wrap around the joist end and are fastened with nails or screws for strong attachment. Engineered for stability in floor framing and deck construction, joist hangers prevent lateral movement and enhance structural integrity.
Understanding Double Shear Hangers
Double shear hangers are designed to support joists with enhanced strength by distributing loads on both sides of the connector, reducing stress concentration compared to standard joist hangers. Unlike typical single-shear joist hangers that transfer load through one side, double shear hangers engage two shear planes, providing superior resistance to bending and twisting forces. This structural advantage makes double shear hangers ideal for heavy-duty framing applications requiring increased stability and load capacity.
Key Structural Differences
Joist hangers provide support by securing the joist end to a ledger board or beam, primarily transferring load through single shear, which allows them to handle standard framing loads effectively. Double shear hangers differ by offering support through two planes of contact, significantly increasing load capacity and structural stability in heavy-duty applications. The key structural difference lies in the double shear hanger's enhanced ability to distribute forces across both sides of the joist, reducing stress concentration and improving resistance to bending and torsional forces.
Load Distribution: Joist Hanger vs Double Shear Hanger
Joist hangers distribute load primarily by supporting the joist on three sides, transferring the weight to the ledger board and framing members, which is ideal for typical residential and light commercial applications. Double shear hangers provide superior load distribution by bearing forces on both sides of the hanger, offering enhanced strength and stability for heavy-duty structural connections. Engineers often select double shear hangers for applications requiring higher load capacities and reduced beam deflection.
Installation Methods Comparison
Joist hangers typically install by nailing or screwing directly into the ledger board and joist, allowing for easy on-site adjustments and quicker setup times. Double shear hangers require precise alignment due to their load distribution design, often involving bolts or specialized fasteners to connect two structural members simultaneously. The installation of double shear hangers demands more stringent positioning and hardware torque specifications to ensure structural integrity under shear loads.
Strength and Performance Analysis
Joist hangers offer reliable support by securing joists at right angles, distributing loads effectively across their flanges and providing consistent performance under standard structural conditions. Double shear hangers enhance strength through a dual load path, reducing stress on nails or bolts and improving resistance to shear forces and uplift, making them suitable for heavier loads or more demanding applications. Performance analysis indicates double shear hangers achieve higher load capacities and greater durability in dynamic or high-stress environments compared to single shear joist hangers.
Applications and Suitable Use Cases
Joist hangers are ideal for securing single wood joists into beams, commonly used in floor framing and deck construction where straightforward load support is needed. Double shear hangers provide enhanced strength by distributing load across two shear planes, making them suitable for heavy-duty structural applications such as supporting large beams or double joist assemblies. The choice between joist hangers and double shear hangers depends on load requirements and structural design complexity, with double shear hangers preferred in high-load or engineered wood systems.
Material and Corrosion Resistance
Joist hangers typically use galvanized steel, offering reliable corrosion resistance suitable for most residential applications, while double shear hangers are often made from higher-grade stainless steel or alloy metals to withstand more aggressive environments. The material composition of double shear hangers provides superior strength and enhanced durability against rust and corrosion compared to standard joist hangers. Choosing between these hangers depends on the project's exposure to moisture and load requirements, with double shear hangers preferred for heavy-duty and outdoor structural support.
Cost Comparison and Value
Joist hangers typically offer a more cost-effective solution compared to double shear hangers due to simpler design and lower material requirements. While double shear hangers provide enhanced load capacity and increased structural stability, the higher upfront cost may not justify their use in standard residential projects. Joist hangers deliver excellent value by balancing affordability with sufficient strength for common joist applications.

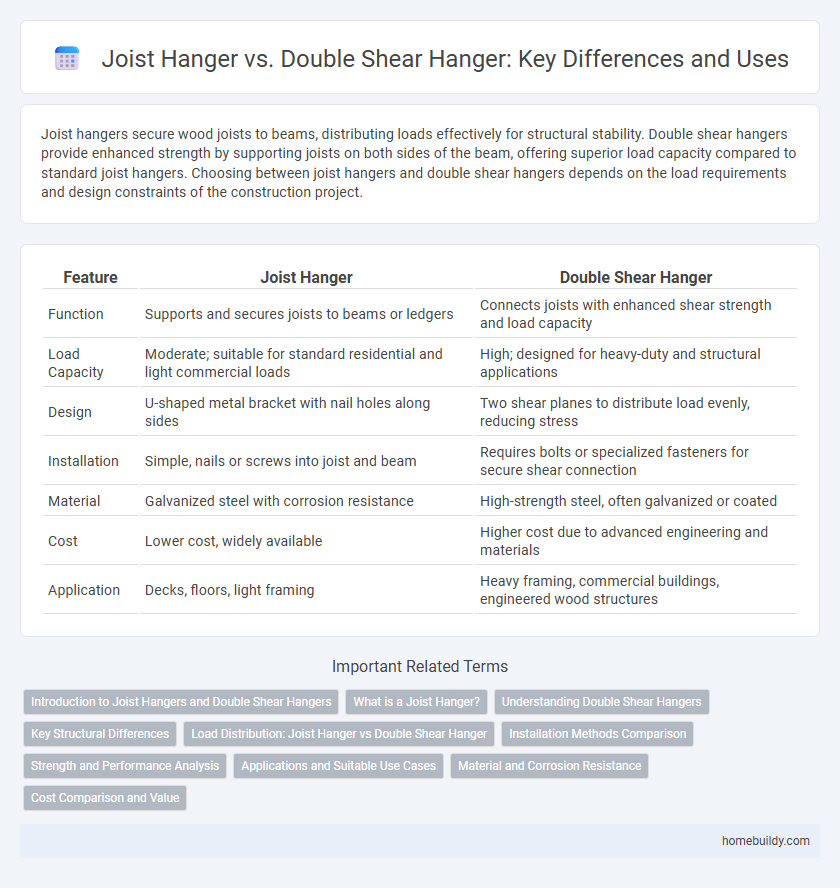

joist hanger vs double shear hanger Infographic
