homebuildy.com Return air grilles are designed to pull used air from a room back into the HVAC system for reconditioning, ensuring proper airflow and temperature regulation. Supply air grilles, on the other hand, deliver conditioned air from the HVAC system into the living spaces to maintain comfort. Both types of grilles are essential for maintaining balanced air circulation and optimal indoor air quality.
Table of Comparison
| Feature | Return Air Grille | Supply Air Grille |
|---|---|---|
| Function | Allows air to flow back into HVAC system for reconditioning | Delivers conditioned air into the room or space |
| Location | Usually installed on walls or ceilings to draw air out | Typically mounted on walls, ceilings, or floors to supply air |
| Design | Simple, swirl-free design to promote smooth airflow | Directional vanes to control airflow direction and distribution |
| Air Pressure | Handles lower pressure; facilitates air return | Handles higher pressure; distributes conditioned air |
| Maintenance | Needs regular cleaning to prevent dust accumulation | Requires filter checks and occasional adjustments |
| Common Materials | Steel, aluminum, or plastic | Steel, aluminum, or plastic |
Introduction to Air Grilles: Return vs Supply
Return air grilles and supply air grilles are essential components in HVAC systems, facilitating airflow management for optimal indoor air quality and comfort. Return air grilles draw air from the room back into the HVAC system for reconditioning, while supply air grilles deliver conditioned air into the space. Understanding the distinct roles and placement of these grilles helps maintain efficient ventilation and energy performance in residential and commercial buildings.
Key Differences Between Return and Supply Air Grilles
Return air grilles are designed to draw air from rooms back into the HVAC system, typically featuring larger openings to accommodate higher airflow volumes and reduce noise. Supply air grilles deliver conditioned air into a space, focusing on directional airflow control with adjustable louvers for optimal comfort. The primary difference lies in their function and design: return grilles facilitate air intake with minimal obstruction, while supply grilles distribute airflow efficiently and evenly.
Functions of Return Air Grilles
Return air grilles function to draw air from rooms back into the HVAC system for reconditioning, ensuring efficient circulation and maintaining indoor air quality. These grilles typically feature larger openings to handle higher airflow volumes and prevent pressure imbalances. In contrast to supply air grilles that distribute conditioned air, return air grilles facilitate air movement toward the system's return ducts to support continuous ventilation cycles.
Functions of Supply Air Grilles
Supply air grilles distribute conditioned air from the HVAC system into rooms, ensuring optimal airflow and maintaining indoor comfort levels. They are designed with adjustable louvers to direct and control air velocity and volume effectively. Unlike return air grilles, supply air grilles actively deliver fresh air, contributing to air circulation and temperature regulation in the space.
Design Characteristics: Return vs Supply Air Grilles
Return air grilles typically feature larger openings and fewer obstructions to facilitate smooth airflow back to the HVAC system, reducing noise and pressure drop. Supply air grilles are designed with adjustable louvers or deflectors to direct conditioned air efficiently into the room, balancing air distribution and comfort. Both grille types are constructed from durable materials like aluminum or steel to withstand continuous airflow and maintain indoor air quality.
Placement and Installation Guidelines
Return air grilles are typically installed on walls or ceilings to draw air back into the HVAC system for recirculation, ensuring proper airflow balance. Supply air grilles are positioned near the HVAC unit outputs, often on ceilings or high on walls, to distribute conditioned air evenly throughout a room. Proper placement requires maintaining adequate clearance around both grille types to optimize airflow and prevent obstructions.
Material Choices for Return and Supply Air Grilles
Return air grilles typically use materials like galvanized steel or aluminum for durability and corrosion resistance, ensuring efficient air circulation and longevity in HVAC systems. Supply air grilles often incorporate lightweight aluminum or plastic composites, optimizing airflow distribution while minimizing noise and weight. Material selection depends on environmental conditions and system requirements to maintain performance and aesthetic integration within indoor spaces.
Airflow Direction and Its Impact
Return air grilles pull air from a space back into the HVAC system, promoting circulation and filtration, while supply air grilles deliver conditioned air into the room, ensuring proper temperature control. The direction of airflow affects indoor air quality and energy efficiency, with return grilles helping remove contaminants and supply grilles providing fresh, conditioned air. Proper placement and selection of these grilles optimize ventilation performance and maintain balanced air pressure within the environment.
Maintenance Considerations for Both Grille Types
Return air grilles require regular cleaning to prevent dust buildup and maintain efficient airflow, while supply air grilles need inspection to ensure unobstructed air delivery and proper grille alignment. Both grille types benefit from periodic filter checks and surface wiping to enhance indoor air quality and system performance. Using antimicrobial coatings on grilles can reduce microbial growth and simplify maintenance tasks.
Choosing the Right Grille for Optimal HVAC Performance
Selecting the right grille is essential for enhancing HVAC efficiency, with Return Air Grilles designed to pull air back into the system for filtration and Supply Air Grilles distributing conditioned air into living spaces. Return Air Grilles typically feature larger openings to handle higher airflow volumes without noise, while Supply Air Grilles often include adjustable louvers to direct airflow precisely. Properly matching grille types based on airflow requirements, room size, and system capacity ensures balanced ventilation, improved air quality, and energy-efficient operation.

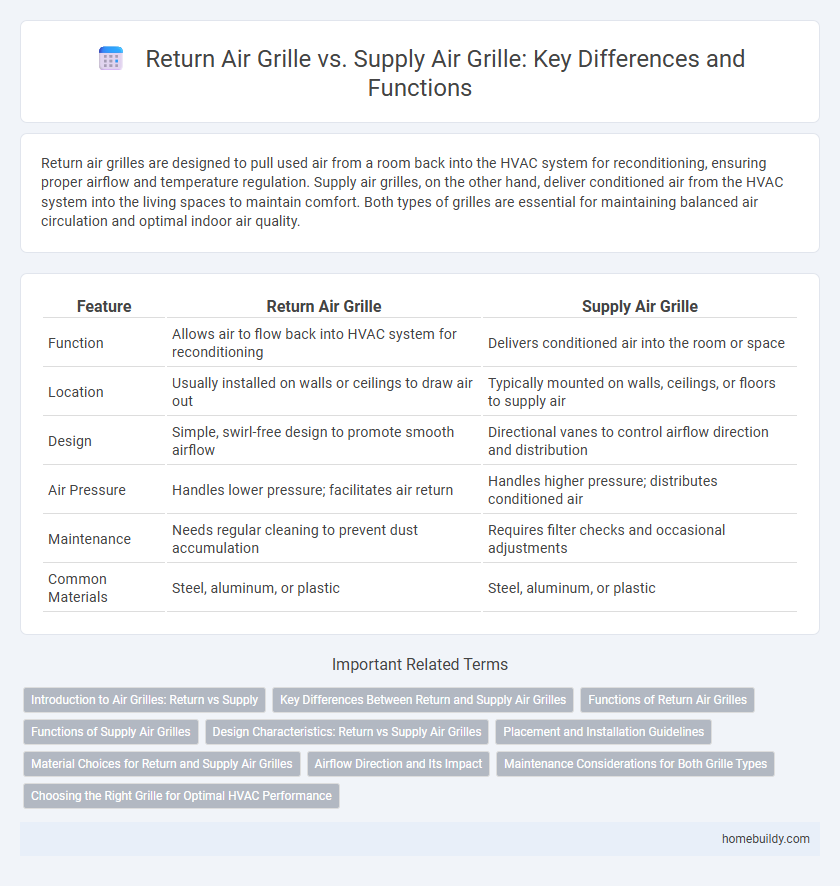

Return Air Grille vs Supply Air Grille Infographic
