homebuildy.com U-bolts provide strong, even clamping around pipes or cylindrical objects, making them ideal for securing round components with consistent pressure. J-bolts offer targeted fastening with their hook-shaped design, often used for anchoring or hanging applications where one end is embedded and the other extends outward. Choosing between U-bolts and J-bolts depends on the specific load requirements and the geometry of the components to be fastened.
Table of Comparison
| Feature | U-Bolts | J-Bolts |
|---|---|---|
| Shape | U-shaped, two parallel legs | J-shaped, one curved leg |
| Primary Use | Securing pipes, tubes, and round objects | Anchoring, hanging, and securing structural elements |
| Material | Steel, stainless steel, galvanized steel | Steel, stainless steel, galvanized steel |
| Load Capacity | High load capacity for clamping | Strong tensile strength for anchoring |
| Installation | Requires nuts on both legs | Installed by embedding threaded end into concrete or using nuts |
| Common Applications | Pipe supports, automotive suspensions, construction | Foundation bolts, hanging equipment, structural support |
U-Bolts vs J-Bolts: An Overview
U-bolts provide a secure clamping force in applications requiring pipe and tube support, characterized by their U-shaped design that evenly distributes load around the object. J-bolts, with one straight end and one hooked end shaped like the letter J, are primarily used for anchoring structures to concrete or wood, offering strong holding power in foundational setups. Choosing between U-bolts and J-bolts depends on the specific application requirements, such as load distribution, installation environment, and intended structural support.
Fundamental Design Differences
U-bolts feature a symmetrical, U-shaped design with two parallel threaded legs extending from a curved base, ideal for securing round objects like pipes and tubes. J-bolts have a single threaded leg with a bent end shaped like the letter "J," designed for anchoring to concrete or structural materials where one end is embedded for stability. The fundamental design difference lies in their shapes and applications: U-bolts provide clamping around cylindrical objects, while J-bolts serve as anchor bolts with one end permanently fixed.
Common Applications of U-Bolts
U-bolts are widely used for securing pipes, conduit, and tubing to structural supports in plumbing, electrical, and construction industries. They provide strong clamping force around cylindrical objects, making them ideal for mounting exhaust systems, securing cables, and stabilizing poles. Common applications also include automotive suspension systems and heavy equipment attachments, where reliable fastening is critical.
Typical Uses for J-Bolts
J-bolts are commonly used for securing walls and columns to concrete foundations due to their hook shape, which provides a strong hold in poured concrete. They are ideal for anchoring structural components in construction projects, such as holding down metal framing or supporting beam installations. Their design allows easy embedding into concrete while offering enhanced resistance to pull-out forces, making them suitable for heavy-load applications.
Material Options and Durability
U-bolts and J-bolts are commonly crafted from stainless steel, carbon steel, and galvanized steel, each offering varying levels of corrosion resistance and strength. Stainless steel U-bolts provide superior durability in harsh environments due to their resistance to rust and chemical exposure, while carbon steel J-bolts are prized for high tensile strength in structural applications. Galvanized coatings enhance the longevity of both bolt types by protecting against moisture and environmental wear, making them suitable for outdoor and marine uses.
Load-Bearing and Strength Comparison
U-bolts provide superior load-bearing capacity due to their uniform shape that evenly distributes stress around pipes and cylindrical objects, enhancing strength under tension. J-bolts, while easier to install in specific applications, concentrate stress at the curved end, resulting in lower overall strength and reduced load tolerance. For critical structural applications requiring maximum load resilience, U-bolts are the preferred choice over J-bolts.
Installation Methods: U-Bolts vs J-Bolts
U-bolts are typically installed by slipping the curved portion around pipes or tubing and securing it with nuts on parallel threaded ends, providing a stable clamp for cylindrical objects. J-bolts, shaped like the letter "J," are often embedded into concrete or fixed into pre-drilled holes, allowing their hooked end to anchor structures firmly. The installation method of U-bolts emphasizes encircling and clamping, whereas J-bolts rely on their hooked design for anchorage and support.
Corrosion Resistance and Environmental Suitability
U-bolts, typically made from galvanized or stainless steel, offer superior corrosion resistance in marine and outdoor environments due to their closed-loop design, which minimizes exposure to corrosive elements. J-bolts often have less protective coating and are more prone to rust, making them less suitable for highly humid or saline conditions. Selecting U-bolts enhances durability and environmental suitability in applications requiring long-term exposure to moisture and corrosive agents.
Selecting the Right Bolt for Your Project
Selecting the right bolt for your project depends on load requirements, mounting surfaces, and environmental factors; U-bolts excel in securing round objects like pipes, providing uniform clamping force, while J-bolts are ideal for anchoring structural elements with one bent end for easy installation. Material composition, corrosion resistance, and thread size also influence performance and durability under stress. Evaluating these parameters ensures optimal fastening strength and long-term reliability in construction or industrial applications.
Cost Considerations and Availability
U-bolts generally have broader availability and are cost-effective due to standardized manufacturing processes and widespread demand in automotive and construction industries. J-bolts tend to be more expensive and less readily available because of their specialized design and limited applications, often requiring custom orders that increase lead times. Choosing between U-bolts and J-bolts depends largely on budget constraints and the urgency of procurement, with U-bolts favored for their affordability and immediate accessibility.

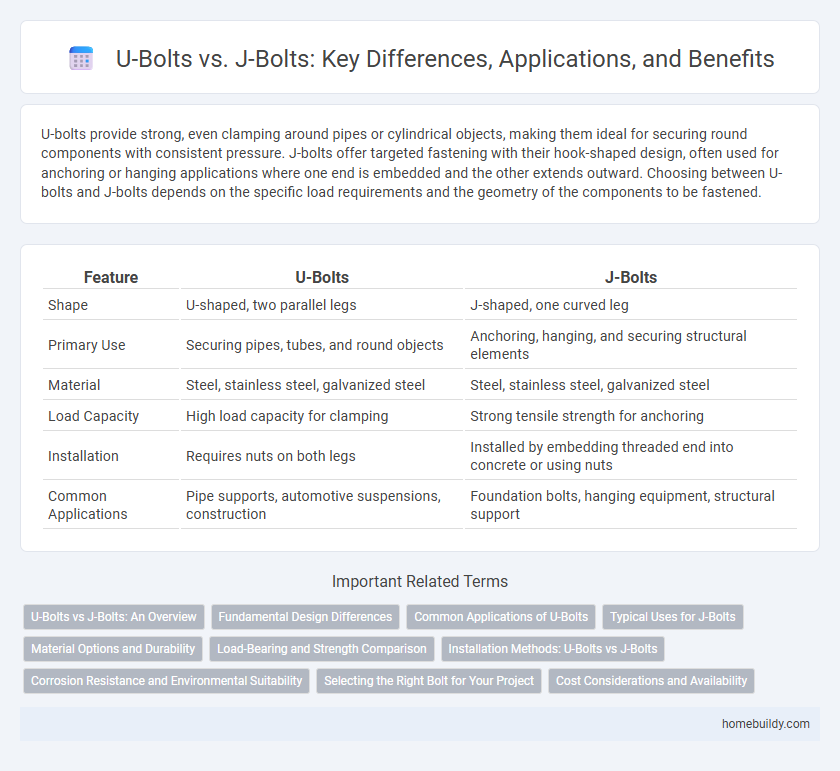

U-bolts vs J-bolts Infographic
