homebuildy.com Countersunk screws provide a flush finish by sitting level with the surface, ideal for applications requiring a smooth appearance and reduced snagging risk. Pan head screws, with their rounded, slightly raised heads, offer greater bearing surface and are easier to grip with tools, making them suitable for fastening metal to metal or wood. Choosing between countersunk and pan head screws depends on whether aesthetics or mechanical strength and ease of access are prioritized in the assembly.
Table of Comparison
| Feature | Countersunk Screw | Pan Head Screw |
|---|---|---|
| Head Shape | Flat, tapered to sit flush with surface | Rounded, protrudes above surface |
| Typical Use | Applications needing flush finish, furniture, cabinetry | General fastening where head visibility is acceptable |
| Surface Finish | Flush, smooth surface after installation | Raised, visible head above material surface |
| Installation | Sits below surface, requires countersinking | Installs directly without surface modification |
| Load Distribution | Distributes load evenly across tapered head | Smaller contact area, higher surface pressure |
| Common Materials | Steel, stainless steel, brass | Steel, stainless steel, brass |
| Advantages | Flush finish, reduced snagging, aesthetic appeal | Easy installation, higher head strength |
| Disadvantages | Requires pre-drilling/countersinking | Head protrudes, potential for snagging |
Introduction to Countersunk and Pan Head Screws
Countersunk screws feature a flat head that sits flush with the material surface, providing a smooth finish ideal for applications requiring a sleek appearance or minimal obstruction. Pan head screws have a rounded top with a flat bearing surface, offering greater surface contact and enhanced grip, commonly used in metal-to-metal fastening. Both screw types cater to distinct installation needs, influencing the choice based on the required aesthetic and mechanical strength.
Design and Structural Differences
Countersunk screws feature a tapered head designed to sit flush with the surface, providing a smooth, flat finish ideal for applications requiring aesthetic or aerodynamic surfaces. Pan head screws have a rounded, slightly elevated head that provides a larger bearing surface, enhancing load distribution and resistance to stripping. The structural difference lies in the countersunk screw's conical shape for recessed installation, while the pan head's domed shape allows for surface-mounted fastening with easy removal and adjustment.
Material and Surface Finish Comparison
Countersunk screws are typically made from stainless steel, carbon steel, or brass, offering excellent corrosion resistance and mechanical strength, while their surface finish often includes zinc plating, black oxide, or polished stainless steel for enhanced durability and corrosion protection. Pan head screws commonly feature materials such as zinc-plated steel, brass, or nylon, with surface finishes like zinc plating, chrome plating, or clear coating to improve wear resistance and aesthetic appeal. Material selection and surface finish impact the screws' performance in specific environments, where countersunk screws favor flush installation and corrosion resistance, whereas pan head screws prioritize ease of installation and visual appearance.
Applications of Countersunk Screws
Countersunk screws are ideal for applications requiring a flush surface, such as furniture assembly, aircraft panels, and electronic enclosures, where a smooth finish and reduced snagging are critical. Their conical head design allows them to sit flush or below the surface, enhancing aesthetic appeal and preventing interference with moving parts. These screws are commonly used in woodworking, automotive interiors, and metal fabrication projects requiring precise alignment and secure fastening.
Applications of Pan Head Screws
Pan head screws are widely used in applications requiring a secure and flush fastening with a slightly raised head, such as in electrical components, machinery, and automotive assemblies. Their rounded, flat top design provides ample surface area for drivers, making them ideal for situations where frequent removal and reinsertion are necessary. Pan head screws are preferred in woodwork, metal fabrication, and electronic device enclosures due to their versatility and strong holding power.
Installation Techniques and Tools Required
Countersunk screws require precise countersinking tools like tapered drill bits to create a flush surface, ensuring the screw head sits level with the material. Pan head screws install easily with standard screwdrivers or power drills, offering a raised head that requires no pre-machining of the surface. Proper tool selection and pilot hole preparation differ significantly between these fasteners to optimize holding strength and surface finish.
Aesthetic and Functional Considerations
Countersunk screws offer a flush finish, enhancing aesthetic appeal by sitting level with the surface, which is ideal for applications requiring a smooth, uninterrupted look. Pan head screws protrude above the surface, providing greater load-bearing capacity and easier tool access for fastening and removal. Functionally, countersunk screws are preferred for decorative or aerodynamic surfaces, while pan head screws excel in structural applications needing strong, secure joints.
Strength and Load Bearing Capabilities
Countersunk screws offer superior load distribution due to their flush fit with materials, enhancing overall joint strength and reducing stress concentrations. Pan head screws provide a larger bearing surface under the head, which is beneficial for applications requiring greater resistance to shear forces and vibration. Choosing between the two depends on the specific load-bearing requirements and the need for a smooth surface finish in the fastening application.
Cost Efficiency and Availability
Countersunk screws offer cost efficiency in large-scale manufacturing due to their streamlined design, requiring less material and facilitating flush mounting, which reduces assembly time and labor costs. Pan head screws are generally more readily available in a variety of sizes and materials, often making them a flexible choice for repairs and low-volume projects where quick procurement is essential. Supply chain data indicates pan head screws maintain consistently higher stock levels across distributors, enhancing availability but sometimes at a marginally higher unit price compared to countersunk screws.
Choosing the Right Screw for Your Project
Countersunk screws provide a flush finish ideal for applications requiring a smooth surface, such as in woodworking or furniture assembly. Pan head screws offer a larger bearing surface and greater torque distribution, making them suitable for metal fastening and electrical components. Selecting the right screw depends on surface finish needs, material type, and load requirements to ensure optimal strength and aesthetics.

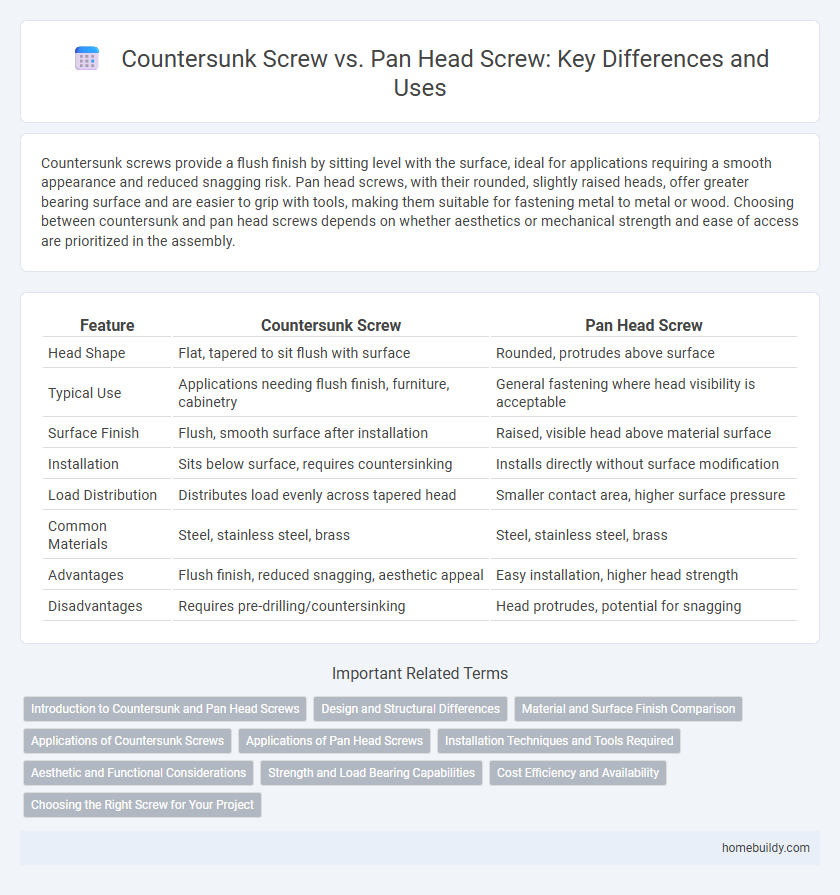

Countersunk Screw vs Pan Head Screw Infographic
