homebuildy.com HVAC duct elbows are designed to efficiently direct airflow within heating, ventilation, and air conditioning systems, typically constructed from sheet metal or flexible materials to withstand high air volumes and temperatures. Dryer duct elbows specifically accommodate the venting needs of clothes dryers, often made from metal or rigid plastic to resist lint buildup and ensure safe exhaust flow. Understanding the differences in material, construction, and purpose is essential for optimal system performance and safety in both HVAC and dryer applications.
Table of Comparison
| Feature | HVAC Duct Elbow | Dryer Duct Elbow |
|---|---|---|
| Purpose | Direct airflow in heating, ventilation, and air conditioning systems | Redirect hot, moist air from dryer to exterior vent |
| Material | Galvanized steel, aluminum, or flexible duct | Aluminum or metal foil, rigid or semi-rigid metal |
| Shape | 90deg, 45deg bends; smooth interior for airflow efficiency | Typically 90deg bends; designed to minimize lint buildup |
| Size | Varies, commonly 4" to 24" diameter | Standard 4" diameter for dryer vents |
| Fire & Safety Standards | Complies with HVAC codes and fire safety regulations | Must meet UL 2158A safety standards to prevent fire risk |
| Installation | Installed within ductwork for HVAC system airflow management | Installed to connect dryer exhaust to exterior vent |
| Maintenance | Periodic cleaning to prevent dust buildup | Regular lint removal essential to reduce fire hazard |
Introduction to HVAC Duct Elbow vs Dryer Duct Elbow
HVAC duct elbows are designed to efficiently redirect airflow within heating, ventilation, and air conditioning systems, using materials that withstand temperature variations and maintain consistent air pressure. Dryer duct elbows specifically cater to venting hot, moisture-laden air from clothes dryers, requiring smooth, lint-resistant surfaces to prevent buildup and fire hazards. Differences in size, material, and airflow requirements distinguish HVAC duct elbows from dryer duct elbows, ensuring optimal performance in their respective applications.
Key Functional Differences
HVAC duct elbows are designed to facilitate air flow within heating, ventilation, and air conditioning systems, supporting temperature control and air distribution across buildings. Dryer duct elbows specifically handle the exhaust of hot, moist air from clothes dryers, emphasizing resistance to lint buildup and heat tolerance to prevent fire hazards. The key functional differences lie in HVAC elbows prioritizing efficient air circulation and pressure management, whereas dryer duct elbows focus on safety and moisture expulsion.
Material Types Used in Both Elbows
HVAC duct elbows are commonly made from galvanized steel, aluminum, or flexible duct materials to withstand high airflow and temperature variations in heating and cooling systems. Dryer duct elbows typically use aluminum or semi-rigid metal to resist heat and prevent lint buildup, ensuring safe and efficient venting of hot air. The material selection in both elbows prioritizes durability, heat resistance, and corrosion prevention tailored to their specific ventilation requirements.
Size and Shape Comparisons
HVAC duct elbows are typically larger in diameter, ranging from 4 to 24 inches, designed to accommodate higher airflow volumes and maintain efficient ventilation in heating, ventilation, and air conditioning systems. Dryer duct elbows are smaller, usually 4 inches in diameter, optimized for connecting dryer vents while minimizing lint buildup and airflow resistance. The shape of HVAC duct elbows often includes gradual bends to reduce air turbulence, whereas dryer duct elbows tend to have sharper angles to fit tight spaces and direct exhaust efficiently.
Installation Requirements
HVAC duct elbows require proper sealing and insulation to maintain airflow efficiency and prevent energy loss, typically involving metal or flexible duct materials compatible with heating and cooling systems. Dryer duct elbows demand smooth, rigid metal construction with minimal bends to reduce lint buildup and fire risk, following National Fire Protection Association (NFPA) codes for safe venting. Installation of HVAC elbows emphasizes airflow optimization, whereas dryer duct elbows prioritize fire safety and lint clearance with strict adherence to local building codes.
Airflow Efficiency Considerations
HVAC duct elbows are designed with smooth curves and larger radii to minimize airflow resistance and maintain optimal system efficiency, reducing energy consumption and noise. Dryer duct elbows often have tighter bends and smaller diameters that can restrict airflow, increasing the risk of lint buildup and reducing dryer performance. Ensuring proper elbow design and installation in HVAC systems is critical for maintaining effective air distribution and preventing pressure drops.
Safety and Code Compliance
HVAC duct elbows are designed to withstand higher temperatures and pressure levels, meeting strict building codes to ensure proper airflow and fire safety within ventilation systems. Dryer duct elbows, specifically made from non-combustible materials like aluminum, reduce the risk of lint buildup and overheating, which are critical factors in preventing household fires and complying with residential code requirements. Proper installation and adherence to local safety standards for both HVAC and dryer duct elbows minimize hazards and optimize system performance.
Cost Differences
HVAC duct elbows typically cost more than dryer duct elbows due to their larger size, heavier materials, and higher durability standards required for air handling systems. HVAC elbows are often made from galvanized steel or aluminum, which increases material expenses compared to the lightweight, flexible metal or plastic used in dryer ducts. Installation complexity and compliance with ventilation codes further contribute to the higher overall cost of HVAC duct elbows versus dryer duct elbows.
Maintenance and Longevity
HVAC duct elbows require regular inspection and cleaning to prevent dust buildup and ensure optimal airflow, which extends their functional lifespan. Dryer duct elbows must be maintained by removing lint accumulation frequently to reduce fire hazards and maintain efficient drying performance. Proper maintenance of both types significantly enhances durability and system efficiency, but dryer duct elbows typically demand more frequent attention due to lint sensitivity.
Choosing the Right Elbow for Your Application
HVAC duct elbows are designed to handle larger air volumes and higher pressure, making them suitable for ventilation and heating systems, while dryer duct elbows are specifically engineered to withstand heat and lint accumulation from clothes dryers. Choosing the right elbow depends on factors such as airflow requirements, temperature resistance, and compliance with building codes to ensure safety and efficiency. Proper material selection, such as galvanized steel for HVAC or flexible aluminum for dryer ducts, optimizes performance and reduces maintenance.

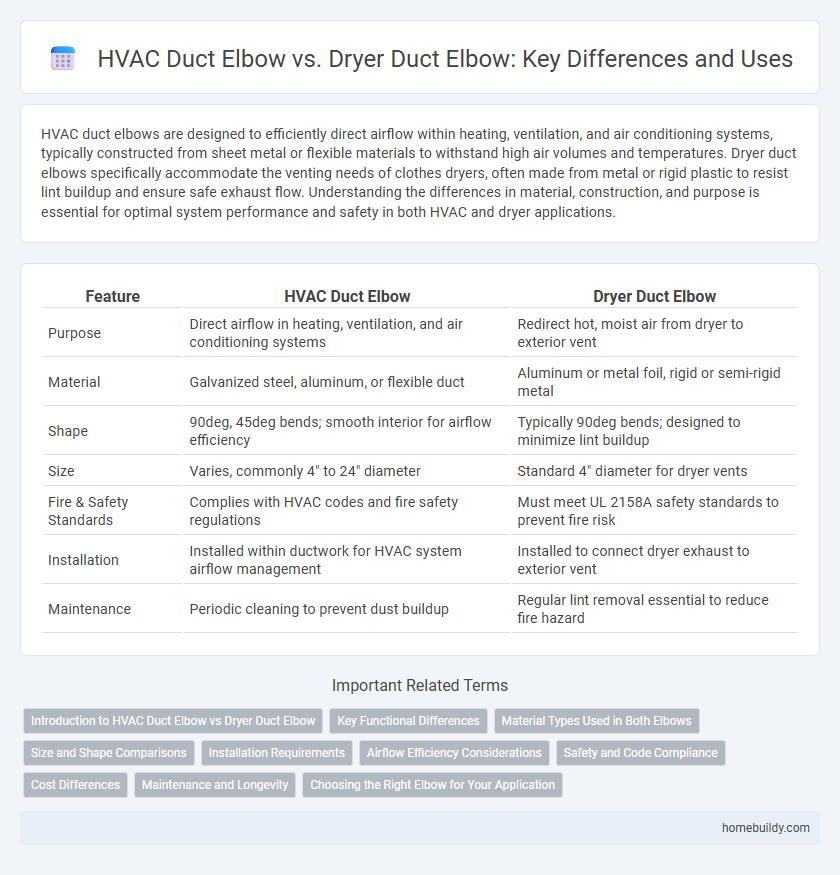

HVAC duct elbow vs Dryer duct elbow Infographic
