homebuildy.com Duct elbows and duct bends both change airflow direction in HVAC systems, but duct elbows have a sharper angle, typically 90 degrees, resulting in higher pressure loss. Duct bends offer a gentler curve, which reduces turbulence and maintains smoother airflow, making them more efficient for energy savings and noise reduction. Choosing between the two depends on space constraints and system performance requirements.
Table of Comparison
| Feature | Duct Elbow | Duct Bend |
|---|---|---|
| Definition | Sharp angled change in duct direction, typically 90deg or 45deg. | Gradual curved duct section allowing smooth airflow transition. |
| Airflow Efficiency | Higher turbulence and pressure loss due to abrupt angle. | Lower turbulence, better airflow with minimal pressure drop. |
| Common Applications | Tight spaces requiring sharp directional changes. | Areas prioritizing energy efficiency and quiet operation. |
| Manufacturing | Straight metal pieces joined at an angle. | Formed from sheet metal or flexible materials into smooth curves. |
| Cost | Generally cheaper and easier to install. | More expensive due to complex shaping. |
| Maintenance | Easier to clean but may trap debris at corners. | Less debris buildup, easier to maintain airflow quality. |
Introduction to Duct Elbow and Duct Bend
Duct elbows and duct bends are essential components in HVAC systems used to change the direction of airflow within ductwork. A duct elbow typically features a sharper angle, commonly 90 or 45 degrees, allowing for more compact directional changes, while a duct bend offers a more gradual curve, reducing airflow resistance and noise. Selecting between a duct elbow and a duct bend depends on space constraints and the need to optimize airflow efficiency in ventilation design.
Defining Duct Elbow: Structure and Function
A duct elbow is a pre-fabricated, curved fitting used to change the direction of airflow within HVAC duct systems, typically at a 90-degree angle, designed with a smooth radius to minimize air resistance and turbulence. Unlike a duct bend, which is often a flexible or custom-formed section of ductwork, the duct elbow features a rigid, factory-made structure that ensures consistent airflow efficiency and ease of installation. Its primary function is to maintain optimal air velocity and pressure by providing a streamlined transition between duct segments, essential for effective ventilation and heating or cooling distribution.
Understanding Duct Bend: Key Features
Duct bend refers to a smooth, gradual curve in ductwork designed to minimize airflow resistance and noise, often used to change direction without sharp angles. Unlike a duct elbow, which typically involves a sharp 45 or 90-degree angle, duct bends offer improved aerodynamic efficiency and reduced pressure loss. Key features include a larger radius of curvature and continuous airflow, making them ideal for HVAC systems requiring quiet operation and enhanced air distribution.
Comparison: Duct Elbow vs Duct Bend
Duct elbows and duct bends are both used to change the direction of airflow in HVAC systems, but duct elbows typically have a sharper angle, such as 90 or 45 degrees, resulting in higher airflow resistance compared to the gradual curvature of duct bends. Duct bends offer smoother airflow transitions, reducing pressure loss and noise, making them more efficient for long duct runs. Choosing between a duct elbow and duct bend depends on space constraints and airflow efficiency requirements in ventilation design.
Applications: Where to Use Duct Elbow vs Duct Bend
Duct elbows are ideal for sharp directional changes in HVAC systems, typically used in tight spaces where a 90-degree or 45-degree turn is necessary to navigate corners or obstacles. Duct bends provide smoother airflow with a gradual curve, making them suitable for large ducts or long runs where minimizing pressure loss and turbulence is critical. Selecting between a duct elbow and duct bend depends on space constraints, airflow efficiency needs, and the specific layout of the ventilation system.
Installation Differences Between Duct Elbow and Duct Bend
Duct elbows have precise angle specifications, commonly 45 or 90 degrees, and require exact alignment during installation to ensure efficient airflow and minimize pressure loss. Duct bends offer more flexibility with gradual curves, allowing easier adjustments on-site but may require additional space and careful measurements to maintain duct integrity. Installation of duct elbows often involves rigid connections and sealing, whereas duct bends need careful handling to avoid deformation and ensure smooth air transition.
Airflow Performance: Duct Elbow vs Duct Bend
Duct elbows create sharper turns, causing increased turbulence and pressure loss, which can negatively impact airflow performance compared to duct bends. Duct bends feature more gradual curves that maintain smoother airflow, reducing friction and energy consumption in HVAC systems. Proper selection of duct elbows or bends is essential to optimize ventilation efficiency and system longevity.
Cost Analysis: Duct Elbow vs Duct Bend
Duct elbows generally incur higher costs compared to duct bends due to their more complex manufacturing process and sharper angle design, which requires additional materials and labor. Duct bends, featuring gentler curves, are typically less expensive and offer improved airflow efficiency by reducing turbulence and pressure loss. When evaluating cost analysis, selecting duct bends can result in lower installation and maintenance expenses, whereas duct elbows might be preferred for tighter space constraints despite the increased cost.
Maintenance Considerations for Elbows and Bends
Duct elbows require more frequent inspection for wear and tear due to sharper airflow changes causing increased stress and potential for debris buildup, whereas duct bends with gentler curves typically experience less turbulence and lower maintenance demands. The tighter radius of elbows can accelerate accumulation of dust and particulates, necessitating regular cleaning to maintain airflow efficiency and prevent corrosion. In contrast, bends allow smoother air transition, reducing strain on duct joints and extending intervals between maintenance cycles.
Choosing the Right Fit: Duct Elbow or Duct Bend
Duct elbows provide precise 90-degree or 45-degree angle turns essential for tight space installations, ensuring minimal air resistance and efficient airflow in HVAC systems. In contrast, duct bends offer smoother, larger-radius curves that reduce turbulence and pressure loss, making them ideal for longer, gradual directional changes. Selecting the right fit depends on available space, airflow requirements, and system design, with elbows suited for compact setups and bends for optimized performance over extended duct runs.

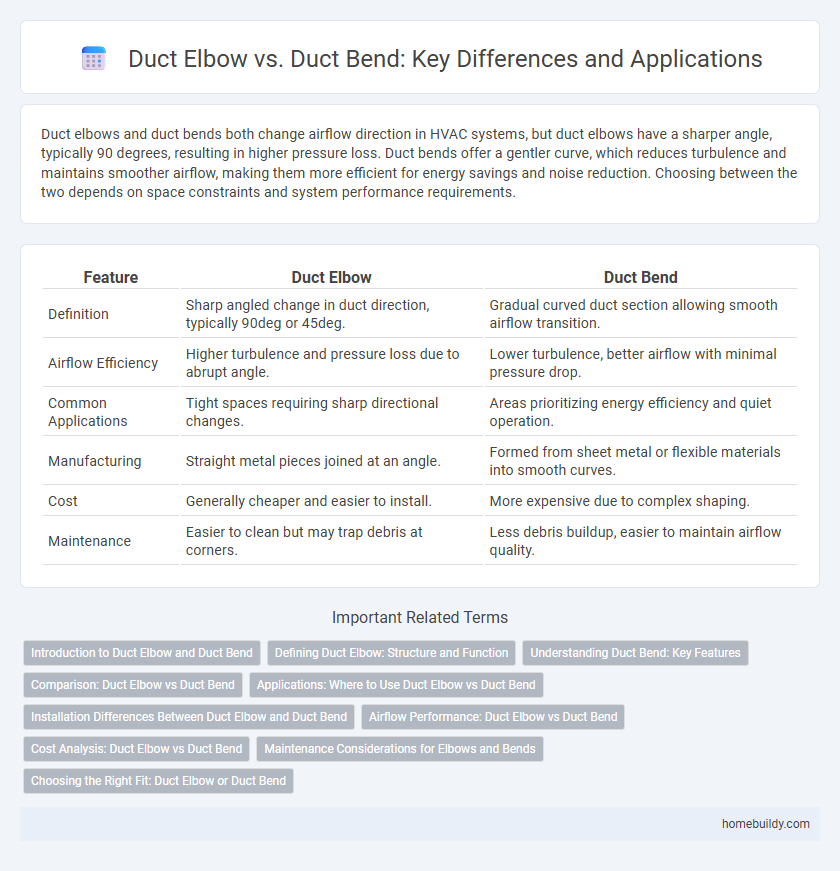

Duct elbow vs Duct bend Infographic
