homebuildy.com Suspended cable trays offer flexible routing options and save valuable floor space by hanging from ceilings or structures, ideal for environments with limited floor access. Floor-mounted cable trays provide easier installation and maintenance access but occupy floor area, making them suitable for open spaces with less overhead obstruction. Both systems support organized cable management, with selection depending on the facility's architectural constraints and operational requirements.
Table of Comparison
| Feature | Suspended Cable Tray | Floor-Mounted Cable Tray |
|---|---|---|
| Installation Location | Ceilings or overhead areas | Ground level or floor surfaces |
| Space Utilization | Optimizes floor space by elevation | Utilizes floor area, may occupy walkways |
| Accessibility | Easy access for maintenance at height | Simple access at ground level |
| Load Capacity | Supports moderate to heavy cable loads | Typically supports heavier loads securely |
| Safety | Reduces trip hazards by elevation | Requires protection to prevent trip hazards |
| Installation Cost | Higher due to supports and suspension hardware | Lower, simpler mounting on floor |
| Maintenance | Requires ladders or lifts for access | Easy and quick to maintain |
| Common Applications | Industrial plants, commercial buildings | Warehouses, data centers, factories |
Introduction to Cable Tray Installation Methods
Suspended cable trays are installed using support rods or hangers attached to ceilings or beams, providing efficient cable management in elevated spaces and preventing floor obstruction. Floor-mounted cable trays rest directly on the ground or are fixed to floor supports, offering easy access for maintenance but requiring clear floor space. Choosing between suspended and floor-mounted cable trays depends on installation environment, load capacity, and accessibility requirements for cable routing.
Overview: Suspended vs Floor-Mounted Cable Trays
Suspended cable trays are installed below ceilings or other structures, providing efficient use of vertical space and easy access for maintenance in industrial and commercial settings. Floor-mounted cable trays rest directly on the ground, offering greater load capacity and stability, making them ideal for heavy cable routes in warehouses and manufacturing plants. Both types support organized cable management but differ in installation complexity, space utilization, and environmental suitability.
Key Differences in Design and Structure
Suspended cable trays are designed to hang from ceilings or support structures, utilizing hangers and rods for elevated cable management, which minimizes floor space usage. Floor-mounted cable trays rest directly on the ground or on support brackets, providing easier access for maintenance but requiring more floor area. The structural difference lies in load distribution: suspended trays depend on overhead supports, while floor-mounted trays rely on robust base frames to support cable weight and environmental factors.
Load Bearing Capacity Comparison
Suspended cable trays typically offer lower load-bearing capacity compared to floor-mounted cable trays due to their reliance on overhead support systems which limit weight distribution. Floor-mounted cable trays provide higher load capacity by directly transferring loads to the ground, making them suitable for heavy cable installations and industrial environments. Proper selection depends on the load requirements, with floor-mounted trays preferred for maximum strength and suspended trays for space-saving applications.
Installation Requirements and Complexity
Suspended cable trays require robust overhead support systems, precise alignment, and secure fastening to ceilings or beams, making their installation more intricate and time-consuming compared to floor-mounted cable trays. Floor-mounted cable trays demand a stable floor surface and often simpler anchoring methods, which reduces installation complexity and time. The choice between suspended and floor-mounted trays depends on the structural environment, with suspended trays suitable for areas where floor space must remain clear and floor-mounted trays preferred for easy access and maintenance.
Space Optimization and Accessibility
Suspended cable trays maximize space efficiency by utilizing overhead areas, freeing floor space for equipment and movement in industrial and commercial settings. Floor-mounted cable trays offer superior accessibility for maintenance and cable installation but can limit walking space and equipment layout flexibility. Choosing between suspended and floor-mounted cable trays depends on space constraints and priority on ease of access for cabling management.
Cost Analysis of Both Systems
Suspended cable trays typically incur higher initial installation costs due to the need for additional supports, hangers, and labor for overhead mounting, but they save valuable floor space, which can be critical in congested industrial or commercial environments. Floor-mounted cable trays generally have lower upfront expenses since they require less structural support and simpler installation, but they may lead to increased maintenance costs and potential hazards in high-traffic areas. When performing cost analysis, factors such as project scale, site layout, accessibility, and long-term maintenance should be weighed to determine the most economical cable tray system.
Safety and Maintenance Considerations
Suspended cable trays offer enhanced safety by keeping cables elevated and protected from floor-level hazards such as water spills and physical impacts, reducing trip risks and electrical faults. Floor-mounted cable trays, while easier to inspect and maintain, are more prone to damage and contamination from foot traffic and equipment movement, necessitating frequent checks and cleaning. Maintenance efficiencies improve with suspended trays due to better accessibility and reduced exposure to debris, making them preferable in environments prioritizing long-term operational safety.
Application Scenarios and Suitability
Suspended cable trays are ideal for industrial settings with limited floor space or complex layouts, offering easy access for maintenance and efficient cable management above ground level. Floor-mounted cable trays provide robust support in environments with heavy equipment or where cables follow straightforward, accessible pathways, making them suitable for warehouses and manufacturing floors. The choice depends on space constraints, load requirements, and ease of installation tailored to facility-specific operational needs.
Choosing the Right Cable Tray System for Your Project
Choosing the right cable tray system involves evaluating installation environment, load capacity, and maintenance needs. Suspended cable trays are ideal for overhead installations, offering easy access and minimizing floor space interference, while floor-mounted trays provide robust support for heavy cable loads in industrial settings with ample floor area. Assessing project-specific factors such as cable weight, available space, and safety requirements ensures optimal cable management and system longevity.

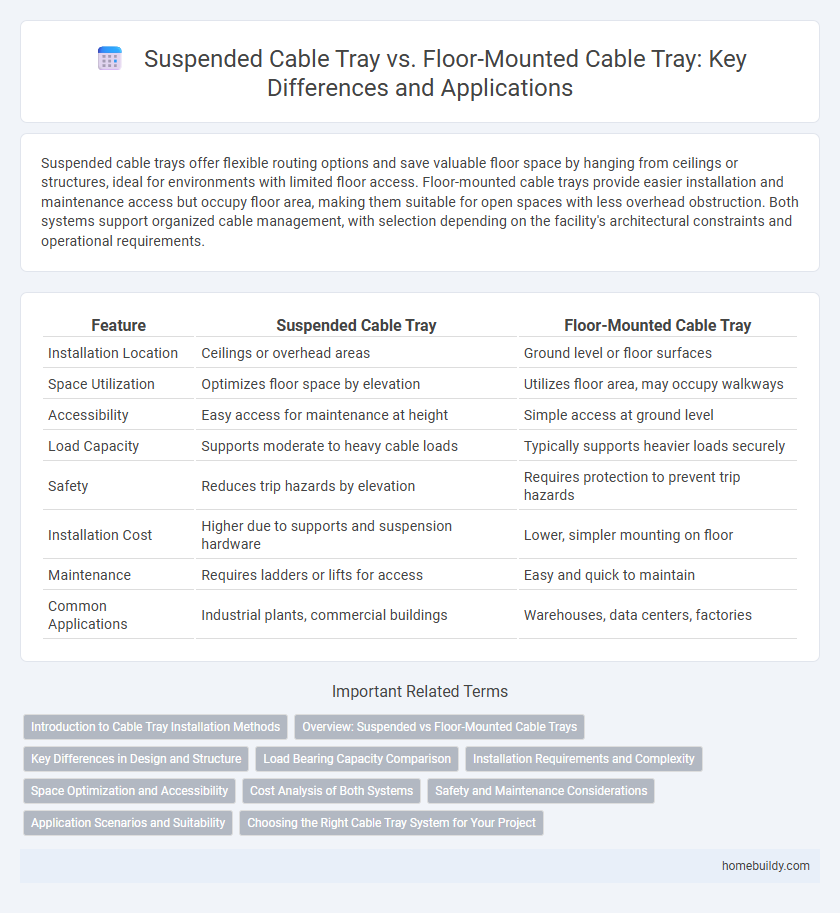

Suspended cable tray vs Floor-mounted cable tray Infographic
