homebuildy.com End plate connectors provide a rigid and strong connection by welding a plate to the end of a beam, allowing for efficient load transfer to columns or other structural elements. Beam cleat connectors use bolted plates attached to the beam web, offering easier installation and adjustability but generally less moment resistance compared to end plates. Selecting between them depends on structural requirements, with end plates favored for moment connections and beam cleats suited for shear connections or simpler framing scenarios.
Table of Comparison
| Feature | End Plate Connector | Beam Cleat Connector |
|---|---|---|
| Connection Type | Bolted end plate welded to beam | Bolted cleat plates welded to beam web |
| Installation Speed | Moderate | Fast |
| Load Capacity | High, suitable for moment connections | Medium, mainly shear connections |
| Structural Use | Moment-resisting frames, rigid connections | Simple spans, shear connections, secondary framing |
| Fabrication | More complex, requires welding of end plate | Less complex, welded cleats |
| Cost | Higher due to materials and labor | Lower, faster assembly |
| Adjustability | Limited once bolted | Some adjustability during assembly |
| Common Materials | Steel plates, high-strength bolts | Steel cleats, standard bolts |
Introduction to Beam Connectors
Beam connectors serve as essential structural components for joining beams in construction projects. End plate connectors provide a rigid, flush connection by bolting a steel plate to the beam end, ensuring high load transfer and stability. Beam cleat connectors offer a simpler, more flexible attachment through welded or bolted angle plates, facilitating easier on-site adjustments and moderate load-bearing capacity.
Overview of End Plate Connectors
End plate connectors consist of a flat steel plate welded to the end of a beam, providing a secure and rigid connection to columns or other beams through bolted joints. They offer superior load transfer capacity and stability for moment-resisting frames in structural applications. End plate connectors are preferred in scenarios requiring high structural integrity and precise alignment, outperforming beam cleat connectors in terms of moment resistance.
What is a Beam Cleat Connector?
A Beam cleat connector is a structural steel component used to connect beams to columns or other beams, providing a rigid or semi-rigid joint. It consists of a cleat plate bolted to the supporting member, allowing for quick installation and ease of adjustment during construction. Compared to end plate connectors, beam cleat connectors offer simplified connections with reduced fabrication costs and improved site flexibility.
Key Differences: End Plate vs Beam Cleat Connectors
End plate connectors provide rigid, fully welded joints ideal for high-load structural applications, while beam cleat connectors offer simpler installation with bolted connections suitable for lighter loads and easier adjustments. End plates distribute stress across the entire plate surface, enhancing structural stability, whereas beam cleats concentrate forces at the cleat bolts, limiting their load capacity. The choice between end plate and beam cleat connectors depends on load requirements, installation time, and design flexibility within steel framing systems.
Structural Performance Comparison
End plate connectors provide superior moment resistance and rotational stiffness, making them ideal for framing systems requiring high load transfer efficiency and reduced deflection. Beam cleat connectors offer faster installation and flexibility but exhibit lower bending capacity and limited moment resistance, often suited for secondary framing where rotational demands are minimal. Structural performance of end plate connectors typically outperforms beam cleat connectors in applications demanding greater rigidity and strength under dynamic loads.
Load Transfer Mechanisms
End plate connectors transfer load primarily through bearing and bolt shear, creating rigid moment connections ideal for high load capacities. Beam cleat connectors rely on shear load transfer via bolted cleats and offer easier installation for pinned or semi-rigid connections. The choice between these connectors depends on the required moment resistance and ease of assembly in structural steel framing.
Installation Process and Complexity
End plate connectors feature a straightforward installation process requiring precise alignment and bolting of pre-welded plates, which can streamline assembly but demands accurate positioning for structural integrity. Beam cleat connectors offer quicker installation with fewer alignment challenges due to their bolt-on design, enabling faster on-site adjustments and reducing labor time. The complexity of end plate connectors lies in welding and alignment precision, whereas beam cleats prioritize ease of installation and flexibility in field modifications.
Cost Implications and Material Usage
End plate connectors generally incur higher material costs due to thicker plates and more extensive welding, making them pricier than beam cleat connectors, which use simpler components and less steel. Beam cleat connectors reduce labor expenses with quicker installation times, optimizing overall project budgets. Material efficiency in beam cleat systems contributes to lower weight and cost, favoring projects with tight budget constraints.
Applications and Suitability
End plate connectors are widely used in structural steel framing for their ability to transfer high loads through bolted, rigid connections, making them ideal for primary beams supporting floors or roofs in commercial and industrial buildings. Beam cleat connectors are suited for secondary members or bracing applications, offering quick installation and allowing limited rotational movement, which is advantageous in accommodating structural deflections and dynamic loads. The choice between end plate and beam cleat connectors depends on load requirements, installation speed, and the need for rotational flexibility in the connection design.
Selecting the Right Connector for Your Project
End plate connectors provide robust, rigid connections ideal for heavy load-bearing steel structures, ensuring high strength and ease of installation with welded or bolted attachments. Beam cleat connectors offer flexibility and faster assembly in secondary framing, suitable for applications requiring alignment adjustments and moderate load capacity. Selecting the right connector depends on structural requirements, load conditions, and project timeline, with end plates preferred for primary beams and cleats favored for secondary connections.

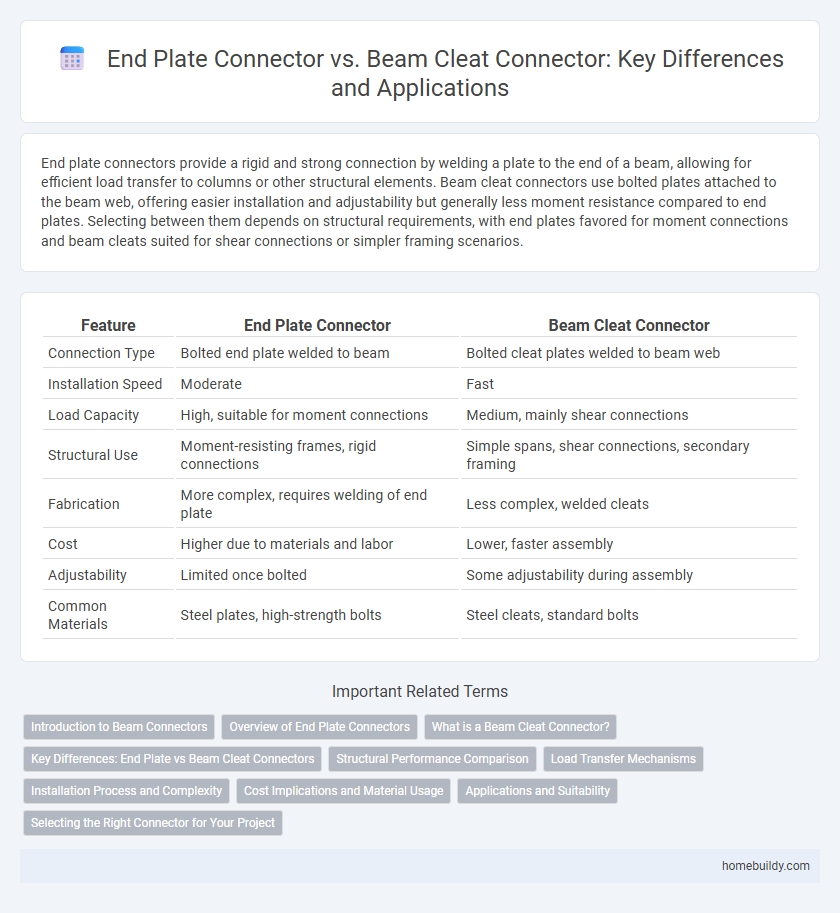

End plate connector vs Beam cleat connector Infographic
