homebuildy.com Wall ties connect masonry walls to the structural frame, providing stability by preventing separation under load. Lateral restraint, on the other hand, directly supports the wall against sideways movement, minimizing buckling risks. While wall ties ensure the wall remains attached, lateral restraints absorb lateral forces to maintain overall structural integrity.
Table of Comparison
| Feature | Wall Tie | Lateral Restraint |
|---|---|---|
| Purpose | Connects outer and inner leafs of cavity walls to transfer lateral loads | Prevents lateral movement of masonry walls by anchoring to structural elements |
| Function | Ensures wall stability by balancing wind and structural loads between wall leaves | Restrains wall from buckling or tilting under lateral forces |
| Installation | Embedded during brick/block laying between wall leaves | Fixed to primary structures such as floors or roofs using brackets and ties |
| Material | Stainless steel or galvanized steel strips or wires | Steel straps, angles, or proprietary restraint systems |
| Application | Common in cavity walls for residential and commercial buildings | Used in masonry walls requiring additional lateral stability, especially tall or slender walls |
| Regulations | Complies with British Standard BS EN 845-1 | Follow design codes such as Eurocode 6 and specific structural standards |
Understanding Wall Ties and Lateral Restraints
Wall ties secure outer and inner leaves of cavity walls, preventing separation under lateral loads, while lateral restraints stabilize wall panels against horizontal forces such as wind pressure. Wall ties transfer stresses between wall leaves, ensuring structural integrity, whereas lateral restraints connect walls to floors or roofs to resist lateral displacement. Understanding the distinct roles of wall ties and lateral restraints is essential for effective cavity wall performance and overall building stability.
Key Differences Between Wall Ties and Lateral Restraints
Wall ties primarily connect the outer brickwork to the inner structural frame, ensuring stability and preventing separation. Lateral restraints are designed to restrict horizontal movement of masonry walls caused by wind loads or other lateral forces. Unlike wall ties that provide a linking function, lateral restraints focus on enhancing wall stiffness and preventing buckling under pressure.
Functions of Wall Ties in Masonry Construction
Wall ties secure masonry leaves to the structural frame, preventing separation and enhancing overall stability. They transfer lateral forces from the outer wall to the inner structure, providing essential lateral restraint against wind and seismic loads. Properly installed wall ties maintain the structural integrity and durability of cavity walls by minimizing movement and potential cracking.
The Role of Lateral Restraints in Structural Stability
Lateral restraints provide essential support by preventing wall ties from allowing excessive movement or deformation of masonry walls under lateral loads. Wall ties connect the outer wall to the inner structure, but without adequate lateral restraints, walls risk buckling or collapse due to insufficient stability. Properly designed lateral restraints enhance structural integrity by distributing forces and maintaining the alignment of masonry elements.
Types of Wall Ties: Materials and Applications
Wall ties, crucial for ensuring structural integrity, come in various types based on materials such as galvanized steel, stainless steel, and plastic, each offering distinct corrosion resistance and load-bearing capabilities. Galvanized steel ties are commonly used in traditional masonry for their strength and cost-effectiveness, while stainless steel ties provide superior durability in high-moisture environments. Plastic wall ties, often employed in lightweight or non-load-bearing applications, resist chemical corrosion and simplify installation but lack the tensile strength of metal counterparts.
Common Lateral Restraint Systems and Methods
Common lateral restraint systems for walls include wall ties, which connect the outer masonry leaf to the inner structure, ensuring stability and distributing loads effectively. Wall ties act as critical lateral restraints by preventing bulging and enhancing overall wall rigidity under wind or seismic forces. Effective lateral restraint methods often incorporate different types of wall ties such as stainless steel, galvanised steel, or flexible ties, tailored to specific wall constructions and environmental conditions.
Installation Guidelines for Wall Ties vs. Lateral Restraints
Wall ties must be installed at regular intervals, typically every 450 mm horizontally and every 225 mm vertically, ensuring they penetrate both leaves of cavity walls to maintain structural stability and prevent wall separation. Lateral restraints require precise fixing to floor slabs or beams, usually positioned no more than 2 meters apart vertically, to restrict wall movement under lateral loads. Proper alignment and embedment depth of both wall ties and lateral restraints are critical for effective load transfer and long-term durability of masonry structures.
Building Codes and Standards for Wall Ties and Lateral Restraints
Wall ties and lateral restraints play crucial roles in maintaining masonry wall stability according to building codes, including BS EN 846-6 and ASTM E2273 standards. Wall ties connect the outer masonry wythes to the inner structure, ensuring load transfer and preventing separation, while lateral restraints secure walls against out-of-plane forces, critical for wind and seismic resistance. Compliance with regulations such as Eurocode 6 and the International Building Code (IBC) ensures correct material specifications, spacing, and installation methods for both elements, enhancing structural integrity and safety.
Signs of Failure: Wall Tie vs. Lateral Restraint Issues
Wall tie failure often manifests through cracks in mortar joints, bulging walls, and increased wall movement, indicating compromised structural integrity. Lateral restraint issues typically present as excessive wall deflection, misalignment of structural elements, and diagonal cracking due to insufficient support against horizontal forces. Identifying these signs early is crucial for maintaining wall stability and preventing progressive structural damage.
Choosing the Right Solution: When to Use Wall Ties or Lateral Restraints
Wall ties are essential for connecting walls to support structures, providing stability in cavity wall construction by transferring loads and preventing separation. Lateral restraints, however, are designed to prevent lateral movement or buckling of masonry walls, often used in situations where walls act as cantilevers or when external forces such as wind pressures are significant. Choosing between wall ties and lateral restraints involves assessing structural requirements, wall length, and exposure to lateral loads to ensure optimal performance and durability.

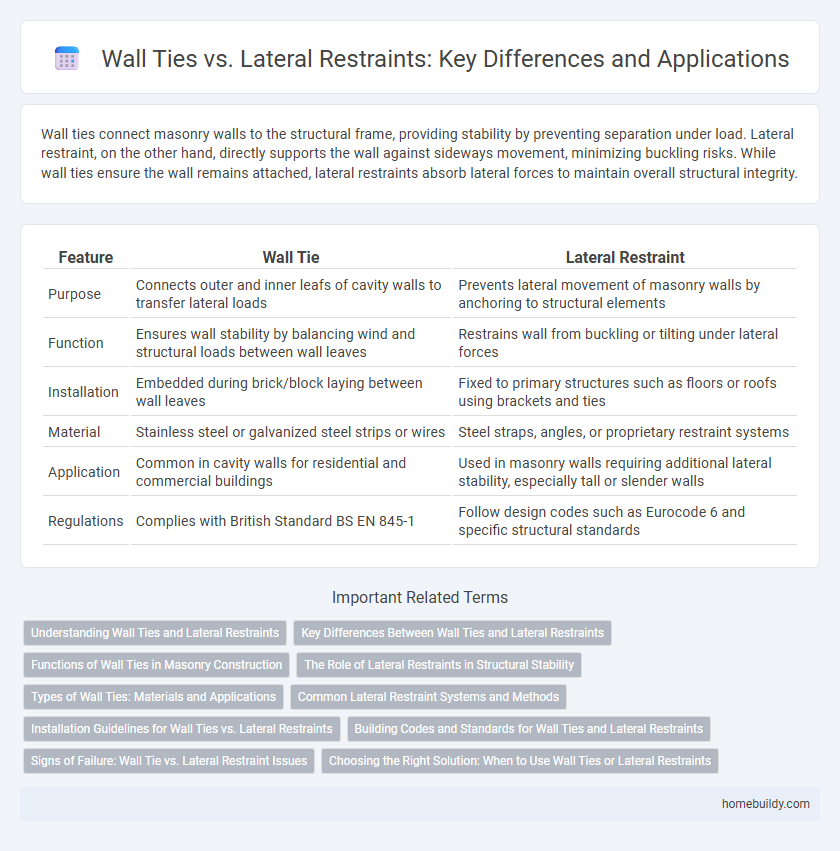

Wall tie vs Lateral restraint Infographic
