homebuildy.com A ridge truss connector is designed to join the peak or apex of two sloping roof members, providing stability and strength at the highest point of the roof structure. An eave truss connector secures the lower edges of roof trusses to the top plate of exterior walls, ensuring proper load transfer and structural integrity at the roof's overhang. Both connectors serve critical roles in roof framing but are optimized for different positions and load conditions within the truss system.
Table of Comparison
| Feature | Ridge Truss Connector | Eave Truss Connector |
|---|---|---|
| Location | Top ridge of the roof | Edge or eave of the roof |
| Purpose | Joins roof trusses at the ridge line | Secures trusses to wall plates at roof edges |
| Load Type | Supports vertical and lateral loads at ridge | Resists uplift and lateral forces at eave |
| Material | Galvanized steel, heavy gauge | Galvanized steel with corrosion resistance |
| Installation | Fastened between top chord trusses with nails or screws | Installed between truss bottom chord and wall plate |
| Typical Use | High-strength ridge connections in roof framing | Anchor trusses to walls, prevent uplift |
| Structural Role | Ensures alignment and load transfer across ridge | Provides stability and wind resistance at eaves |
Introduction to Truss Connectors
Ridge truss connectors and eave truss connectors serve critical roles in connecting structural components in roof framing systems, with ridge connectors joining upper truss chords at roof peaks and eave connectors securing trusses to wall plates or beams at the roof edge. Both connectors are engineered to transfer loads efficiently, ensuring stability and structural integrity under various forces such as wind, snow, and seismic activity. Proper selection and installation of ridge and eave truss connectors optimize load distribution and enhance the overall durability of the truss system.
Overview of Ridge Truss Connectors
Ridge truss connectors are specialized metal brackets designed to securely join the top chord of opposing roof trusses at the ridge line, ensuring structural stability and load distribution. These connectors are critical in resisting uplift and lateral forces by providing a strong, rigid connection at the roof apex. Compared to eave truss connectors, ridge truss connectors focus primarily on maintaining alignment and transferring loads at the roof peak rather than at the overhanging edge.
Overview of Eave Truss Connectors
Eave truss connectors are specialized metal plates designed to securely join truss ends to the top plate of exterior walls, providing critical lateral stability and load transfer for roof structures. These connectors typically feature angled flanges and pre-punched holes for nails or screws, ensuring easy installation and enhanced resistance against wind uplift and seismic forces. Unlike ridge truss connectors, which join trusses at the roof peak, eave truss connectors focus on supporting the roof edges, making them essential for maintaining structural integrity along the building's perimeter.
Structural Roles: Ridge vs Eave Truss Connectors
Ridge truss connectors are designed to join the top chords of opposing roof trusses, providing critical support and stability at the roof's peak by transferring vertical and lateral loads. Eave truss connectors secure the lower ends of roof trusses to wall plates, ensuring proper load distribution from the roof to the structure's walls and preventing uplift caused by wind forces. Both connectors play essential structural roles but address different stress points within the roof framing system for overall building integrity.
Design Differences: Ridge vs Eave Connections
Ridge truss connectors are engineered to join two opposing roof truss top chords at the peak, requiring robust load-bearing capacity to handle compression and shear forces where roof slopes meet. In contrast, eave truss connectors secure the lower ends of trusses to the building's wall plate or eave, focusing on anchoring the roof structure and resisting uplift and lateral loads. The design variations in geometry and material thickness reflect these differing structural demands, optimizing performance for ridge connections under vertical compression and eave connections for tension and wind uplift resistance.
Installation Methods for Ridge and Eave Truss Connectors
Ridge truss connectors are typically installed at the peak of a roof, aligning and securing the top chords of opposing trusses using metal plates or gusset plates, which require precise positioning and fastening to ensure structural stability. Eave truss connectors, on the other hand, are installed along the roof edges where the trusses meet the wall plate, often using metal brackets, hurricane ties, or anchor bolts to resist uplift forces and lateral movement. Installation methods for both types demand accurate measurements, appropriate fasteners such as nails or screws rated for structural loads, and strict adherence to building codes for effective load transfer and long-term durability.
Load Distribution and Performance Comparison
Ridge truss connectors primarily manage vertical loads at the roof peak, ensuring even load transfer between opposing rafters, which enhances structural stability by minimizing deflection. Eave truss connectors focus on lateral load distribution at the roof edge, critical for resisting uplift forces and maintaining the integrity of overhangs during high wind events. Performance comparison reveals ridge connectors excel in handling compressive loads, while eave connectors are optimized for tension and shear forces, making their strategic placement essential for overall roof system durability.
Material Selection for Ridge and Eave Truss Connectors
Ridge truss connectors are typically made from high-strength galvanized steel to withstand significant compressive forces and roof loads at the peak of the truss. Eave truss connectors often utilize corrosion-resistant metals like stainless steel or galvanized steel with enhanced coatings to resist moisture and environmental exposure at the roof edge. Selecting materials with optimal tensile strength and corrosion resistance ensures structural integrity and longevity in both ridge and eave applications.
Common Issues and Solutions: Ridge vs Eave Connectors
Ridge truss connectors often face challenges related to tension and load distribution at the peak of the roof, leading to potential structural weaknesses if improperly installed or undersized. Eave truss connectors commonly encounter issues with lateral stability and uplift resistance due to wind forces acting at the roof edges. Ensuring proper sizing, using corrosion-resistant materials, and following manufacturer installation guidelines are effective solutions to prevent failure in both ridge and eave truss connectors.
Choosing the Right Truss Connector for Your Project
Selecting the right truss connector depends on the specific structural requirements; ridge truss connectors are designed to join the peak or ridge of a roof truss system, providing critical support for the highest load concentration. Eave truss connectors secure the truss to the wall plate or top plate at the building's perimeter, ensuring lateral stability and resistance to uplift forces. Understanding the load distribution and connection points in your project will guide the choice between ridge and eave truss connectors for optimal structural integrity.

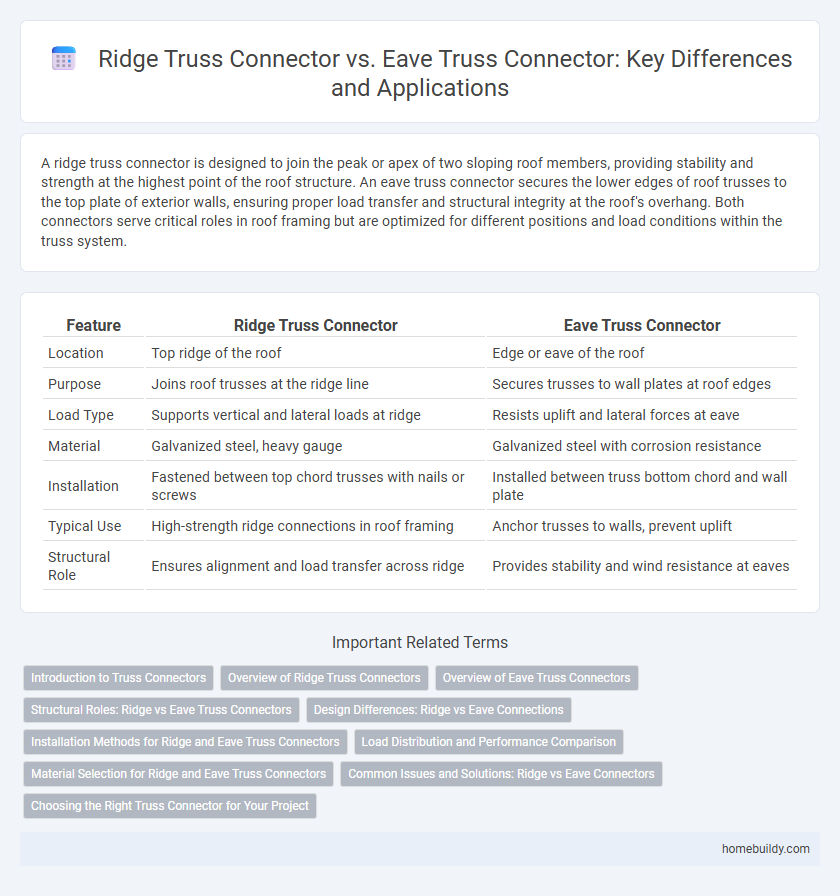

Ridge truss connector vs eave truss connector Infographic
