homebuildy.com Step flashing is installed in overlapping sections along the roof's edge, directing water away from joints where the roof meets vertical surfaces, while counter flashing is applied over step flashing or other base flashings to provide a secondary barrier against water infiltration. Step flashing is typically integrated into each course of shingles, ensuring individual protection at every step, whereas counter flashing is often embedded into the wall or chimney surface for a more secure seal. Understanding the complementary functions of step flashing and counter flashing is essential for preventing leaks and maintaining the roof's long-term durability.
Table of Comparison
| Feature | Step Flashing | Counter Flashing |
|---|---|---|
| Purpose | Prevents water infiltration at roof-to-wall joints by directing water away. | Protects and covers step flashing to prevent water entry behind the wall. |
| Location | Installed where the roof meets vertical walls or chimneys, layered with shingles. | Embedded or attached over step flashing on vertical surfaces like walls or chimneys. |
| Material | Typically made from metal such as aluminum, copper, or galvanized steel. | Same metal as step flashing, often metal sheets or strips. |
| Installation | Individual pieces bent and layered under each shingle course, stepped up the wall. | Secured over step flashing, either set into mortar joints or attached with fasteners. |
| Function | Diverts water away from the joint in sections, creating overlapping barriers. | Seals and protects step flashing, preventing backflow of water into the structure. |
| Maintenance | Check for damage or displacement; easier to inspect due to exposure. | Harder to inspect; requires wall or chimney surface review for deterioration. |
Introduction to Step Flashing and Counter Flashing
Step flashing consists of individual L-shaped metal pieces installed at roof-to-wall intersections, designed to direct water away from the structure and prevent leaks. Counter flashing overlays step flashing and is embedded into the wall, creating a watertight seal that protects the underlying step flashing from exposure and damage. Both components work together to enhance roof durability and prevent moisture infiltration at vulnerable junctions.
What is Step Flashing?
Step flashing is a series of metal pieces installed at roof-to-wall intersections to direct water away from seams and prevent leaks. Each piece overlaps the one below it and is integrated into the shingles and wall cladding for optimal waterproofing. Commonly made from materials like aluminum, copper, or galvanized steel, step flashing is essential for protecting vulnerable roof joints.
What is Counter Flashing?
Counter flashing is a protective metal layer installed over step flashing to seal and protect vertical surfaces such as walls or chimneys from water infiltration. It overlaps the step flashing and is embedded into the exterior wall, creating a waterproof barrier that directs water away from vulnerable roof junctions. Proper installation of counter flashing is essential for preventing leaks and extending the lifespan of roof flashing systems.
Key Differences Between Step Flashing and Counter Flashing
Step flashing consists of individual pieces of metal installed with each shingle course to direct water away from the roof-to-wall junction, ensuring effective waterproofing at vertical surfaces. Counter flashing is applied over step flashing or base flashing, embedded into the wall or chimney, and serves as the primary defense against water penetration by covering the step flashing seams. The key difference lies in their roles: step flashing manages water at the roofing layer intersection, while counter flashing provides an additional barrier embedded into the vertical structure to prevent leaks.
Materials Used in Step and Counter Flashing
Step flashing is typically made from durable materials such as aluminum, galvanized steel, or copper, chosen for their corrosion resistance and flexibility to conform to roof angles. Counter flashing often uses heavier gauge metals like copper or stainless steel to provide a watertight seal over step flashing and extend the lifespan against weather elements. Both materials are selected for their ability to prevent water infiltration, protect roof joints, and ensure long-term roof integrity.
Installation Process: Step Flashing vs Counter Flashing
Step flashing installation involves interweaving individual metal pieces between roof shingles and the vertical wall surface, ensuring water is directed away from joints. Counter flashing is installed over step flashing or base flashing, embedded into the wall or chimney to cover and protect the underlying flashing from water infiltration. Proper overlap and sealing during both step and counter flashing installation are crucial for long-term roof waterproofing efficiency.
Best Applications for Step Flashing
Step flashing is best suited for roof-to-wall intersections, providing a durable waterproof barrier where the roof meets vertical surfaces. It efficiently directs water away from the joint, making it ideal for chimneys, dormers, and sidewalls. Step flashing's individual pieces overlap with shingles, enhancing flexibility and ensuring reliable protection in areas with varying angles or multiple roof planes.
Best Applications for Counter Flashing
Counter flashing is best applied where roofing meets vertical surfaces such as chimneys, walls, or skylights to create a durable seal against water infiltration. Unlike step flashing, it is installed over the base flashing and embedded into mortar joints or secured with sealant to enhance weather resistance. This method excels in areas exposed to heavy rain and wind, providing superior protection in long-term roof maintenance.
Pros and Cons: Step Flashing vs Counter Flashing
Step flashing offers excellent water diversion at roof-wall joints, providing flexibility to adapt to irregular surfaces and easy installation during shingle replacement. Counter flashing, typically installed over step flashing, provides an additional protective layer, enhancing durability and resistance to water infiltration but requires more labor-intensive installation and precise masonry work. Combining both ensures maximum waterproofing, though step flashing alone is preferable for cost-effectiveness and ease of maintenance.
Choosing the Right Flashing for Your Roof
Step flashing consists of individual L-shaped pieces installed along roof-to-wall intersections, ensuring water is directed away from seams while providing durable protection. Counter flashing overlaps step flashing and is embedded into the wall, creating a watertight seal that prevents moisture intrusion behind roofing materials. Selecting the right combination of step and counter flashing depends on roof design, material compatibility, and exposure to weather elements to maximize long-term roof performance and prevent leaks.

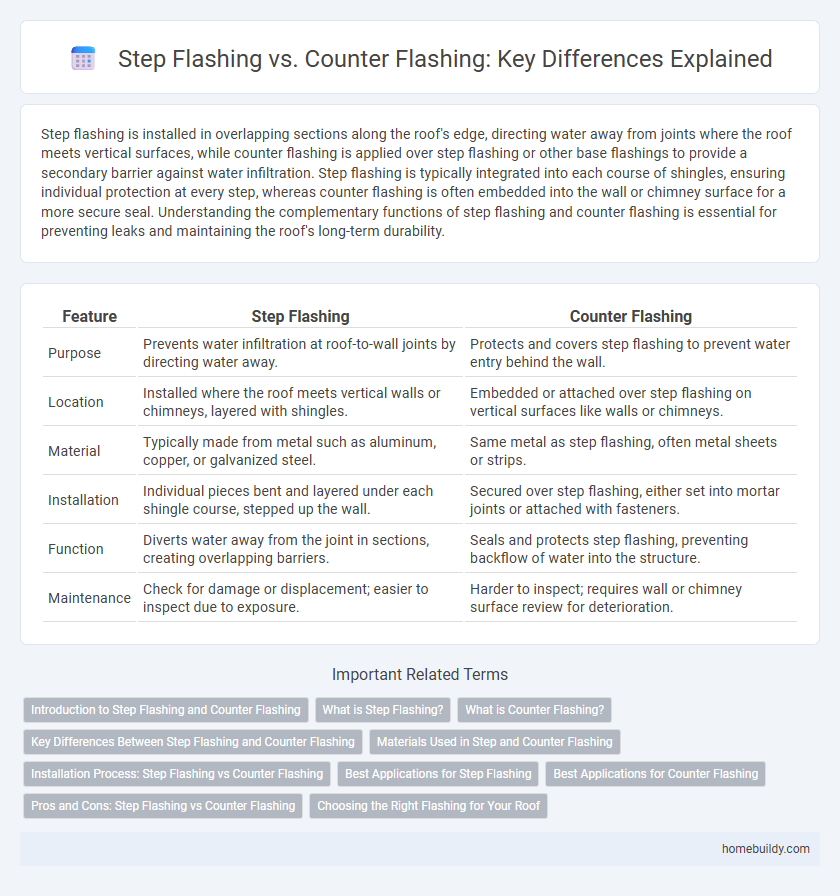

Step flashing vs counter flashing Infographic
