homebuildy.com Rebar splicing involves joining two reinforcing bars end-to-end to maintain structural continuity, commonly achieved through mechanical couplers or welding. Rebar lap joints overlap bars side-by-side over a specified length to transfer load via concrete adhesion and friction. Both techniques ensure reinforcement integrity but differ in application, load transfer efficiency, and constructability.
Table of Comparison
| Feature | Rebar Splicing | Rebar Lap Joint |
|---|---|---|
| Definition | Mechanical connection joining two rebars end-to-end using couplers. | Overlapping two rebars and binding them together to transfer load. |
| Load Transfer Efficiency | High efficiency, ensures full transfer of tension and compression forces. | Moderate efficiency, depends on lap length and concrete bond strength. |
| Space Requirement | Minimal space needed; suitable for congested reinforcement areas. | Requires extended lap length; increases reinforcement congestion. |
| Installation Time | Faster with mechanical couplers; labor-saving. | Labor-intensive; involves tying and positioning overlapped bars. |
| Cost | Higher initial material cost due to couplers. | Lower material cost; higher labor costs may apply. |
| Structural Performance | Consistent and predictable performance under dynamic loads. | Performance varies; relies on correct lap length and concrete quality. |
| Typical Applications | High-rise buildings, bridges, seismic zones. | Low to medium stress regions, simple constructions. |
Introduction to Rebar Connections: Splicing vs. Lap Joint
Rebar splicing creates a mechanical connection between two reinforcing bars to transfer load effectively, often using couplers or threaded sleeves for enhanced structural integrity. Rebar lap joint relies on overlapping bars and binding wire to provide a continuous path for tensile forces, commonly used in standard concrete construction for simplicity and cost efficiency. Understanding these connection methods is crucial for optimizing reinforcement design, ensuring adequate load transfer, and maintaining structural performance in concrete elements.
Key Differences Between Rebar Splicing and Lap Joints
Rebar splicing involves mechanical connectors or welding to create a continuous line of reinforcement, ensuring higher load transfer efficiency and structural integrity. Lap joints rely on overlapping rebar lengths with adequate overlap length to transfer stress through bond adhesion, commonly used for ease and cost-effectiveness in construction. Splicing techniques provide superior strength and are preferred in high-stress applications, while lap joints offer simplicity but may require longer overlap lengths to meet design specifications.
Structural Performance: Splicing versus Lap Joints
Rebar splicing provides superior structural performance by ensuring continuity of tensile forces through mechanical or welded couplers, which minimizes stress concentrations and potential weak points. In contrast, rebar lap joints rely on overlapping bars to transfer loads through bond strength in concrete, which can lead to increased congestion and potential reduction in structural efficiency. Using mechanical splices enhances seismic resistance and load transfer capabilities, making them preferable for critical structural applications requiring high performance.
Types of Rebar Splicing Methods
Rebar splicing methods primarily include mechanical splicing, welding, and lap splicing, each offering distinct advantages for structural integrity and load transfer. Mechanical splicing uses couplers to connect bars end-to-end, ensuring high tensile strength without increasing bar diameter, while welding fuses bars together but requires precise workmanship to avoid brittleness. Lap splicing overlaps rebars over a specified length, commonly used for standard reinforcement but may require increased concrete cover to mitigate corrosion risk.
Installation Process: Lap Joints vs. Mechanical Splicing
Rebar lap joints involve overlapping two bars by a specified length and tying them together, requiring precise alignment and proper tie wire placement to maintain structural integrity during concrete pouring. Mechanical splicing uses couplers to connect bars end-to-end, enabling faster installation with consistent strength and reduced congestion in congested areas. Choosing between lap joints and mechanical splicing impacts labor time, material usage, and overall project efficiency due to differing installation complexities and site conditions.
Cost Comparison: Rebar Splicing versus Lap Joints
Rebar splicing generally offers a cost advantage over lap joints by reducing the amount of steel overlap required, minimizing material usage and waste. Labor expenses are often lower with splicing due to faster installation times and less congested rebar layouts. While lap joints increase congestion and potential for defects, splicing provides a more efficient and economical solution for reinforced concrete construction.
Code Requirements and Standards
Rebar splicing and rebar lap joints must comply with standards such as ACI 318 and ASTM A706 to ensure structural integrity and load transfer efficiency. Code requirements specify minimum lap lengths, bar diameter ratios, and weld or mechanical splice specifications to prevent slippage or failure under stress. Proper adherence to these standards is critical for maintaining concrete reinforcement durability and overall safety in construction projects.
Durability and Corrosion Resistance
Rebar splicing provides superior durability compared to traditional rebar lap joints by ensuring a continuous mechanical connection that reduces stress concentrations and potential weak points. This technique minimizes corrosion risk by limiting overlapping length where moisture and chlorides can accumulate, enhancing the overall structural integrity. Properly executed splicing methods, such as mechanical couplers or welded joints, significantly extend the lifespan of reinforced concrete structures in corrosive environments.
Application Suitability: Selecting the Best Method
Rebar splicing is ideal for high-strength applications requiring seamless continuity and minimal structural disruption, commonly used in critical load-bearing elements like columns and beams. Rebar lap joints offer a cost-effective and straightforward solution suitable for less demanding structural sections, where ease of installation and material availability are prioritized. Evaluating factors such as load requirements, concrete cover, and site conditions guides the selection between splicing and lap joints for optimal structural performance.
Summary and Recommendations
Rebar splicing and rebar lap joints both serve to connect reinforcement bars in concrete structures but differ in technique and application. Rebar splicing offers higher structural integrity and is recommended for critical load-bearing elements, while lap joints are simpler and cost-effective for less demanding connections. Engineers should select splicing for seismic zones and heavy load areas, ensuring compliance with relevant building codes and standards for optimal safety and performance.

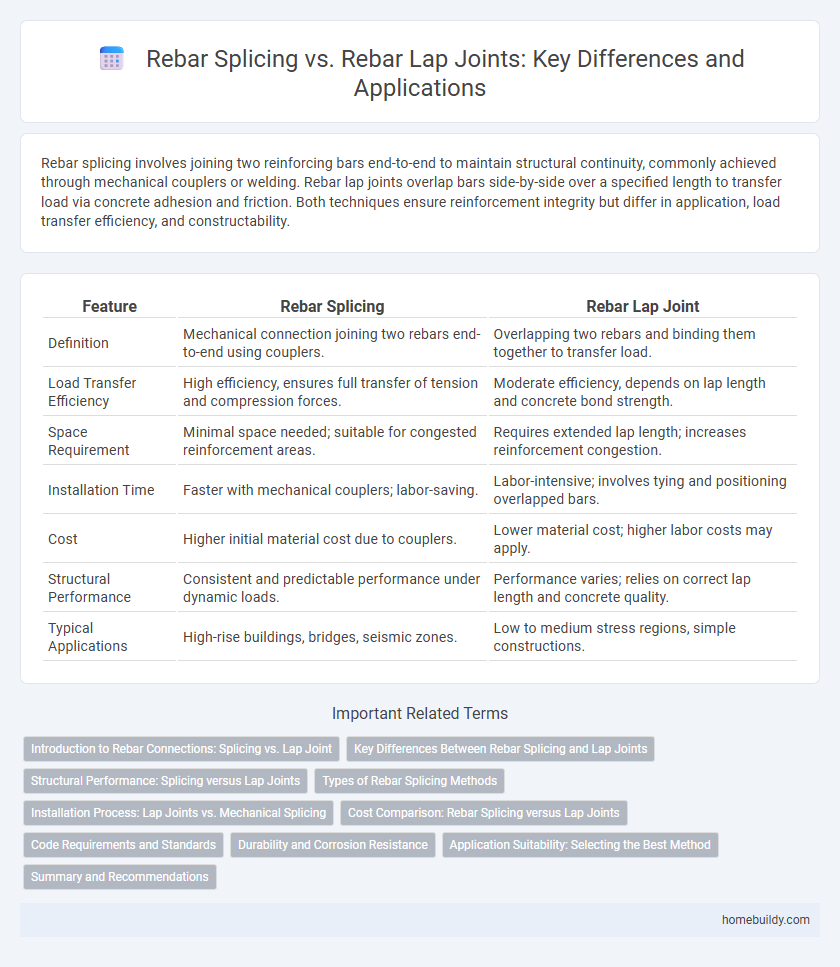

Rebar splicing vs Rebar lap joint Infographic
