homebuildy.com Rebar splicing involves joining two steel bars end-to-end using mechanical couplers or welding to ensure structural continuity, often preferred in areas with limited space. Rebar overlapping, also known as lap splicing, requires placing one bar over another for a specified length to transfer stress between them, which is simpler but may increase congestion in concrete. Choosing between splicing and overlapping depends on structural requirements, construction constraints, and load transfer efficiency.
Table of Comparison
| Aspect | Rebar Splicing | Rebar Overlapping |
|---|---|---|
| Definition | Connecting two rebars end-to-end using mechanical couplers or welding. | Placing two rebars side-by-side with a specified overlap length. |
| Strength Efficiency | Provides near 100% tensile strength transfer. | Strength depends on overlap length; typically 125x diameter. |
| Space Requirement | Requires minimal additional space due to compact couplers. | Requires significant extra length for proper overlap. |
| Installation Time | Faster with mechanical splicing; requires skilled labor for welding. | Simple and quick, no special equipment needed. |
| Cost | Higher due to couplers and specialized labor. | Lower material cost but more concrete volume due to longer length. |
| Application Suitability | Preferred in congested areas and seismic zones. | Common in routine construction with ample space. |
| Reliability | Consistent mechanical strength; quality controlled. | Dependent on correct lap length and concrete quality. |
Introduction to Rebar Splicing and Overlapping
Rebar splicing involves mechanically or thermally joining two reinforcing bars to create continuous reinforcement, enhancing structural integrity and load transfer. Overlapping, or lap splicing, is the most common method where two bars are placed end-to-end with a specified overlap length to ensure stress continuity without specialized connectors. Proper selection between rebar splicing and overlapping depends on factors such as load requirements, bar diameter, and construction feasibility.
Fundamental Differences Between Splicing and Overlapping
Rebar splicing involves connecting two steel bars end-to-end using mechanical couplers or welding to maintain structural continuity, while rebar overlapping relies on placing bars side-by-side with a specified lap length to transfer stress through direct contact. The fundamental difference lies in splicing providing a more reliable and compact connection with reduced congestion, whereas overlapping demands longer bar lengths and can cause congestion in dense reinforcement zones. Structural codes specify minimum lap lengths for overlapping, which vary based on bar diameter and concrete strength, whereas spliced joints must meet tensile strength requirements per standards like ACI or Eurocode.
Structural Integrity: Splicing vs Overlapping
Rebar splicing provides a mechanical or welded joint that ensures continuous load transfer across the concrete structure, enhancing overall structural integrity by minimizing weak points. Overlapping relies on the physical contact and friction between bars but may lead to stress concentrations and reduced bond efficiency under high loads. Properly engineered splicing is critical in seismic zones where structural continuity and ductility are paramount for safety and longevity.
Cost Comparison: Splicing vs Overlapping
Rebar splicing generally reduces material costs by requiring less steel overlap compared to traditional rebar overlapping methods, which involve doubling the length of bars at joints. Splicing techniques, such as mechanical couplers or welding, can lower labor expenses and minimize congestion in concrete, translating into faster installation and decreased project timelines. Overlapping, while simpler and cheaper in equipment, often results in higher steel consumption and additional labor, ultimately increasing overall project costs.
Installation Process and Labor Efficiency
Rebar splicing involves connecting steel bars using mechanical couplers, which simplifies installation by eliminating the need for extended lap lengths and reducing congestion at joints. This method significantly improves labor efficiency by speeding up onsite assembly and minimizing material waste compared to traditional rebar overlapping that requires careful alignment and increased handling time. Mechanical splicing also enhances structural consistency and reduces risks associated with improper lap splicing, leading to more reliable construction outcomes.
Material Consumption and Waste Reduction
Rebar splicing significantly reduces material consumption compared to rebar overlapping by eliminating the need for extra lengths of rebar to create overlaps, leading to cost-effective projects. Splicing techniques, such as mechanical couplers, minimize waste by ensuring precise alignment and secure connections without excess material. This efficient use of materials helps in reducing construction waste, thereby promoting sustainable building practices.
Applicability in Various Construction Scenarios
Rebar splicing and overlapping serve distinct roles in reinforcing concrete structures, with splicing often preferred in high-stress areas such as bridges and high-rise buildings due to its strong mechanical connection. Overlapping is commonly applied in simpler, low-load scenarios like residential construction and small-scale infrastructure where ease of installation prevails. Engineers select the method based on factors like structural load requirements, available space, and project budget, optimizing reinforcement integrity and construction efficiency.
Code Compliance and Industry Standards
Rebar splicing involves connecting two steel bars end-to-end using mechanical couplers or welds, ensuring compliance with ACI 318 and ASTM A615 standards for structural integrity and load transfer. Rebar overlapping, or lap splicing, requires bars to be overlapped for a specified length according to code-prescribed lap splice lengths, typically defined in the American Concrete Institute (ACI) and American Welding Society (AWS) guidelines to maintain tensile strength. Industry standards prioritize proper splice or overlap techniques to meet seismic reinforcement requirements and durability criteria, enhancing safety and structural performance in reinforced concrete construction.
Durability and Long-Term Performance
Rebar splicing ensures stronger load transfer and enhanced structural integrity by creating a continuous reinforcement connection, which significantly improves durability and long-term performance compared to simple rebar overlapping. Overlapping bars rely on friction and concrete bond, potentially leading to reduced strength and increased corrosion risk over time. Proper splicing techniques, such as mechanical couplers or welded splices, minimize weakness points and extend the lifespan of reinforced concrete structures.
Choosing the Right Method: Factors to Consider
Selecting between rebar splicing and rebar overlapping depends on structural load requirements, available space, and construction timeline. Rebar splicing offers stronger connections suitable for high-stress zones, while overlapping is simpler and cost-effective for less critical areas. Consider factors like concrete cover, bar diameter, and design codes to ensure compliance and durability.

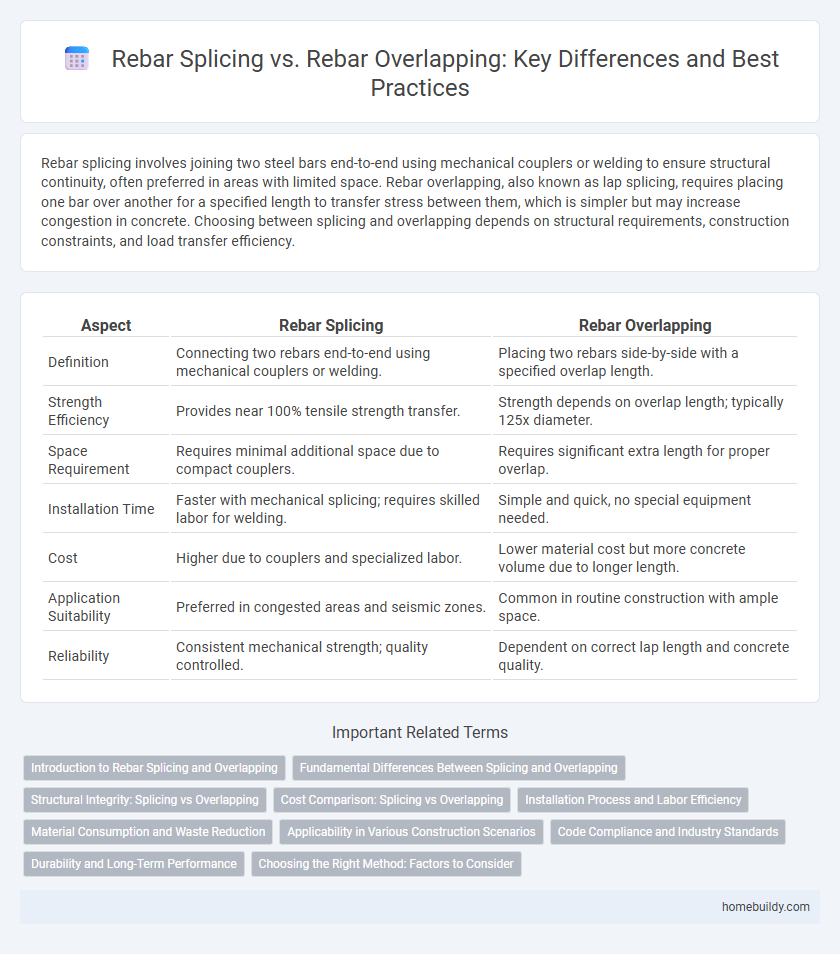

Rebar Splicing vs Rebar Overlapping Infographic
