homebuildy.com Pan flashing creates a waterproof barrier beneath windows or doors, directing water away from the structure to prevent leaks. Sill flashing specifically protects the bottom edge of window or door openings by channeling water outwards and preventing it from seeping into the framing. Both types are essential for effective moisture management and long-lasting building integrity.
Table of Comparison
| Feature | Pan Flashing | Sill Flashing |
|---|---|---|
| Definition | Flashing installed beneath window sills to direct water away | Flashing attached at the window or door sill to prevent water intrusion |
| Purpose | Protects window openings from water damage by channeling runoff | Seals and diverts water at door/window base to avoid leaks |
| Material | Metal, vinyl, or rubberized membranes | Metal, vinyl, rubberized membranes, or flexible flashing tape |
| Installation Location | Underneath window sills within wall assembly | Directly on window or door sill surface |
| Water Management | Channels water out and away from wall cavity | Blocks water entry at sill and directs flow outward |
| Common Use | Windows in masonry or framed walls | Doors and windows with exposed sills |
| Key Benefit | Prevents water damage below window openings | Ensures tight seal and water diversion at sill level |
Understanding Pan Flashing and Sill Flashing
Pan flashing is designed to direct water away from window and door openings, installed beneath the sill to prevent water infiltration and protect the building structure from moisture damage. Sill flashing, often integrated with pan flashing, specifically covers the horizontal bottom edge of the window or door frame, creating a waterproof barrier that enhances resistance to leaks. Both pan and sill flashing are essential components in a building's waterproofing system, ensuring long-term durability by managing water drainage effectively.
Key Differences Between Pan Flashing and Sill Flashing
Pan flashing is installed beneath windows and doors to direct water away from the building envelope, preventing moisture infiltration. Sill flashing, meanwhile, is specifically placed at the window sill to create a waterproof barrier that stops water from seeping into the wall assembly. The key difference lies in their placement and function: pan flashing covers the entire opening's bottom and sides for broad protection, while sill flashing targets the base to ensure effective drainage and seal integrity.
Importance of Proper Window Flashing
Proper window flashing prevents water infiltration and structural damage by directing moisture away from vulnerable areas. Pan flashing, installed at the window's base, channels water outward, while sill flashing provides an extra barrier at the bottom edge to stop water penetration. Correct installation of both pan and sill flashing is crucial for maintaining building envelope integrity and avoiding costly repairs.
Pan Flashing: Benefits and Drawbacks
Pan flashing provides excellent water diversion at window and door openings, preventing moisture infiltration and structural damage by directing water away from framing components. Its benefits include superior protection in horizontal applications and ease of installation with durable materials like aluminum or vinyl. However, pan flashing can be costly and requires precise sealing to avoid water backup, making it less suitable for complex or irregular surfaces compared to sill flashing.
Sill Flashing: Advantages and Limitations
Sill flashing provides critical protection by directing water away from window and door bottoms, reducing the risk of water intrusion and structural damage. It enhances building durability and energy efficiency by preventing moisture buildup in framing materials. However, improper installation or material incompatibility can lead to ineffective performance and potential water leaks.
Installation Techniques for Pan Flashing
Pan flashing installation requires precise placement beneath window sills and along the base of openings to channel water away from the structure effectively. The flashing must be securely integrated into the building envelope, overlapping existing weather barriers and sealed with high-quality waterproof membranes to prevent leaks. Properly installed pan flashing ensures enhanced moisture management compared to sill flashing, which primarily protects window edges without the comprehensive coverage pan flashing provides.
Best Practices for Sill Flashing Installation
Proper sill flashing installation involves using a continuous waterproof barrier along the bottom edge of windows or doors to prevent water infiltration and protect underlying structures. Best practices include overlapping the sill flashing over the pan flashing, ensuring tight seals around joints with high-quality sealants, and integrating it seamlessly with the building's weather-resistive barrier for maximum durability. Selecting materials like flexible self-adhered membranes or metal flashing designed for exposure improves long-term performance and eases maintenance.
Material Options for Pan and Sill Flashing
Pan flashing is commonly made from materials such as aluminum, copper, stainless steel, or vinyl, chosen for their durability and corrosion resistance in protecting window and door openings. Sill flashing typically utilizes similar materials, with an emphasis on flexible options like rubberized asphalt or self-adhered membranes to create a waterproof seal at the base of window sills. Both pan and sill flashing materials must ensure compatibility with the surrounding building envelope to effectively prevent water infiltration and enhance long-term performance.
Common Mistakes in Window Flashing Applications
Common mistakes in window flashing applications often involve improper installation of pan flashing and sill flashing, leading to water intrusion and damage. Pan flashing must be fully integrated with the window's opening and sealed to prevent water from pooling, while sill flashing should direct water away from the wall assembly to avoid rot. Failure to overlap these flashings correctly or using incompatible materials can compromise the window's waterproofing system and cause costly repairs.
Choosing Between Pan Flashing and Sill Flashing
Choosing between pan flashing and sill flashing depends on the specific application and location of water intrusion risks in a building. Pan flashing is optimal for window and door openings, creating a waterproof basin that directs water away from the rough opening to prevent seepage, while sill flashing is primarily used at the base of window sills to channel water outward and protect the wall assembly underneath. Prioritizing proper installation of the chosen flashing type ensures effective moisture management and extends the building envelope's durability.

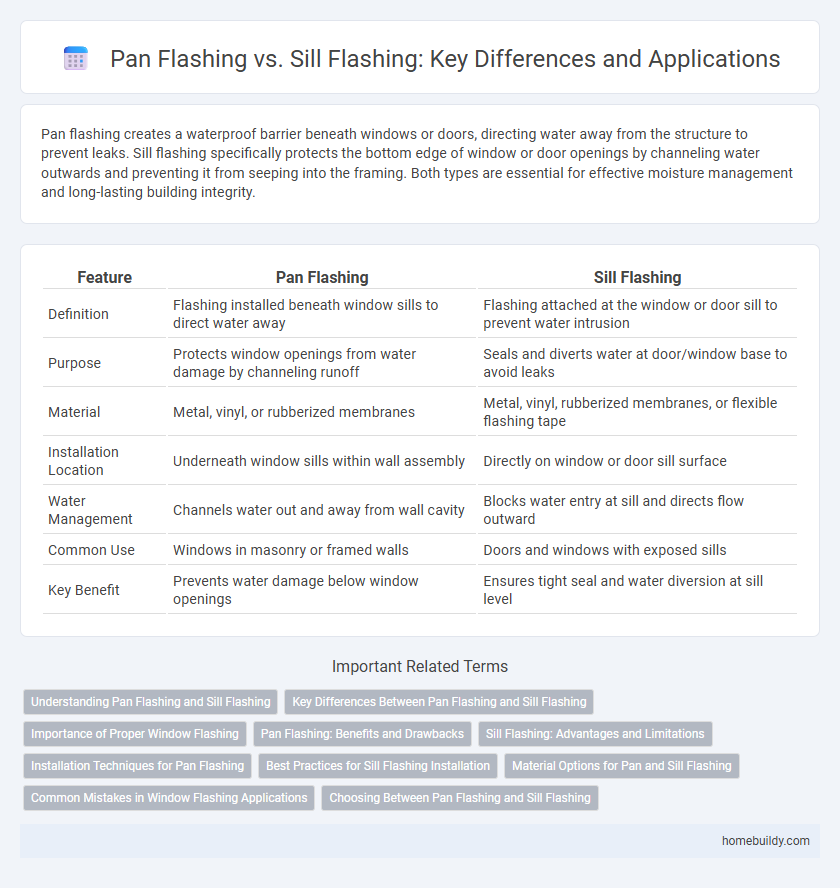

Pan flashing vs Sill flashing Infographic
