homebuildy.com A plumbing escutcheon is designed to cover pipe penetrations in walls or floors, providing a neat finish and preventing water damage or debris from entering the gaps around the pipes. In contrast, an electrical escutcheon serves to conceal the openings around electrical outlets or switches, ensuring safety by protecting wiring and enhancing aesthetic appeal. Both types of escutcheons are essential for maintaining clean, professional installations and safeguarding infrastructure in their respective applications.
Table of Comparison
| Feature | Plumbing Escutcheon | Electrical Escutcheon |
|---|---|---|
| Purpose | Conceals pipe penetrations, prevents water leaks | Covers electrical box openings, protects wiring |
| Material | Stainless steel, brass, plastic | Plastic, metal (steel or aluminum) |
| Design | Round or square with smooth edges | Rectangular or round, with openings for switches/outlets |
| Installation | Fits tightly around pipes, often slip-on or screw-mounted | Secured with screws to electrical boxes |
| Standards | Meets plumbing codes (e.g., IPC) | Complies with electrical codes (e.g., NEC) |
Introduction to Escutcheons: Plumbing vs Electrical
Escutcheons serve as protective and decorative covers around pipe or cable openings, with plumbing escutcheons designed to seal gaps around water pipes and prevent moisture damage, while electrical escutcheons cover junction boxes or outlet openings to ensure safety and a clean finish. Plumbing escutcheons are often made of corrosion-resistant metals or plastic to withstand moisture, whereas electrical escutcheons prioritize electrical insulation and may incorporate fire-resistant materials. Understanding the material and functional differences between plumbing and electrical escutcheons is essential for proper installation and long-lasting performance in building systems.
Defining Plumbing Escutcheon
A plumbing escutcheon is a decorative and protective plate installed around pipe penetrations in walls or floors to cover gaps and prevent debris from entering. Unlike electrical escutcheons that primarily conceal wiring and outlet openings, plumbing escutcheons are designed to accommodate varying pipe diameters and ensure a watertight seal. These components enhance aesthetic appeal while maintaining functionality and hygiene in bathrooms and kitchens.
Defining Electrical Escutcheon
Electrical escutcheons are protective and decorative plates designed to cover electrical outlets, switches, and junction boxes, preventing exposure to wiring and providing a finished appearance. Unlike plumbing escutcheons that are tailored to conceal pipe penetrations in walls or floors, electrical escutcheons specifically accommodate electrical components while ensuring compliance with safety standards. These escutcheons are typically made from durable materials such as plastic or metal, offering insulation and protection against accidental contact with live electrical parts.
Core Functions: Plumbing vs Electrical Escutcheons
Plumbing escutcheons seal and protect pipe penetrations in walls or floors, preventing water damage and maintaining a neat finish around faucets and showerheads. Electrical escutcheons cover and safeguard electrical junction boxes or outlets, ensuring safety by preventing accidental contact with wiring while providing a clean aesthetic. Both types enhance durability and safety but differ in materials and design tailored to their specific functional requirements.
Material Differences Between Plumbing and Electrical Escutcheons
Plumbing escutcheons are typically made from corrosion-resistant metals such as brass, stainless steel, or chrome-plated materials to withstand constant exposure to water and moisture. Electrical escutcheons, on the other hand, are often fabricated from insulating materials like plastic or non-conductive composites to ensure electrical safety and prevent short circuits. The material choice directly influences durability, functionality, and safety standards specific to plumbing versus electrical applications.
Installation Methods Compared
Plumbing escutcheons typically require secure sealing around pipe penetrations using plumber's putty or silicone caulk to prevent water leaks, often mounted with set screws or slip-on designs for easy access. Electrical escutcheons, however, are installed with screws or clips to cover outlet or switch openings, focusing on safety and aesthetic finish while allowing for wire access and compliance with electrical codes. The installation of plumbing escutcheons prioritizes waterproofing, whereas electrical escutcheons emphasize proper alignment and safe enclosure of wiring components.
Aesthetic and Functional Considerations
Plumbing escutcheons enhance aesthetic appeal by neatly covering pipe penetrations around sinks and toilets, preventing water damage and corrosion while providing a seamless finish. Electrical escutcheons focus on safety and accessibility by protecting wiring and outlets, ensuring compliance with electrical codes while maintaining a clean, organized appearance. Both types prioritize functional protection but differ in materials and design to suit either moisture-prone plumbing environments or electrical installations.
Common Applications for Each Type
Plumbing escutcheons are commonly used to conceal pipe penetrations around sinks, toilets, and showers, ensuring a clean and finished appearance while preventing water damage and mold growth. Electrical escutcheons are typically installed around electrical outlets, switches, and junction boxes to cover gaps, provide insulation, and improve safety by preventing accidental contact with wiring. Both types serve aesthetic and protective functions, but plumbing escutcheons focus on moisture control, whereas electrical escutcheons prioritize electrical safety and compliance with building codes.
Choosing the Right Escutcheon: Plumbing or Electrical
Plumbing escutcheons are designed to cover pipe penetrations in walls or floors, providing a clean finish while preventing moisture and debris infiltration, typically made from corrosion-resistant metals or plastic. Electrical escutcheons, on the other hand, serve to protect and conceal electrical wiring entry points, often incorporating features like snap-on covers or screw holes for junction boxes to ensure safety and compliance with electrical codes. Selecting the right escutcheon depends on the application environment, material compatibility, and specific functional requirements such as moisture resistance for plumbing or electrical insulation and grounding for electrical installations.
Maintenance and Troubleshooting Tips
Plumbing escutcheons require regular inspection for corrosion and leaks around pipe penetrations, with silicone sealant recommended to maintain a watertight seal and prevent water damage. Electrical escutcheons must be checked for secure mounting and insulation integrity to avoid electrical hazards or moisture ingress, with tightening screws and replacing damaged seals as essential maintenance steps. Troubleshooting involves identifying gaps or cracks in both types, which can lead to compromised safety or functionality, necessitating prompt replacement or resealing.

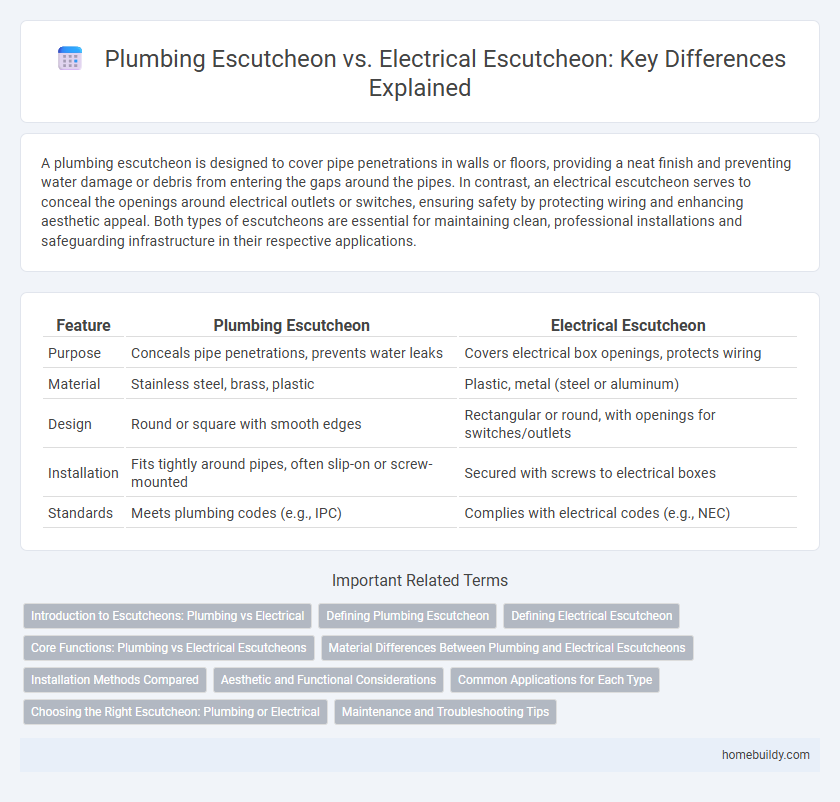

plumbing escutcheon vs electrical escutcheon Infographic
