homebuildy.com An escutcheon plate provides a decorative and protective cover around pipes where they pass through walls or floors, emphasizing aesthetic appeal and a flush finish. In contrast, a pipe collar offers a more robust sealing solution, often used to prevent water, smoke, or pests from penetrating gaps around pipes. Choosing between an escutcheon plate and a pipe collar depends on whether the priority is visual enhancement or functional sealing in plumbing and HVAC installations.
Table of Comparison
| Feature | Escutcheon Plate | Pipe Collar |
|---|---|---|
| Purpose | Covers wall openings around pipes for aesthetic finish | Protects and seals pipe penetrations to prevent dust and pests |
| Material | Metal, plastic, or brass | Metal, rubber, or plastic |
| Installation | Snaps or slides over pipe, mounted on wall surface | Fits tightly around pipe, often with sealing gasket |
| Functionality | Provides decorative coverage | Offers protective sealing and durability |
| Common Use | Bathroom, kitchen plumbing aesthetics | HVAC, plumbing pipe sealing |
| Cost | Generally lower price | Typically higher due to sealing features |
Introduction to Escutcheon Plates and Pipe Collars
Escutcheon plates and pipe collars both serve to cover pipe penetrations in walls and floors, enhancing aesthetics and preventing debris intrusion. Escutcheon plates are flat, decorative covers that fit around pipes for a sleek finish, often used in plumbing or heating installations. Pipe collars, by contrast, include a sleeve that encircles the pipe and seals the penetration, offering additional protection against fire and moisture.
Key Differences Between Escutcheon Plates and Pipe Collars
Escutcheon plates are decorative covers designed to conceal wall or floor penetrations made by pipes, offering a flat, often circular plate that fits snugly around the pipe, enhancing aesthetic appeal and preventing debris entry. Pipe collars, in contrast, provide a fire-resistant seal around pipes passing through fire-rated walls or floors, ensuring compliance with fire safety codes by expanding when exposed to heat to close gaps and prevent fire spread. The key differences lie in their primary functions: escutcheon plates focus on visual concealment and minor protective sealing, while pipe collars prioritize fire protection and regulatory compliance in building construction.
Functions of Escutcheon Plates
Escutcheon plates serve as protective and decorative covers that conceal the gap around pipes where they penetrate walls or floors, enhancing the aesthetic appeal and maintaining a clean finish. They also prevent dust, dirt, and pests from entering through gaps, contributing to sanitary and safety measures in plumbing installations. Unlike pipe collars, which primarily focus on fire-stopping and sealing, escutcheon plates emphasize visual concealment and basic protection around pipe entries.
Functions of Pipe Collars
Pipe collars primarily function as fireproofing devices, designed to prevent the spread of fire through openings around pipes in walls or floors by expanding to seal gaps during high temperatures. They also provide a protective barrier against drafts and moisture infiltration, contributing to improved energy efficiency and structural integrity. Unlike escutcheon plates, which mainly offer decorative covering and minor sealing around pipe penetrations, pipe collars focus on passive fire protection and safety compliance.
Materials Used for Escutcheon Plates and Pipe Collars
Escutcheon plates are commonly crafted from durable materials such as stainless steel, brass, or chrome-plated zinc alloy, offering corrosion resistance and aesthetic appeal. Pipe collars, by contrast, are often made from flexible materials like rubber or plastic, designed for sealing and concealing pipe penetrations with a snug fit. The choice of material directly affects the functionality and visual integration of escutcheon plates and pipe collars in plumbing and HVAC installations.
Installation Processes: Escutcheon Plate vs Pipe Collar
Escutcheon plates offer a straightforward installation process, typically requiring only a snug fit around the pipe and securing with minimal fasteners or adhesive, making them ideal for quick aesthetic finishing. Pipe collars demand more precise alignment and sometimes additional sealing materials to accommodate pipe movement, complicating the installation compared to escutcheon plates. The simplicity of escutcheon plate installation often reduces labor time and installation errors in both residential and commercial plumbing setups.
Aesthetic Considerations in Escutcheon Plates and Pipe Collars
Escutcheon plates provide a sleek, finished appearance by covering gaps and rough edges around pipes, enhancing the visual appeal of plumbing fixtures in both residential and commercial spaces. Pipe collars, while functional in concealing pipe penetrations, often have a bulkier design that can detract from minimalist or modern aesthetics. Selecting escutcheon plates with varied finishes and slim profiles offers greater versatility in design integration compared to typically utilitarian pipe collars.
Cost Comparison: Escutcheon Plate vs Pipe Collar
Escutcheon plates typically cost less than pipe collars due to simpler designs and lower material requirements, making them a budget-friendly option for covering pipe penetrations in walls or floors. Pipe collars, made from more durable materials and designed for high-temperature or fire-rated applications, often carry higher price tags reflecting their specialized construction. Choosing between an escutcheon plate and a pipe collar depends on balancing initial cost savings with the specific functional needs of the installation environment.
Applications and Use Cases
Escutcheon plates provide a finished look by covering pipe penetrations through walls or floors, primarily used in residential and commercial plumbing installations to conceal rough openings and protect the surface around the pipes. Pipe collars mainly serve as firestop devices by sealing around pipes to prevent fire and smoke spread in construction assemblies, making them essential in fire-rated wall and floor penetrations. While escutcheon plates focus on aesthetic and surface protection, pipe collars are critical for fire safety compliance in building code applications.
Choosing Between Escutcheon Plates and Pipe Collars
Escutcheon plates and pipe collars serve as essential finishing components in plumbing installations, each offering distinct advantages. Escutcheon plates provide a flat, decorative cover around pipes, ideal for smooth surfaces and tight spaces, while pipe collars encase the entire pipe circumference, offering greater protection and easier removal. Choosing between them depends on the installation environment, aesthetic preferences, and maintenance requirements to ensure optimal functionality and appearance.

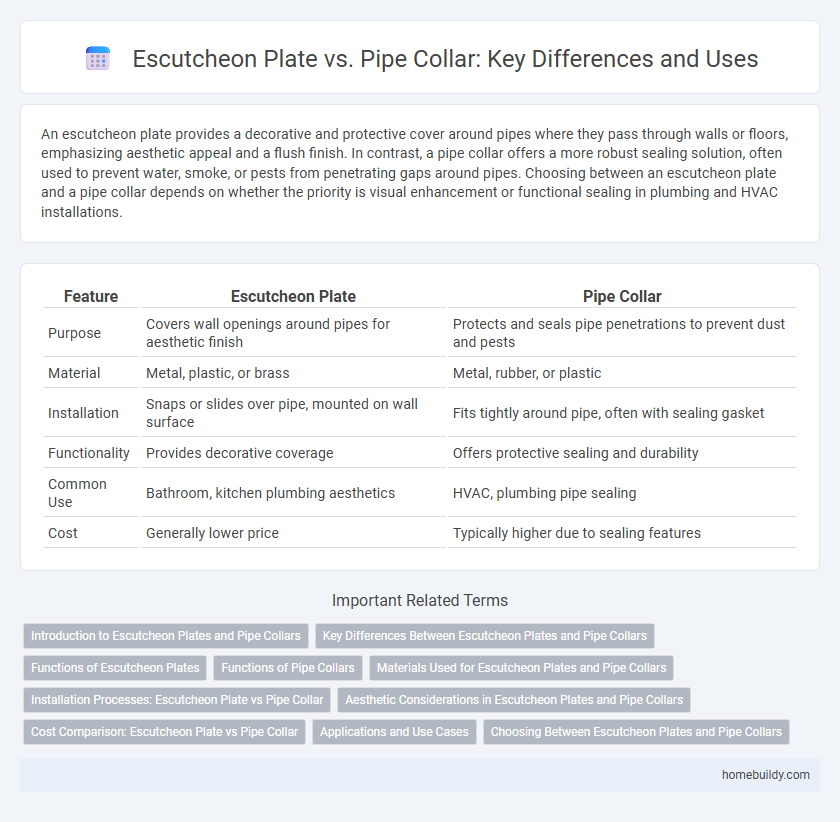

escutcheon plate vs pipe collar Infographic
