homebuildy.com Pivot hinges offer smooth rotational movement by allowing the door to pivot from a single point at the top and bottom, making them ideal for heavy or high-traffic doors. Butt hinges consist of two rectangular metal plates joined by a pin and are commonly used for standard interior and exterior doors due to their robust support and ease of installation. Choosing between pivot and butt hinges depends on door weight, swing style, and aesthetic preferences.
Table of Comparison
| Feature | Pivot Hinge | Butt Hinge |
|---|---|---|
| Installation | Mounted at top and bottom of door for pivot action | Mounted on door edge and frame for swinging motion |
| Door Movement | Swings 360deg, suitable for pivot doors | Swings up to 180deg, standard door movement |
| Load Capacity | High, supports heavy and large doors | Moderate, ideal for standard residential doors |
| Visibility | Mostly concealed inside door structure | Fully visible when door is closed |
| Maintenance | Low, fewer moving parts exposed | Moderate, may require lubrication |
| Applications | Commercial, high-traffic, heavy doors | Residential, interior, lighter doors |
| Cost | Higher due to complexity | Lower, widely available |
Introduction to Pivot Hinges and Butt Hinges
Pivot hinges rotate on a fixed pin installed at the top and bottom of a door, enabling smooth, space-saving operation ideal for heavy or pivoting doors. Butt hinges consist of two rectangular metal plates joined by a pin, commonly used for standard interior and exterior doors due to their durability and straightforward installation. Pivot hinges allow for a wider range of motion, while butt hinges provide strong support for traditional swinging doors.
What Are Pivot Hinges?
Pivot hinges are specialized door hinges that allow a door to rotate around a single point at the top and bottom, providing smooth and stable movement. Unlike traditional butt hinges, which are mounted on the door edge and frame, pivot hinges are installed within the door's thickness and floor or header, enabling doors to open both inward and outward. Pivot hinges are ideal for heavy or high-traffic doors, offering enhanced durability and a sleek, minimalist appearance.
What Are Butt Hinges?
Butt hinges are one of the most common types of door hinges, consisting of two rectangular metal plates connected by a pin, designed to be mortised into the door and frame for a flush fit. They provide strong support and smooth pivoting action, making them ideal for residential and commercial doors that require durability and frequent use. Unlike pivot hinges, which rotate around a single point and are often used for frameless doors, butt hinges are visible when the door is closed and are typically used in standard door installations.
Design Differences: Pivot vs Butt Hinges
Pivot hinges rotate around a fixed pin located at the top and bottom of the door, allowing for smooth, concealed movement and minimal visible hardware. Butt hinges consist of two rectangular plates joined by a pin, mounted on the edge of the door and frame, offering strong support but with more visible components. The design difference influences door aesthetics and installation, with pivot hinges providing a modern, streamlined look and butt hinges delivering traditional durability.
Installation Process: Pivot vs Butt Hinges
Pivot hinges install by embedding the pivot pin into the floor and top jamb, requiring precise alignment and preparation of the door and frame for smooth rotation. Butt hinges demand mortising the door edge and frame to recess the hinge leaves, which involves chiseling or routing for flush fitting and can be more time-consuming. The installation complexity of pivot hinges is higher due to structural modifications, while butt hinges are generally easier to fit during standard door hanging.
Weight Capacity and Door Size Compatibility
Pivot hinges offer superior weight capacity compared to butt hinges, supporting doors that weigh up to 500 pounds, making them ideal for heavy or oversized doors. Butt hinges generally accommodate lighter doors, typically up to 150 pounds, and are better suited for standard door sizes ranging from 24 to 36 inches wide. The pivot hinge's design distributes weight more efficiently, allowing for larger door dimensions without compromising stability or functionality.
Aesthetic Considerations for Interior Design
Pivot hinges offer a sleek, minimalist appearance by enabling doors to rotate around a single point, creating clean lines that enhance modern interior designs. Butt hinges, with their more traditional and visible plates, tend to complement classic or rustic aesthetics but can appear bulky in minimalist settings. Selecting between pivot and butt hinges impacts the door's visual integration, influencing the overall harmony and style of interior spaces.
Durability and Maintenance Comparison
Pivot hinges offer superior durability due to their centralized load-bearing mechanism, reducing wear on door frames and hinges over time. Butt hinges, while easier to install, typically require more frequent maintenance because their placement on the door edge exposes them to higher stress and potential misalignment. Choosing pivot hinges enhances long-term performance and minimizes upkeep in high-traffic or heavy door applications.
Cost Comparison: Pivot Hinges vs Butt Hinges
Pivot hinges typically cost more than butt hinges due to their complex installation and robust design suited for heavy or specialty doors. Butt hinges are more affordable and widely available, making them a popular choice for standard interior and exterior doors. Budget-conscious projects often favor butt hinges, while pivot hinges are chosen for architectural aesthetics and durability despite their higher price.
Choosing the Right Hinge for Your Door Application
Pivot hinges offer a sleek, modern look with smooth rotational movement, ideal for heavy or tall doors requiring a clean aesthetic and minimal visible hardware. Butt hinges are versatile and durable, commonly used in traditional door applications where strong support and ease of installation are essential. Selecting the right hinge depends on door weight, material, desired appearance, and frequency of use, ensuring optimal functionality and longevity.

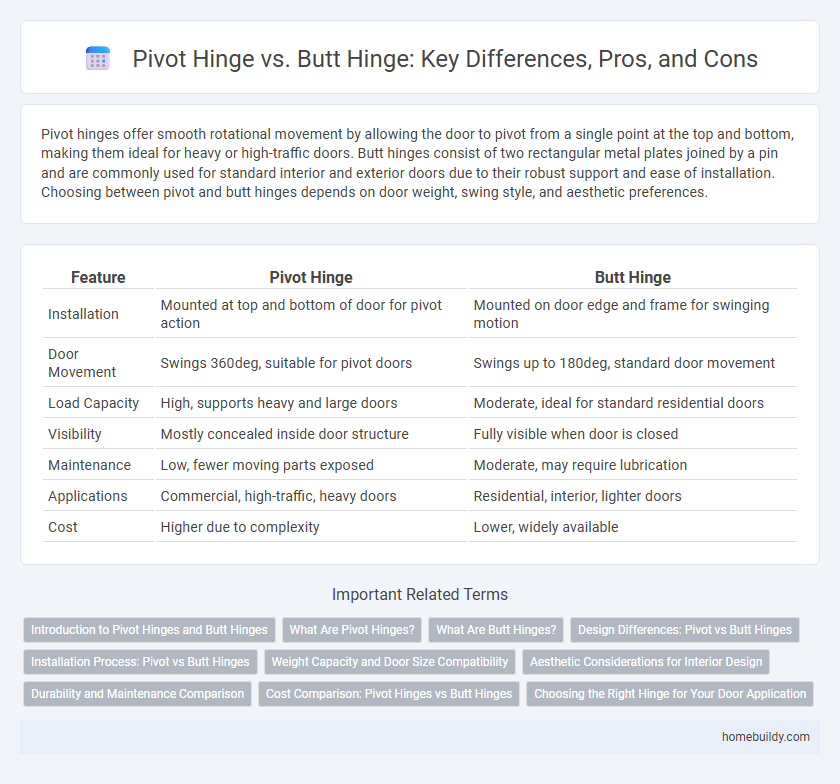

pivot hinge vs butt hinge Infographic
